2PX/2PY
1-5-88
1-5-12 Others
(1)
Detaching an
d refitting the paper conveying unit
Procedure
1.
Open the rear cover
.
2.
Remove left and right strap
s.

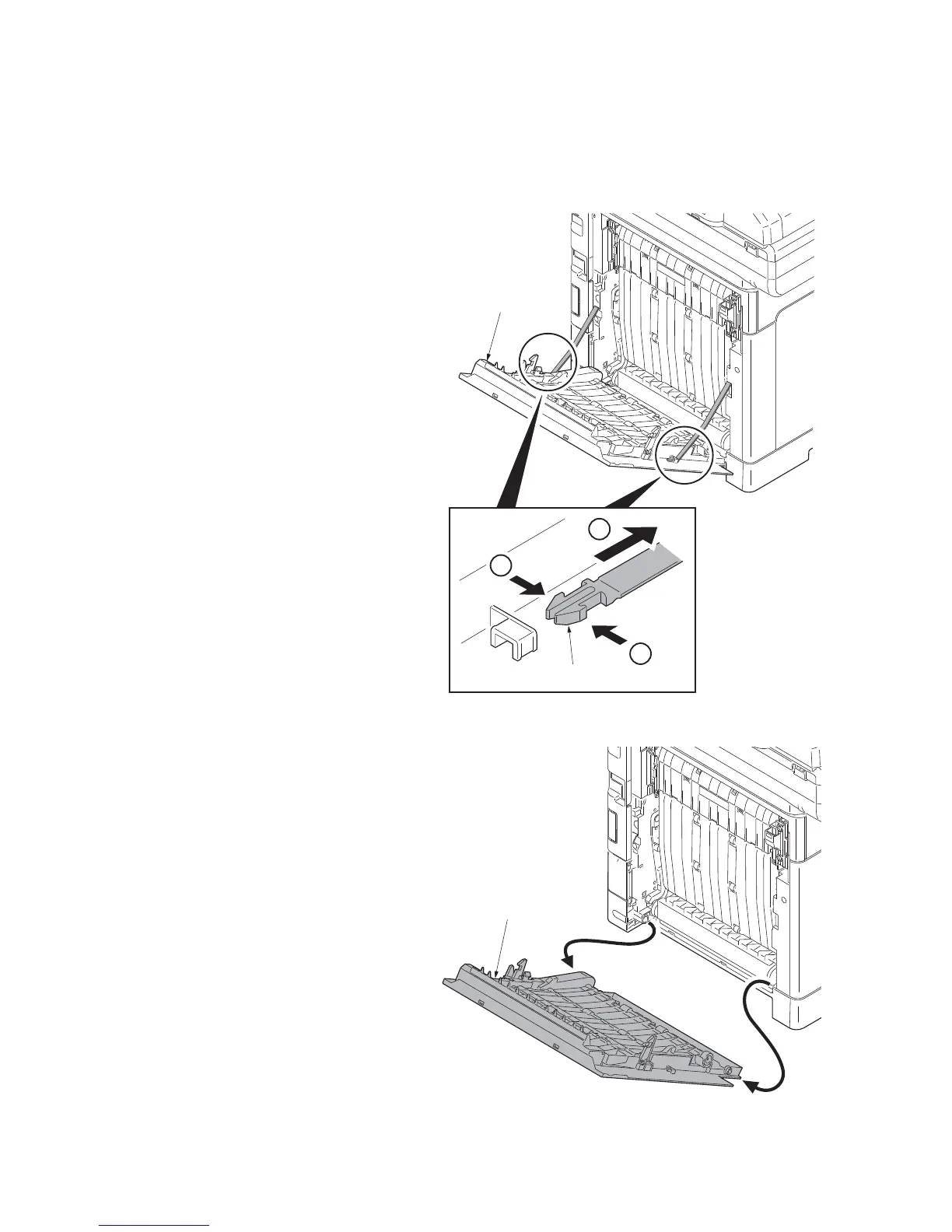

Figure 1-5-143
3.
Remove the rear cover unit.
Figure 1-5-144
Rear cover
Strap
1
1
2
Rear cover unit
273
