Section 9 TROUBLESHOOTING
9-4
(1) Cautions
• Do not reuse misfed paper.
• If paper is torn during removal, be sure to remove all loose scraps
from inside the copier, or they could cause misfeed later.
• After misfed paper has been removed, warm-up will begin. The
Misfeed indicator will turn off and the copier will return to the same
settings prior to the misfeed.

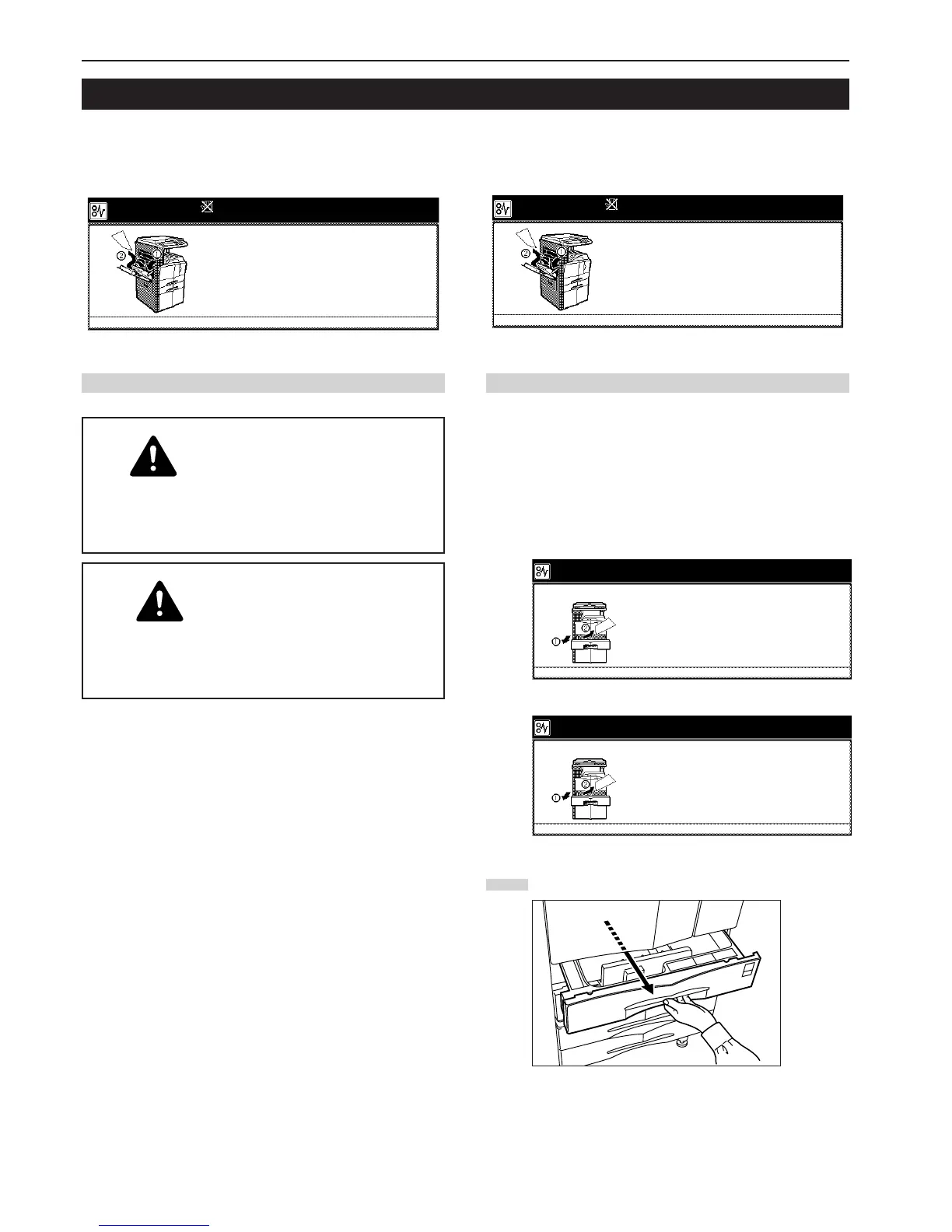

3. When paper misfeeds
If a paper misfeed occurs, a message will be displayed in the touch panel about the misfeed and copying will stop. Leave the main power switch ON
( | ) and refer to “(2) Removal procedures” to remove the jammed paper.
Paper misfeed. Careful for Drum.
1. Open left cover1.
2. Remove paper.
3. Close cover.
JAM 30
1. Open left cover1.
2. Remove paper.
3. Close cover.
JAM 30
Paper misfeed. Careful for Drum.
Inch specification Metric specification
WARNING
High voltage is present in the charger section. Take
sufficient care when working in this area, as there is
a danger of electrical shock.
CAUTION
The copier’s fixing unit is extremely hot. Take
sufficient care when working in this area, as there is
a danger of getting burned.
(2) Removal procedures
11
11
1 Misfeed in paper feed section
• Misfeed in drawer[cassette] (JAM 10 to 13, 15 to 17)
If the message below appears, a misfeed has occurred in the
drawer[cassette] (or optional Paper Feeder). Remove the misfed
paper using the procedure given below.
Inch specifications
Paper misfeed.
1. Open cassette1.
2. Remove paper.
3. Set cassette.
JAM 10
Paper misfeed.
1. Open cassette1.
2. Remove paper.
3. Set cassette.
JAM 10
1
Open the drawer[cassette].
To Next Page
