Leica GS16 User Manual

GS14/GS16, Safety Directions
15

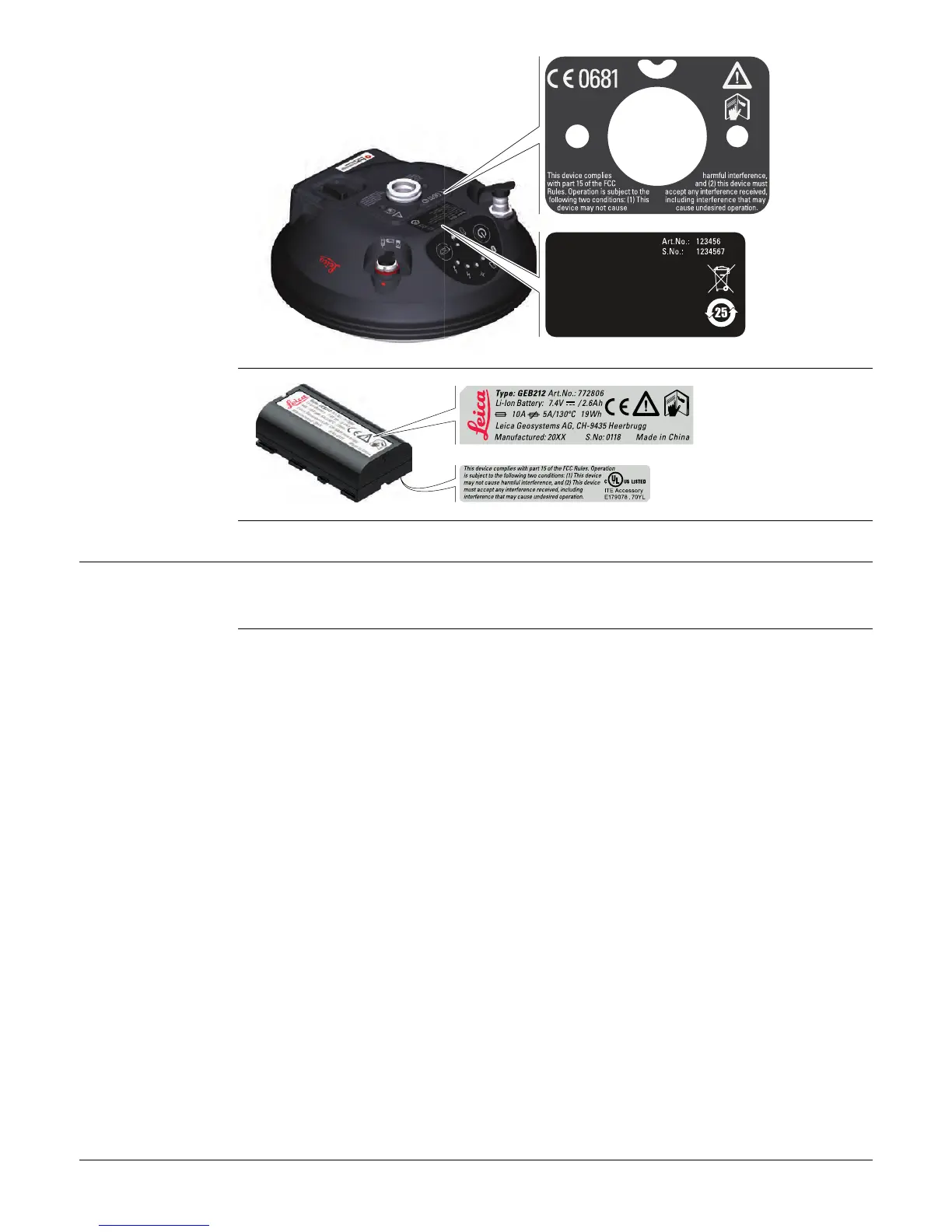

Labelling GS16
Labelling internal
battery GEB212
1.8 ICES-003 Statement, Applicable in Canada

WARNING
This Class (B) digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe (B) est conforme à la norme NMB-003 du Canada.
Model: GS16
Equip. No.:12345678
Leica Geosystems AG, CH-9435 Heerbrugg
Manufactured: 20XX, Made in Switzerland
Power: 12V nominal / 700 mA max.
Contains: FCC ID IC
Q2331308 / 6850A-31308
QIPPHS8-P / 7830A-PHS8P
0012204_001
005044_001

Leica GS16 Specifications

General

Channels	555
GNSS Supported	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Operating Temperature	-40°C to +65°C
Battery Life	Up to 10 hours
RTK Accuracy (Horizontal)	8 mm + 1 ppm
RTK Accuracy (Vertical)	15 mm + 1 ppm
Dust and Water Protection	IP68
Static Accuracy (Horizontal)	3 mm + 0.5 ppm
Static Accuracy (Vertical)	5 mm + 0.5 ppm
Data Logging Rate	20 Hz
Communication	Bluetooth
