GS14/GS16, Operation
45
4.5 LED Indicators on GS14/GS16
LED Indicators Description
The GS14/GS16 GNSS instrument has Light Emitting Diode indicators. They indicate
the basic instrument status.

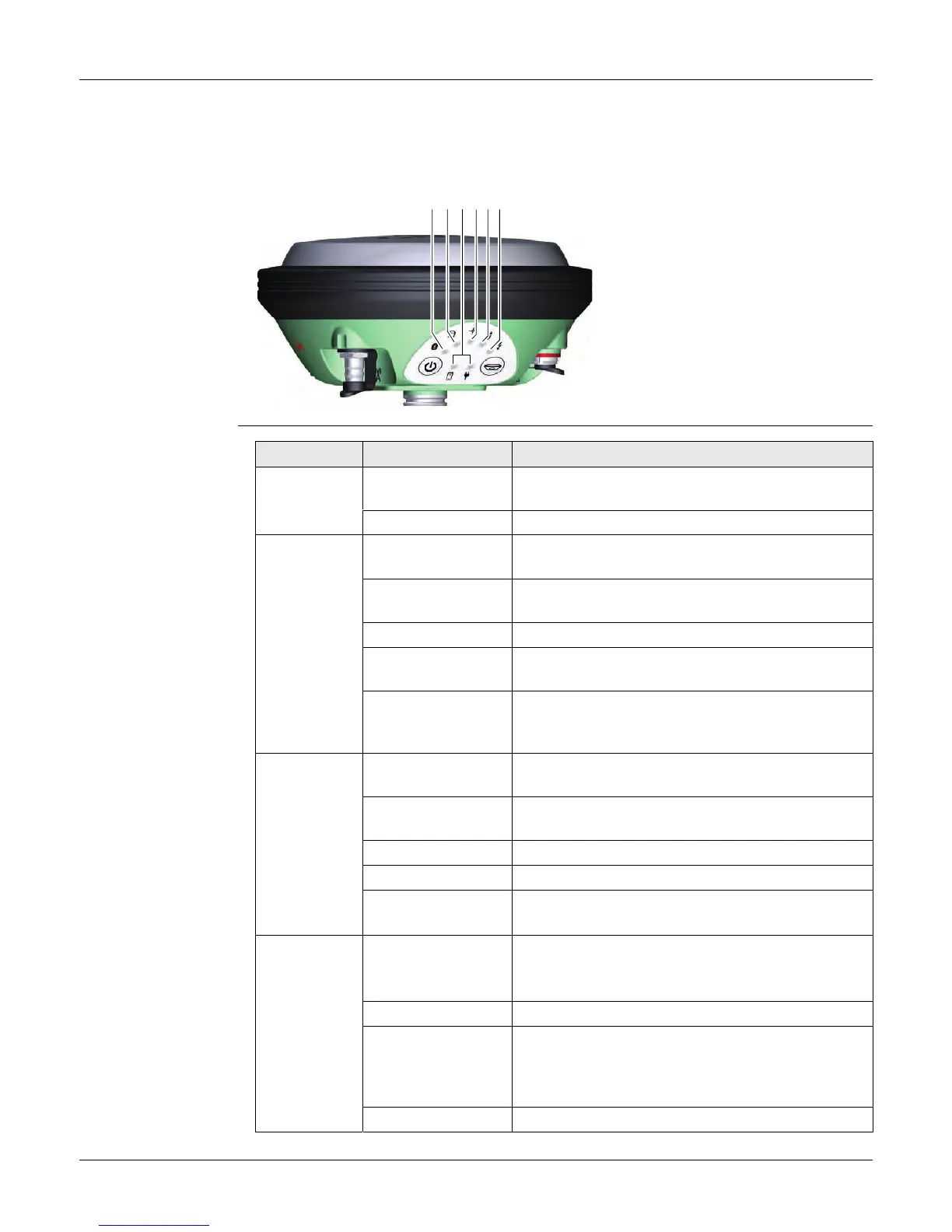

Diagram
Description of the
LEDs
a) Bluetooth LED
b) Storage LED
c) Power LEDs
d) Position LED
e) RTK Base LED
f) RTK Rover LED
008657_001
abcd
e
f
IF the is THEN
Bluetooth
LED
green Bluetooth is in data mode and ready for
connecting.
blue Bluetooth has connected.
Storage LED off no microSD card is inserted or GS14/GS16 is
switched off.
green microSD card is inserted but no raw data is being
logged.
flashing green raw data is being logged.
flashing red raw data is being logged but only 5% memory
left.
red microSD card is full, no raw data is being logged
or no microSD card is inserted but GS14/GS16 is
configured to log raw data.
Position LED off no satellites are tracked or GS14/GS16 is
switched off.
flashing yellow less than four satellites are tracked, a position is
not yet available.
yellow a navigated position is available.
flashing green a code-only position is available.
green a fixed RTK position is available.
SmartLink is converging or has converged.
Power LED
(active
battery
*1
)
off battery is not connected, flat or GS14/GS16 is
switched off.
green power is 20% - 100%.
red power is 5% - 20%. The remaining time for which
enough power is available depends on the type of
survey, the temperature and the age of the
battery.
fast flashing red power is low (<5%).
