GS14/GS16, Operation
35
Equipment setup
step-by-step

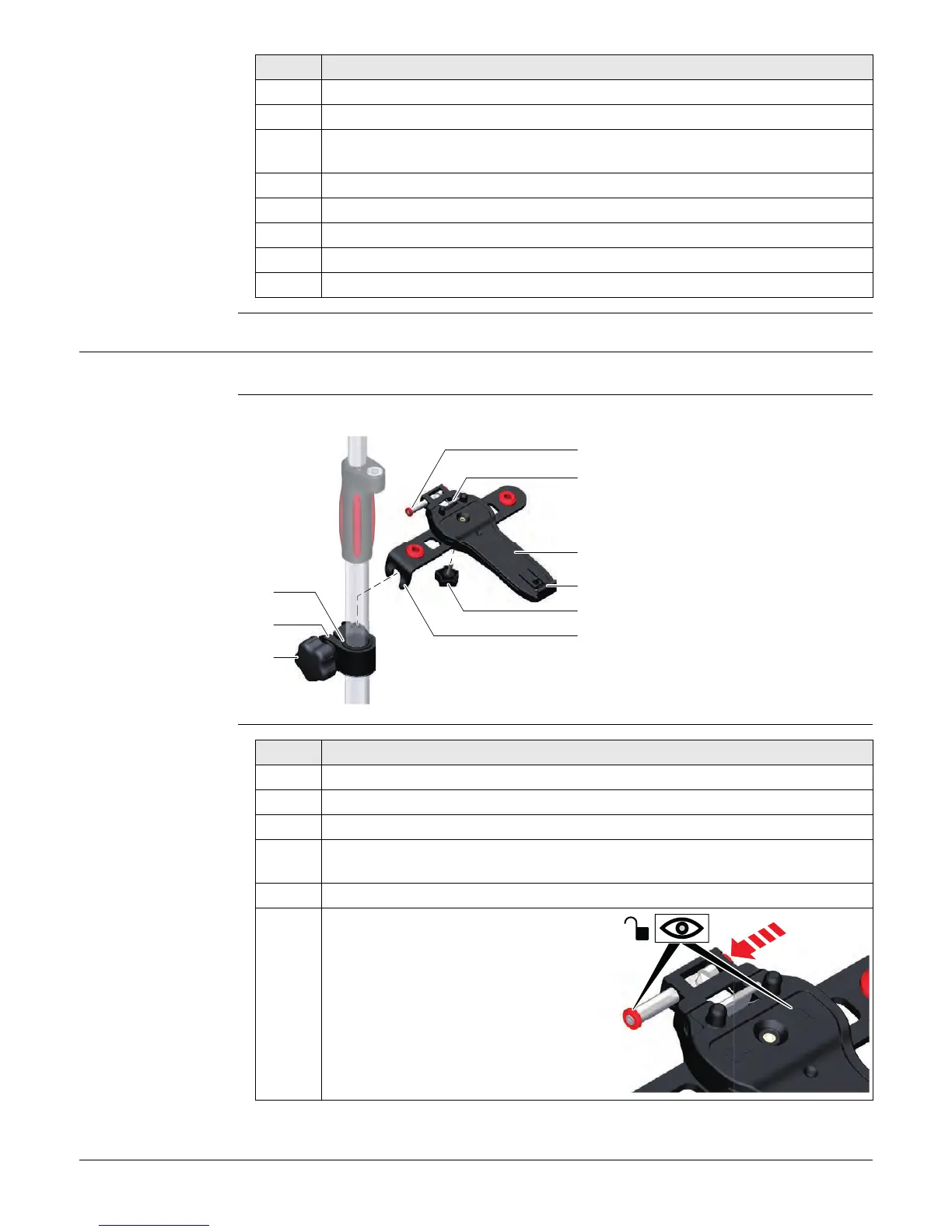

4.1.4 Fixing the Field Controller to a Holder and Pole
This chapter is valid for all holders.
Components of the
GHT66 Holder
The GHT66 holder consists of the following components:
Fixing the Field
Controller and
GHT66 to a Pole
Step-by-step
Step Description
1. Attach the GHT62 for CS15 or the GHT66 for CS20 holder to the pole.
2. Insert the data storage device and the battery into the field controller.
3. Clip the field controller into the holder and lock it by pushing the locking pin
into the locked position.
4. Press ON/OFF button on the field controller to switch on.
5. Insert the data storage device and the batteries into the GS14/GS16.
6. Press ON/OFF button on the GS14/GS16 to switch on.
7. Screw the GS14/GS16 to the top of the pole.
8. The field controller and GS14/GS16 are connected via Bluetooth.
GHT63 clamp
a) Plastic sleeve
b) Pole clamp
c) Clamp bolt
GHT66 holder
d) Locking pin
e) Top clip
f) Mounting plate
g) Bottom clip
h) Tightening screw
i) Mounting arm
008545_001
a
b
c
f
d
e
g
h
i
Step Description
For an aluminium pole, fit the plastic sleeve to the pole clamp.
1. Insert the pole into the clamp hole.
2. Attach the holder to the clamp using the clamp bolt.
3. Adjust the angle and the height of the holder on the pole to a comfortable
position.
4. Tighten the clamp with the clamp bolt.
5. Before placing the CS field
controller onto the mounting
plate, ensure that the locking pin
is put into the unlocked position.
To unlock the locking pin, push
the locking pin to the left.
008546_001
