Lenovo Legion Pro 5 16IRX8 User Manual

Screw specifications Number of screws
M2 × L4.0 4
M2 × L11.8 6
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
Lower case

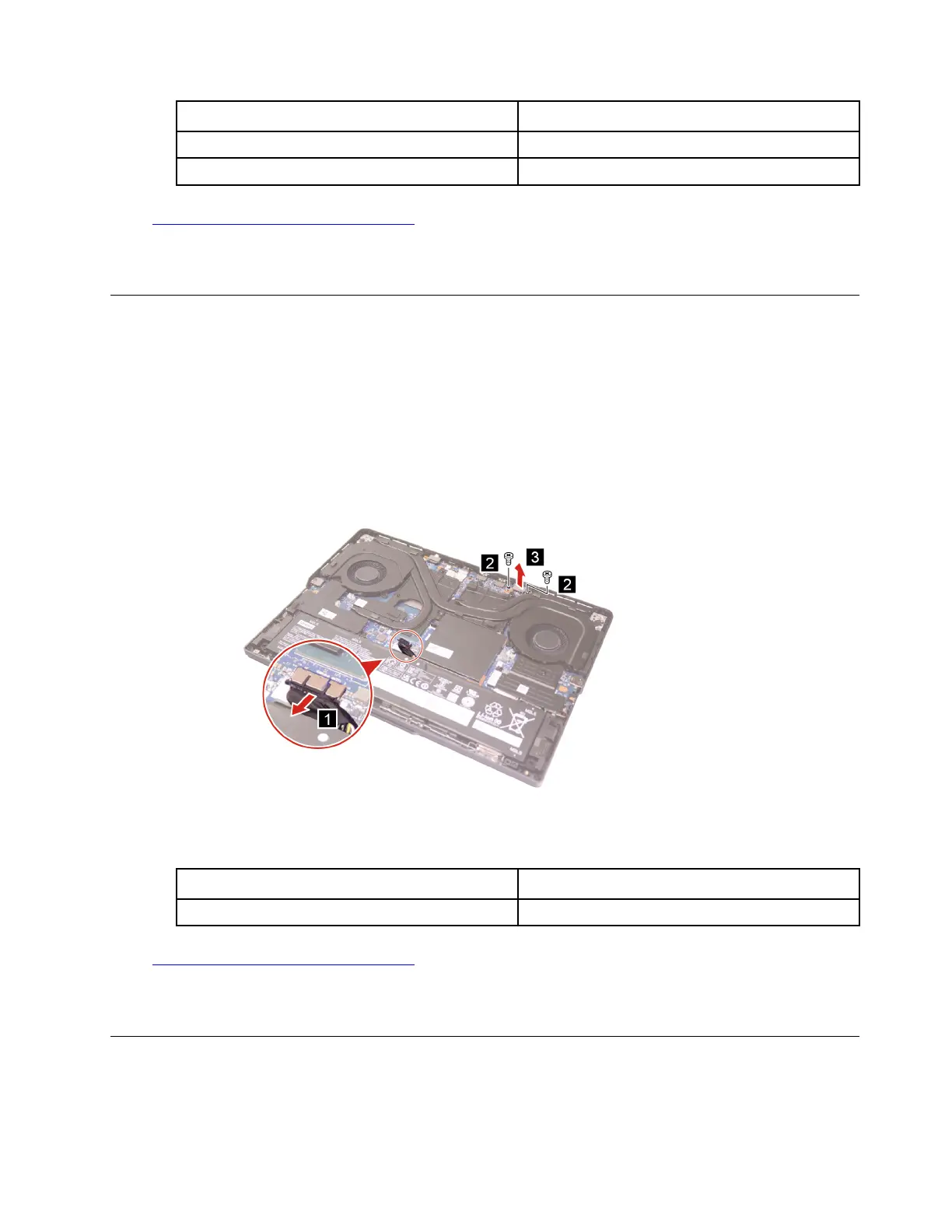

Remove the DC-in bracket
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board. Remove two screws and then remove
the DC-in bracket.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Figure 4. Remove the DC-in bracket
Screw specifications
Number of screws
M2 × L6.0 2
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
DC-in bracket
Remove the memory shielding
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
Chapter 4. Removing a FRU or CRU 29

Lenovo Legion Pro 5 16IRX8 Specifications

General

Battery	80Wh
Wireless	Wi-Fi 6E, Bluetooth 5.1
Processor	Up to Intel Core i9-13900HX
Graphics	NVIDIA GeForce RTX 4070
Display	16" WQXGA (2560x1600)
RAM	Up to 32GB DDR5
Operating System	Windows 11 Pro
Weight	2.5 kg
Audio	2 x 2W Harman Speakers, Nahimic Audio
Ports	3x USB-A, 1x HDMI 2.1, 1x RJ45, 1x 3.5mm audio jack
