The Golden Key U1 tool is prepared by running the U1 Update software on a FAT32-formatted USB thumb
drive. Go to
http://support.lenovo.com/us/en/solutions/HT506954 for detailed instructions on how to create
and use a Goldern Key U1 tool.
Remove the strip cover
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the left SSD bracket” on page 31
“Remove the right SSD bracket” on page 35
“Remove the thermal module” on page 40
Step 1. Remove six screws. Then, push to open the latches in the direction as shown.

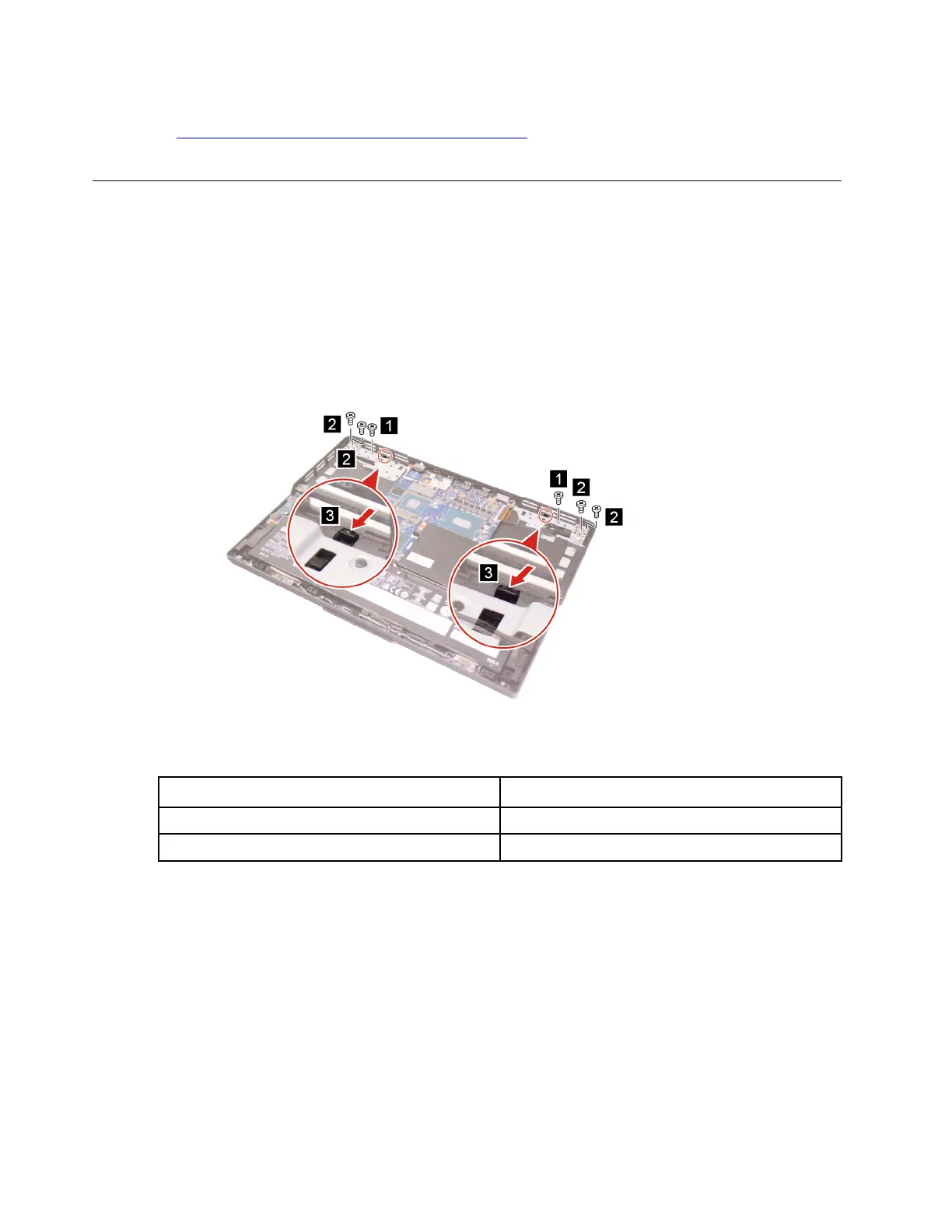

Figure 28. Remove six screws and open the latches
Screw specifications
Number of screws
M 2.5 × L7 2
M1.6 × L2.5 4
Step 2. Remove the strip cover.
48
Lenovo Legion Pro 5i (16″, 8) and Lenovo Legion Pro 5 (16″, 8) Hardware Maintenance Manual

Lenovo Legion Pro 5 16IRX8 Specifications

General

Battery	80Wh
Wireless	Wi-Fi 6E, Bluetooth 5.1
Processor	Up to Intel Core i9-13900HX
Graphics	NVIDIA GeForce RTX 4070
Display	16" WQXGA (2560x1600)
RAM	Up to 32GB DDR5
Operating System	Windows 11 Pro
Weight	2.5 kg
Audio	2 x 2W Harman Speakers, Nahimic Audio
Ports	3x USB-A, 1x HDMI 2.1, 1x RJ45, 1x 3.5mm audio jack
