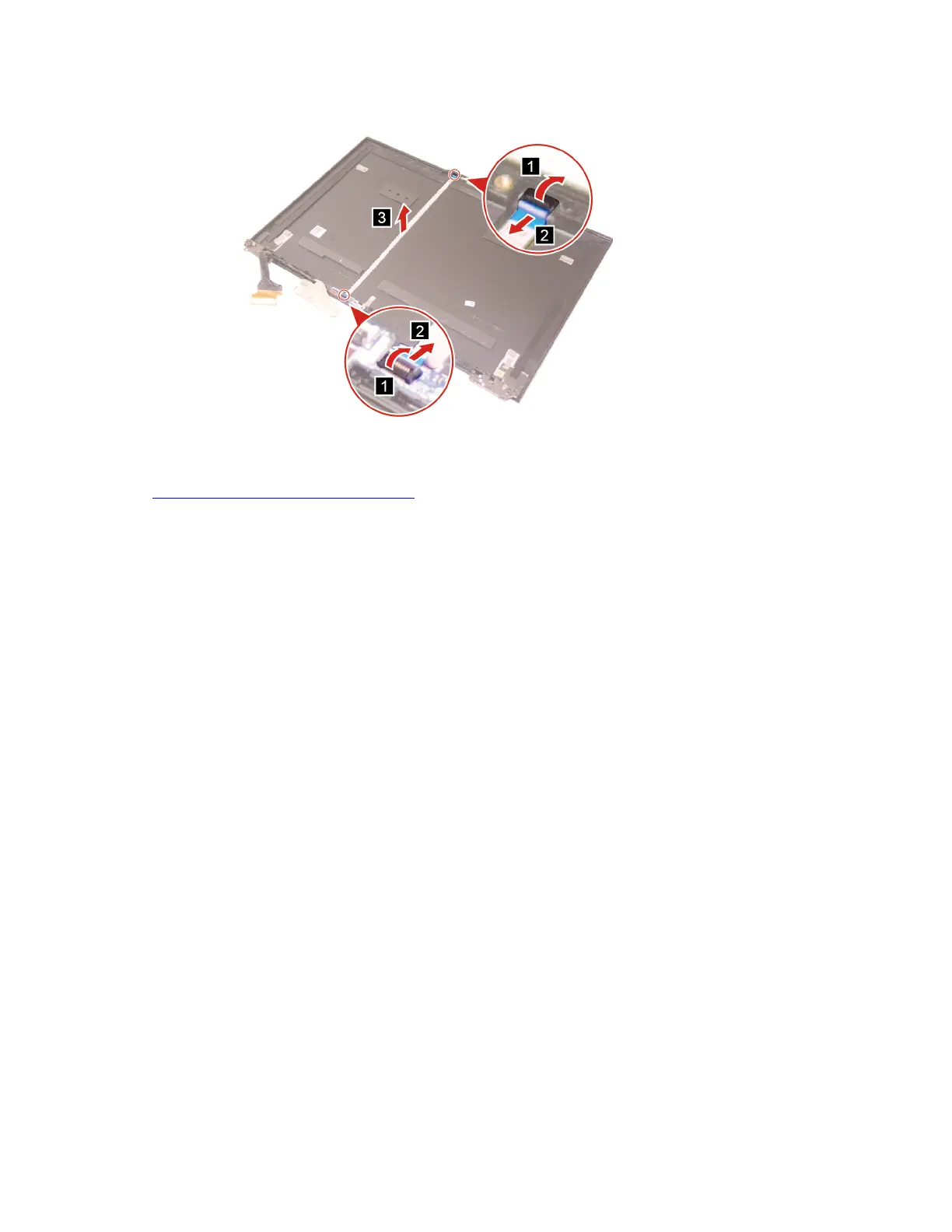

Figure 41. Disconnect and remove the camera cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
Camera cable
Remove the sensor board
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the LCD unit” on page 49
“Remove the hinge cover” on page 52
“Remove the LCD bezel” on page 52
“Remove the camera bracket” on page 53
“Remove the LCD panel” on page 54
Step 1. Disconnect the camera cable and EDP cable from the sensor board. Then, remove the sensor
board.
Chapter 4. Removing a FRU or CRU 59

Lenovo Legion Pro 5 16IRX8 Specifications

General

Battery	80Wh
Wireless	Wi-Fi 6E, Bluetooth 5.1
Processor	Up to Intel Core i9-13900HX
Graphics	NVIDIA GeForce RTX 4070
Display	16" WQXGA (2560x1600)
RAM	Up to 32GB DDR5
Operating System	Windows 11 Pro
Weight	2.5 kg
Audio	2 x 2W Harman Speakers, Nahimic Audio
Ports	3x USB-A, 1x HDMI 2.1, 1x RJ45, 1x 3.5mm audio jack
