Lenovo Legion Pro 5 16IRX8 User Manual

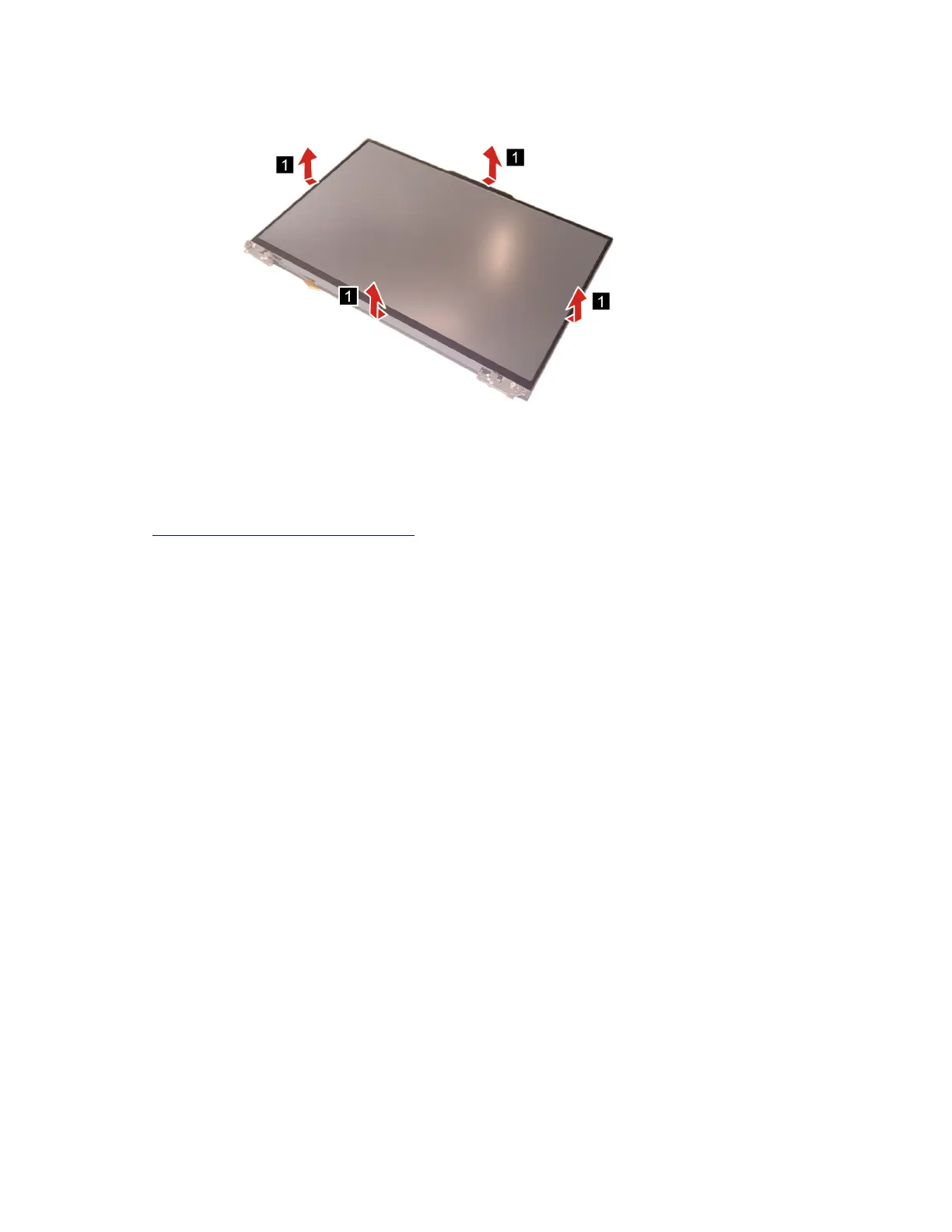

Figure 34. Remove the LCD bezel
Note: The LCD bezel is fragile and should be replaced if damaged.
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
LCD bezel
Remove the camera bracket
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the LCD unit” on page 49
“Remove the hinge cover” on page 52
“Remove the LCD bezel” on page 52
Step 1. Remove two screws and then remove the camera bracket.
Chapter 4. Removing a FRU or CRU 53

Lenovo Legion Pro 5 16IRX8 Specifications

General

Battery	80Wh
Wireless	Wi-Fi 6E, Bluetooth 5.1
Processor	Up to Intel Core i9-13900HX
Graphics	NVIDIA GeForce RTX 4070
Display	16" WQXGA (2560x1600)
RAM	Up to 32GB DDR5
Operating System	Windows 11 Pro
Weight	2.5 kg
Audio	2 x 2W Harman Speakers, Nahimic Audio
Ports	3x USB-A, 1x HDMI 2.1, 1x RJ45, 1x 3.5mm audio jack
