Lenovo Legion Pro 5 16IRX8 User Manual

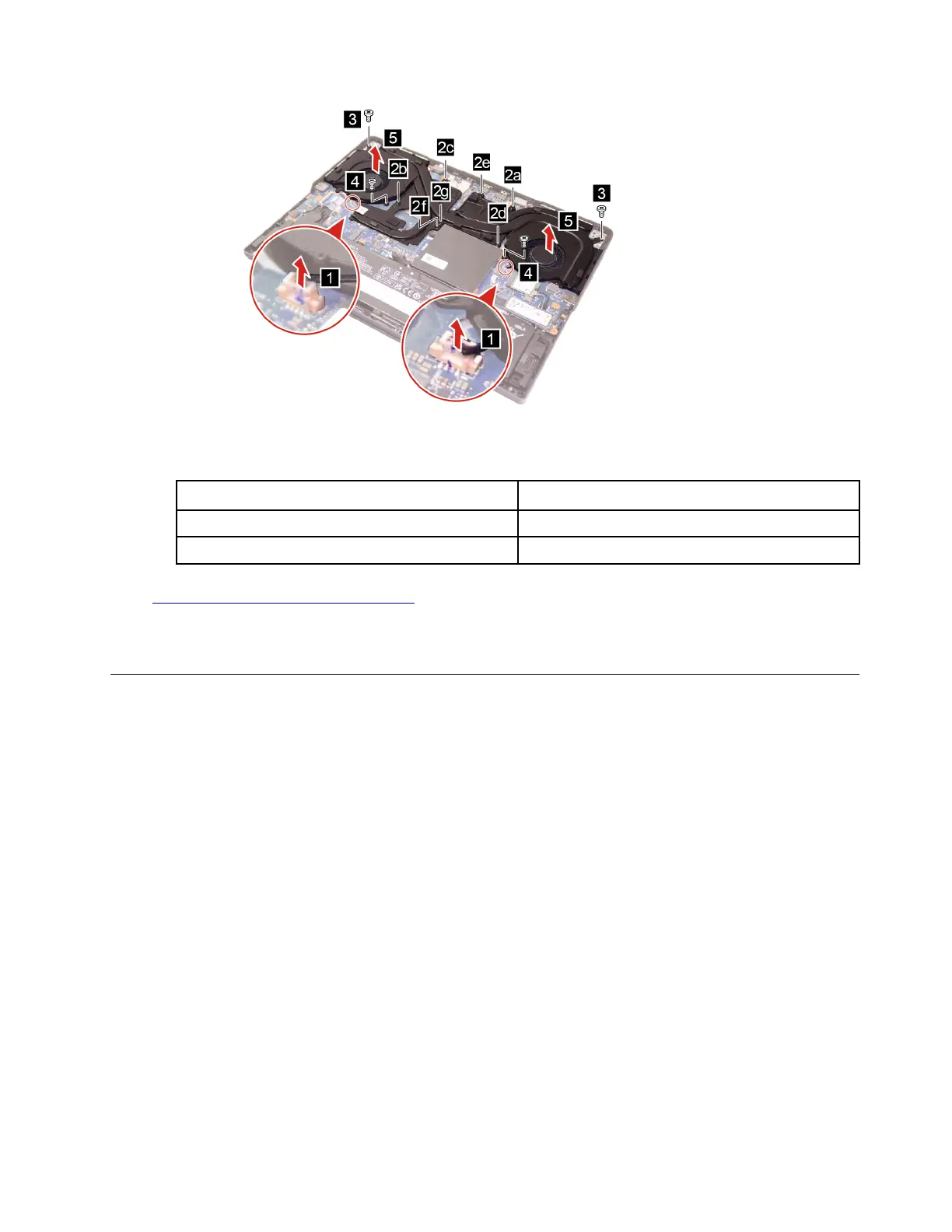

Figure 19. Remove the thermal module
Screw specifications
Number of screws
M2.5 × L7.0 2
M2 × L5.0 2
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
Thermal module
Remove the USB board
Make sure the following FRUs (CRUs) have been removed:
“Remove the lower case” on page 28
“Remove the left SSD bracket” on page 31
“Remove the left 2280 SSD (for selected models)” on page 33
“Remove the thermal module” on page 40
Step 1. Disconnect the USB board cable from the USB board. Remove one screw and then remove the
USB board.
Chapter 4. Removing a FRU or CRU 41

Lenovo Legion Pro 5 16IRX8 Specifications

General

Battery	80Wh
Wireless	Wi-Fi 6E, Bluetooth 5.1
Processor	Up to Intel Core i9-13900HX
Graphics	NVIDIA GeForce RTX 4070
Display	16" WQXGA (2560x1600)
RAM	Up to 32GB DDR5
Operating System	Windows 11 Pro
Weight	2.5 kg
Audio	2 x 2W Harman Speakers, Nahimic Audio
Ports	3x USB-A, 1x HDMI 2.1, 1x RJ45, 1x 3.5mm audio jack
