Lenovo Legion Pro 5 16IRX8 User Manual

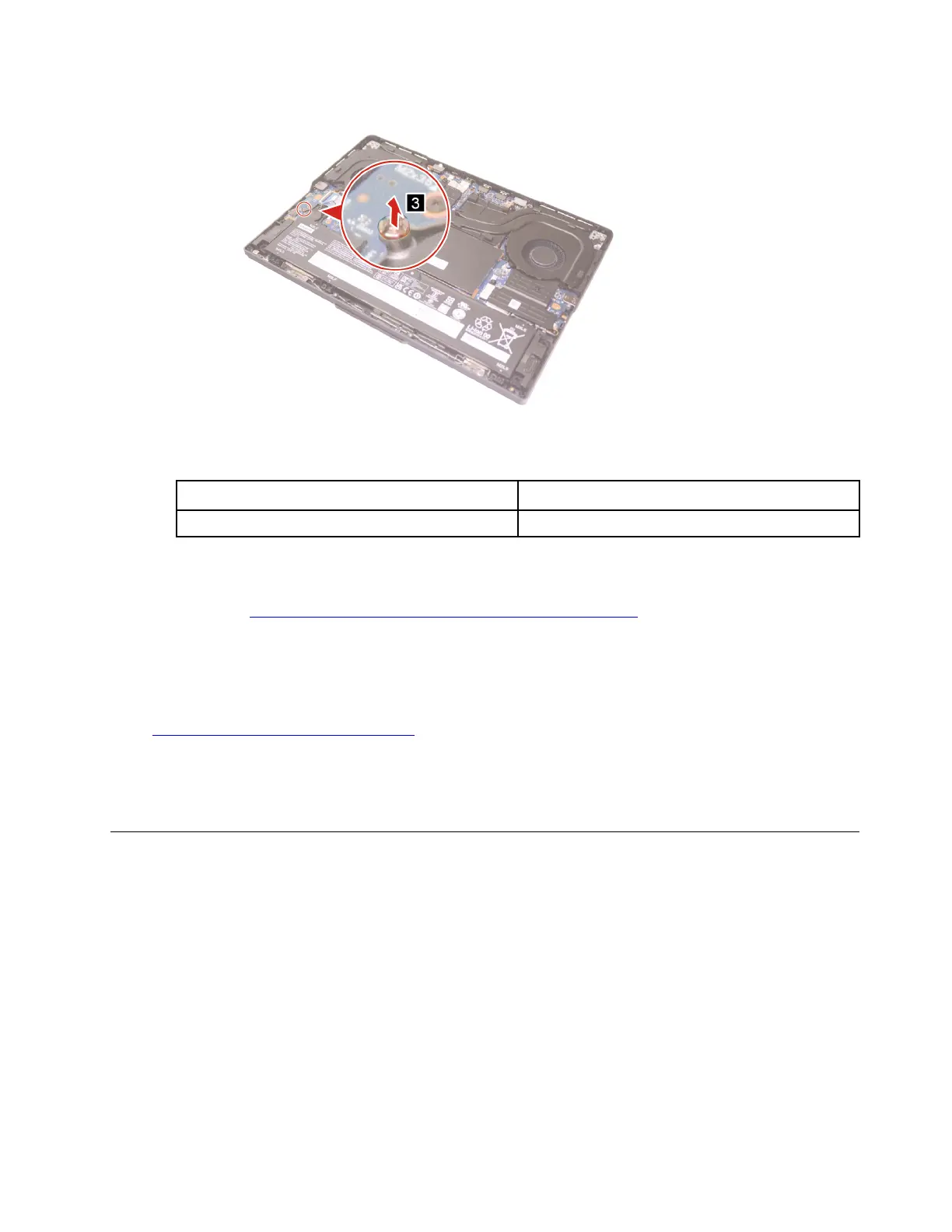

Figure 17. Remove the right 2280 SSD holder
Screw specifications
Number of screws
M2.5 × L3.2 1
Notes: For LCD panel with the factory color calibration feature, do the following to install new color
profiles:
1. Go to
https://pcsupport.lenovo.com/us/en/downloads/DS543953 to download the installation
software. Double-click the EXE file and follow the on-screen instructions to finish the
installation.
2. X-RiteColorAssistant.exe will auto run. Click Restore Profile button from prompted window to
restore the profile from Lenovo cloud.
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
2280 SSD
2280 SSD holder
Remove the Wi-Fi card
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the right SSD bracket” on page 35
Step 1. Disconnect the Wi-Fi antennas. Then, remove one screw and then remove the Wi-Fi card.
Chapter 4. Removing a FRU or CRU 39

Lenovo Legion Pro 5 16IRX8 Specifications

General

Battery	80Wh
Wireless	Wi-Fi 6E, Bluetooth 5.1
Processor	Up to Intel Core i9-13900HX
Graphics	NVIDIA GeForce RTX 4070
Display	16" WQXGA (2560x1600)
RAM	Up to 32GB DDR5
Operating System	Windows 11 Pro
Weight	2.5 kg
Audio	2 x 2W Harman Speakers, Nahimic Audio
Ports	3x USB-A, 1x HDMI 2.1, 1x RJ45, 1x 3.5mm audio jack
