Lenovo Legion Pro 5 16IRX8 User Manual

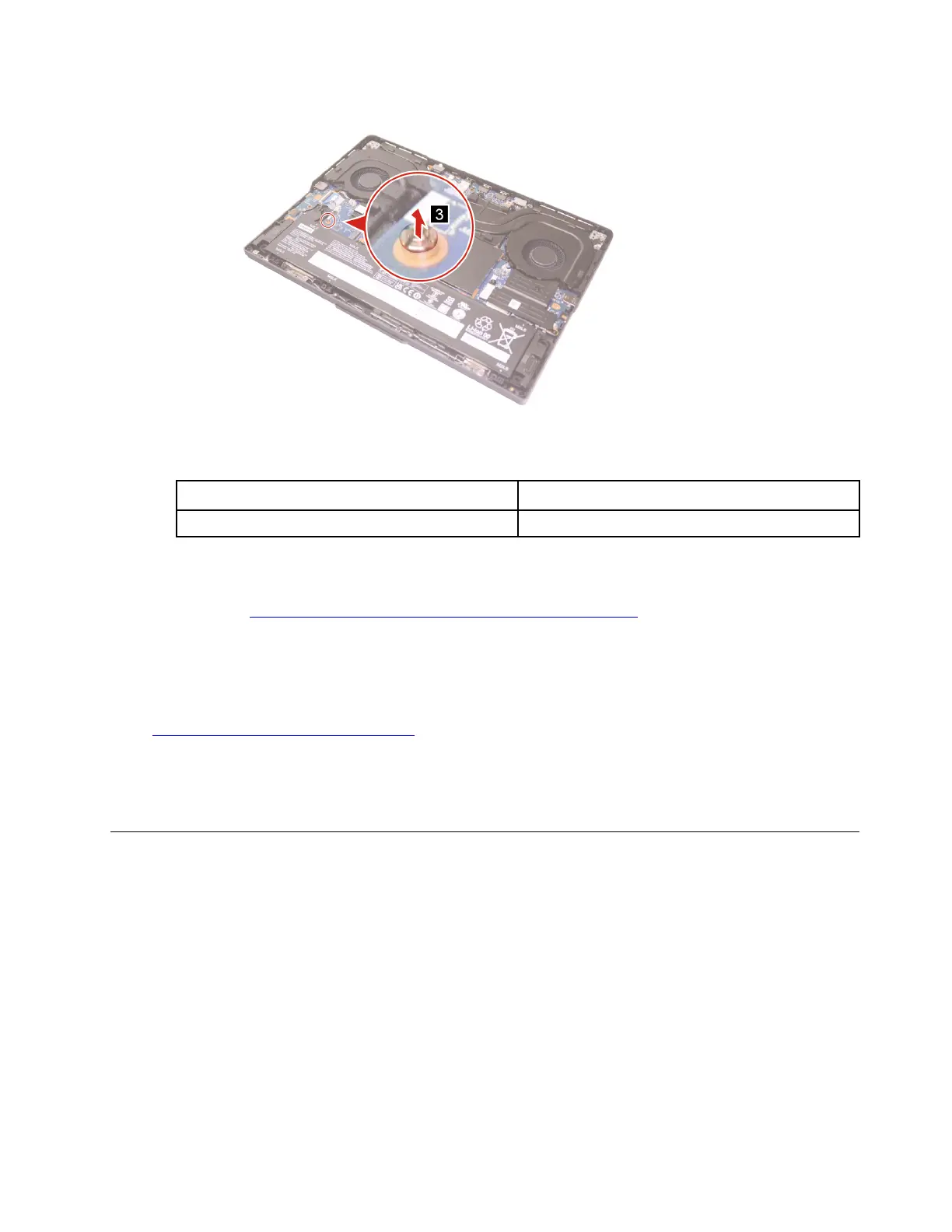

Figure 9. Remove the left 2242 SSD holder
Screw specifications
Number of screws
M2.5 × L3.2 1
Notes: For LCD panel with the factory color calibration feature, do the following to install new color
profiles:
1. Go to
https://pcsupport.lenovo.com/us/en/downloads/DS543953 to download the installation
software. Double-click the EXE file and follow the on-screen instructions to finish the
installation.
2. X-RiteColorAssistant.exe will auto run. Click Restore Profile button from prompted window to
restore the profile from Lenovo cloud.
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
2242 SSD
2242 SSD holder
Remove the left 2280 SSD (for selected models)
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the left SSD bracket” on page 31
Step 1. Remove one screw and then remove the left 2280 SSD.
Chapter 4. Removing a FRU or CRU 33

Lenovo Legion Pro 5 16IRX8 Specifications

General

Battery	80Wh
Wireless	Wi-Fi 6E, Bluetooth 5.1
Processor	Up to Intel Core i9-13900HX
Graphics	NVIDIA GeForce RTX 4070
Display	16" WQXGA (2560x1600)
RAM	Up to 32GB DDR5
Operating System	Windows 11 Pro
Weight	2.5 kg
Audio	2 x 2W Harman Speakers, Nahimic Audio
Ports	3x USB-A, 1x HDMI 2.1, 1x RJ45, 1x 3.5mm audio jack
