6 I/O terminals
6.2 Analog terminals
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.2 Analog terminals
The controller is provided with an analog input for detecting a voltage signal. The voltage signal can
be e.g. an analog speed setpoint selection or the signal of an external sensor (temperature, pressure,
etc.).
• Possible voltage ranges:
• 0 ... +10 V (Lenze setting)
• 0 ... +5 V
• 1 ... +5 V
• An external 250-Ω load resistor and a respective parameter setting allow to implement a cur-
rent loop:
• 0 ... 20 mA, without open-circuit monitoring
• 4 ... 20 mA, with open-circuit monitoring

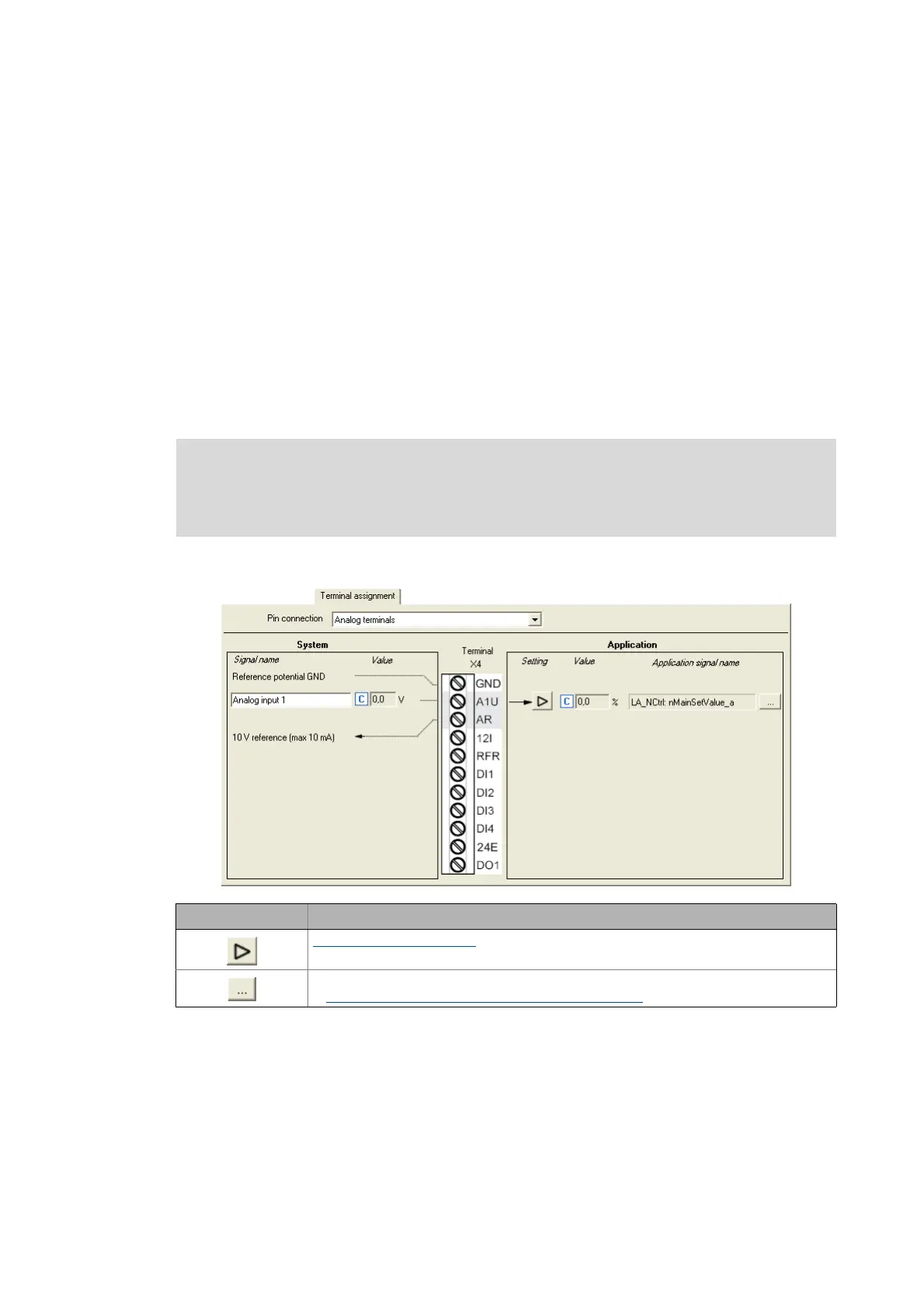

Parameterisation dialog in the »Engineer«:
 Note!
To avoid undefined states, free input terminals of the controller must be assigned as
well, e.g. by applying 0 V to the terminal.
Button Function
Parameterising analog input
( 112)
Open the parameterising dialog for assigning application inputs to the analog input.
Changing the terminal assignment with the »Engineer«
( 116)
