3.5.2 Speed control

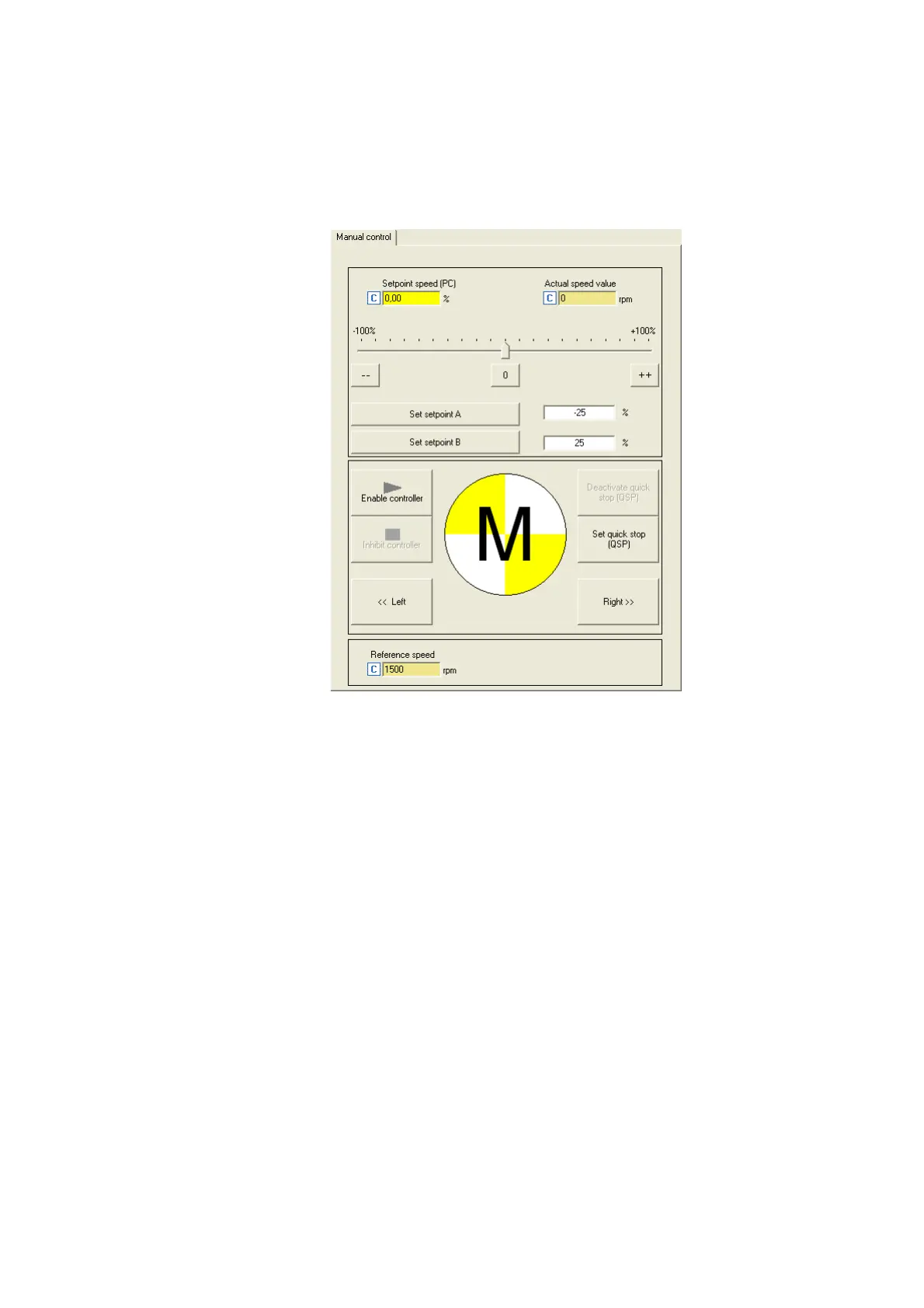

Via the Speed control tab, simply make the drive rotate in the "Speed follower" operating mode wi-
thout the need to set control parameters or feedback systems:
 How to make the motor rotate in its most basic way:
1. Set the desired speed setpoint in [%] based on the reference speed, e.g. directly in the
Setpoint PC input field or via the slider.
•Via the -- / 0 / ++ buttons, the currently set speed setpoint can be reduced/increased in
steps of 10 percent or set to zero.
•Via the Set setpoint A/B buttons, the speed setpoint can be set to a previously set con-
stant value A/B.
2. To start the speed follower:
Enable the controller via the Enable controller button.
• Please observe that the controller will not be enabled if other sources of controller inhi-
bit (e.g. terminal RFR) are active.
• The enabled controller is now following the selected speed setpoint.
• To avoid shocks or overload in case of great setpoint changes, the speed setpoint follows
a linear ramp generator with adjustable acceleration/deceleration time.
•Via the Inhibit controller button, the controller can be inhibited again, i.e. the motor be-
comes torqueless and is coasting unless it already is at standstill.
