6 I/O terminals
6.3 User-defined terminal assignment
118
Lenze · 8400 BaseLine C · Reference manual · DMS 1.6 EN · 01/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Example
Task:
Based on the preset control mode "Terminals 0", the digital input DI2 is used for activating the
quick stop instead of selecting the fixed setpoint 2/3. For this purpose, the digital input DI2 must
not be linked to the bJogSpeed2 input but to the bSetQuickstop input of the application.
Procedure:
1. Change the setting of the configuration parameter LA_NCtrl: bSetQuickstop (C701/3) which re-
presents the logical link of the bSetQuickstop application input: "0: Not connected" "12:
DigIn_bIn2"
2. Change the setting of the configuration parameter LA_NCtrl: bJogSpeed2 (C701/7
) which rep-
resents the logical link of the bJogSpeed2 application input: "12: DigIn_bIn2" "0: Not connec-
ted"

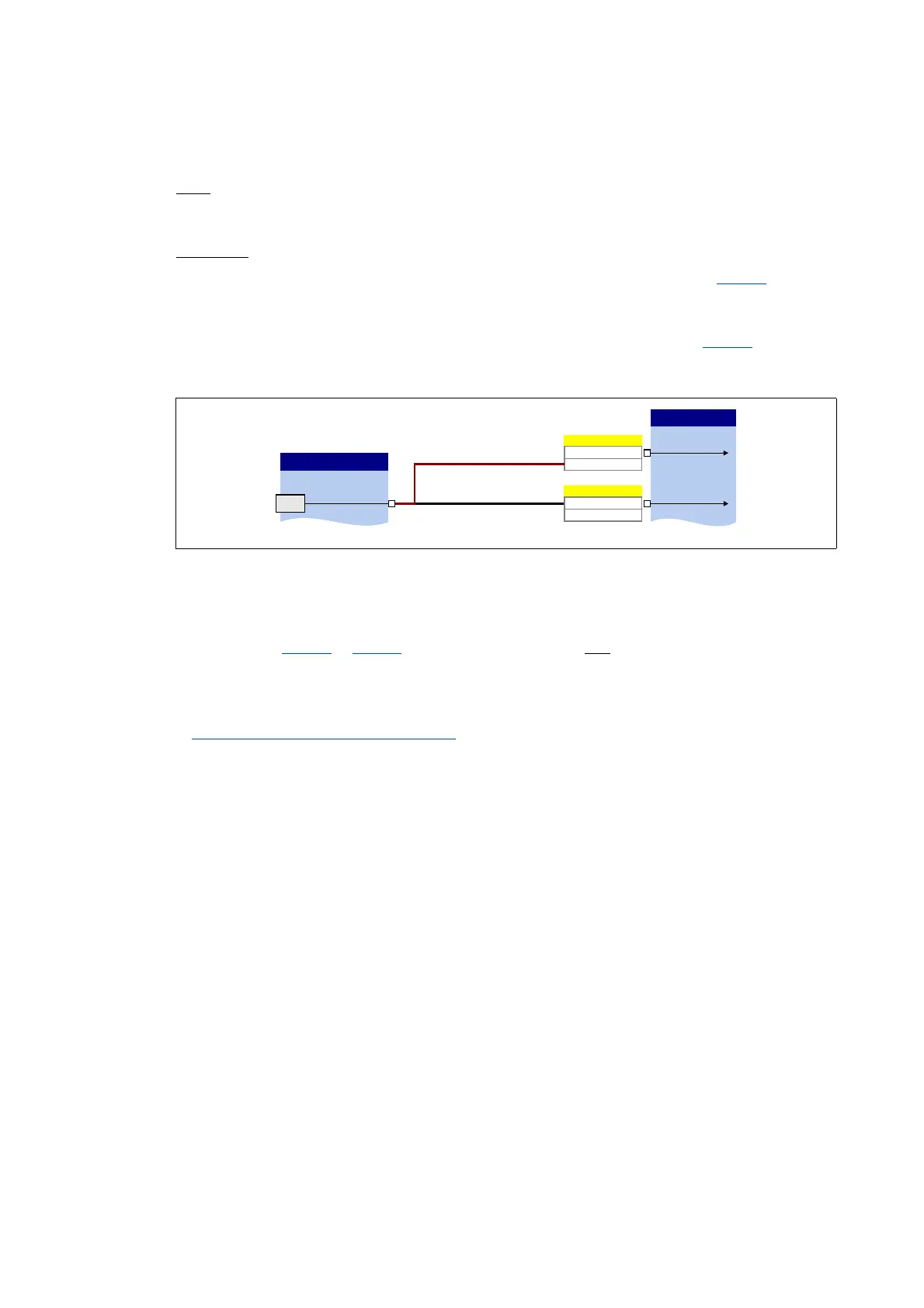

[6-3] Example: Changing the terminal assignment via configuration parameters
Tip!
The example shows, for each input of the application, the associated configuration para-
meter (C700/x
or C701/x) is only allowed to contain one source that you enter.
Related topics:
Pre-assignment of the drive application
( 133)
/$B1&WUO
E6HW4XLFNVWRS
&
QRWFRQQHFWHG
'LJ,QBE,Q
/6B'LJLWDO,QSXW
E-RJ6SHHG
&
'LJ,QBE,Q
QRWFRQQHFWHG
E,Q
',
