Basic units in the power range 75 ... 90 kW
Thermally separated mounting (push-through technique)
5
Basic device installation
5.7
5.7.5
L
5.7-5
EDS82EV903-1.0-11/2002
5.7.5 Thermally separated mounting (push-through technique)
For mounting in push-through technique use the controller type E82 D V... . The
delivery package includes all parts and components required for mounting.
h
c1
c2
c3
c4
g
a1
a
d1
h
d2
d2
d2
d
b
b1
e1
e
8200vec303

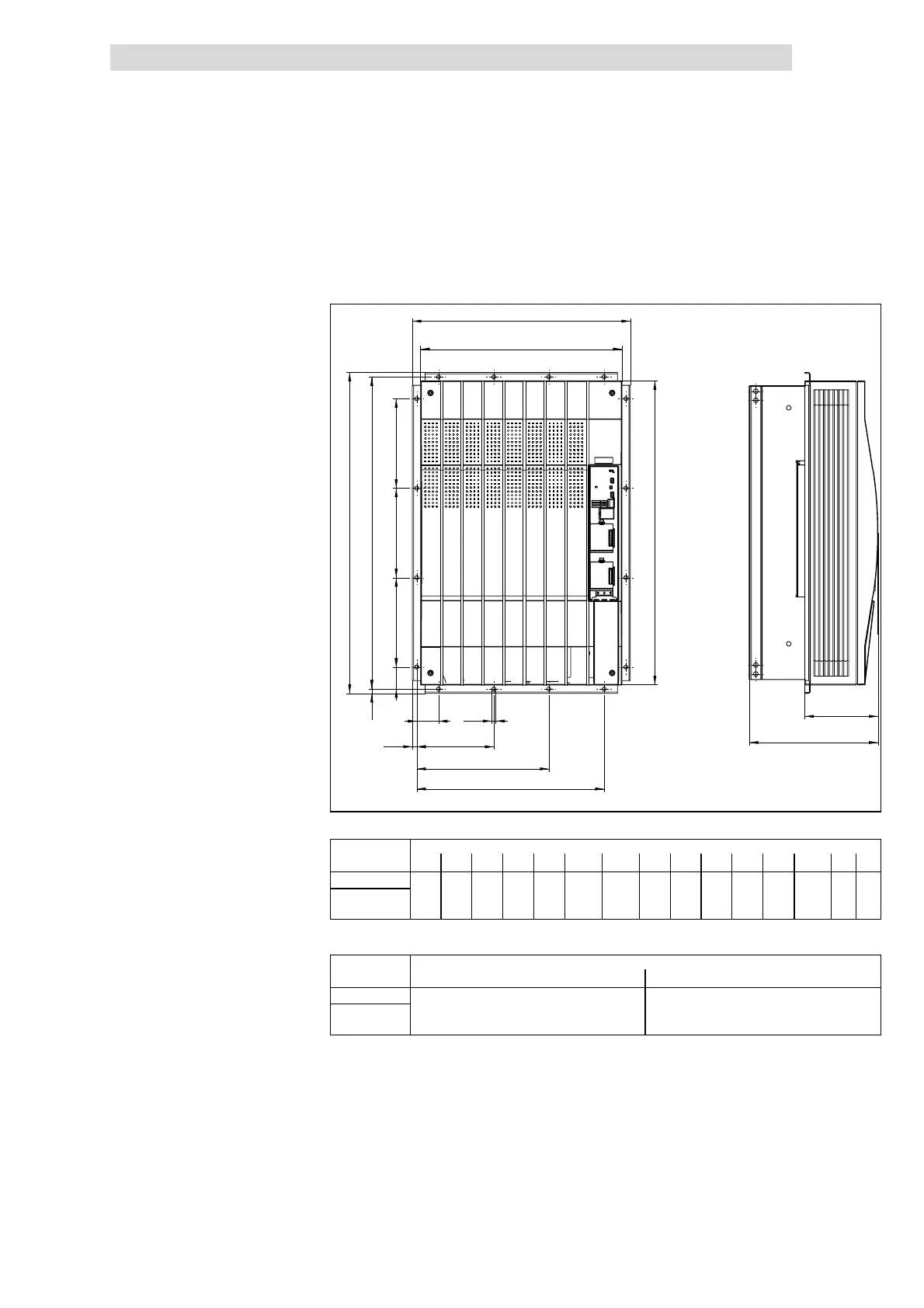

Fig. 5.7-5 Dimensions for thermally separated mounting 75 ... 90 kW
Dimensions [mm]
8200 vector a a1 b b1 c1 c2 c3 c4 d d1 d2 e e1 g h
E82DV753K4B
E82DV903K4B 488 450 718 680 49 172.5 295.5 419 698 49 200 285 163.5 9 10
Mounting cutout in the control cabinet
Dimensions [mm]
8200 vector a a1
E82DV753K4B
E82DV903K4B 488 450
