9.2 Plug connectors
By default, cables for the connection of the mains and the motor are led into the WU by
means of cable glands. Alternatively, plug-in modules with prewired Q-plugs can be
supplied for mounting on the right or the left.
For plug-in modules with a Q-plug, an M16 bore for an additional cable gland is available.
Plug-in modules with two Q-plugs are designed for a looping-through connection
(daisy-chain). Like this it is possible to use a supply bus for the machine design.
In the case o f wall mounting, the plug-in modules with a Q8-plug enable the motor
connection as a plug&drive drive, in particular with Lenze system cables.

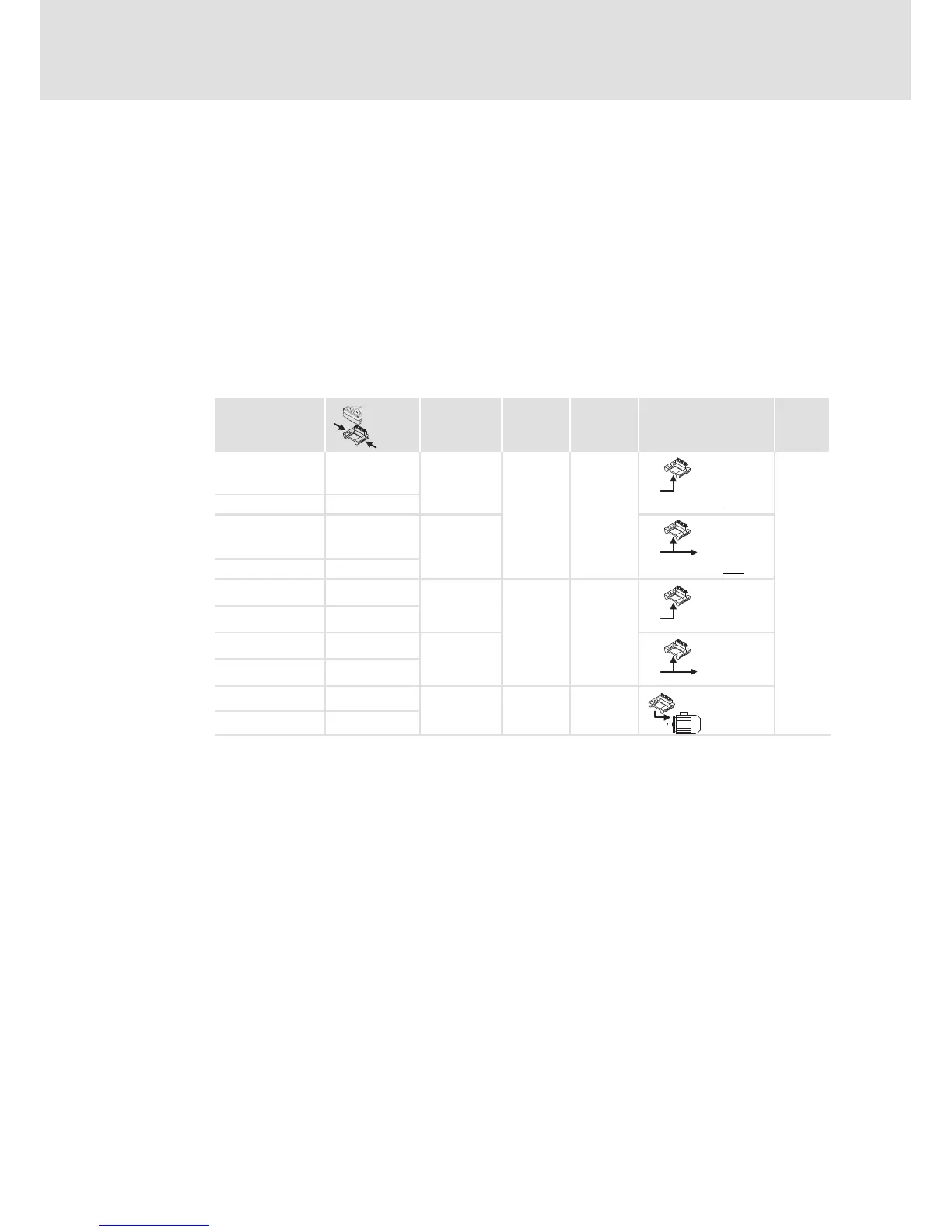

In the table the retrofittable plug-in modules are listed.
;
.
X...
U
max
I
max
IP
[V] [A]
E84DZEVBLANP 
X10: Q5
400 ~ 16 ~
~
IP65
E84DZEVBRANP   E84DGDVB3024...
E84DZEVBLAFP 
X10: Q5
X11: Q5
~~
E84DZEVBRAFP   E84DGDVB3024...
E84DZEVBLPNP 
X10: Q4/2
480 ~
24 =
32 ~
10 =
~
=
E84DZEVBRPNP 
E84DZEVBLPRP 
X10: Q4/2
X11: Q4/2
~
=
~
=
E84DZEVBRPRP 
E84DZEVBLCNP 
X21: Q8 480 ~ -
E84DZEVBRCNP 
