Commissioning
Setting with the diagnosis terminal (keypad)
6

94
EDS84DG752 EN 5.0
6.5 Setting with the diagnosis terminal (keypad)
The controller can also be set and controlled with the diagnosis terminal. The diagnosis
terminal consists of a molded recess, connecting cable and the keypad which cannot be
directly plugged onto the controller. Descriptions for the keypad can be done with the
diagnosis terminal.
When the diagnosis terminal is connected, a preselected parameter is displayed after
initialisation. In the Lenze setting, the actual speed value (C00051) is displayed. The
preselected parameter can be changed (C00466).

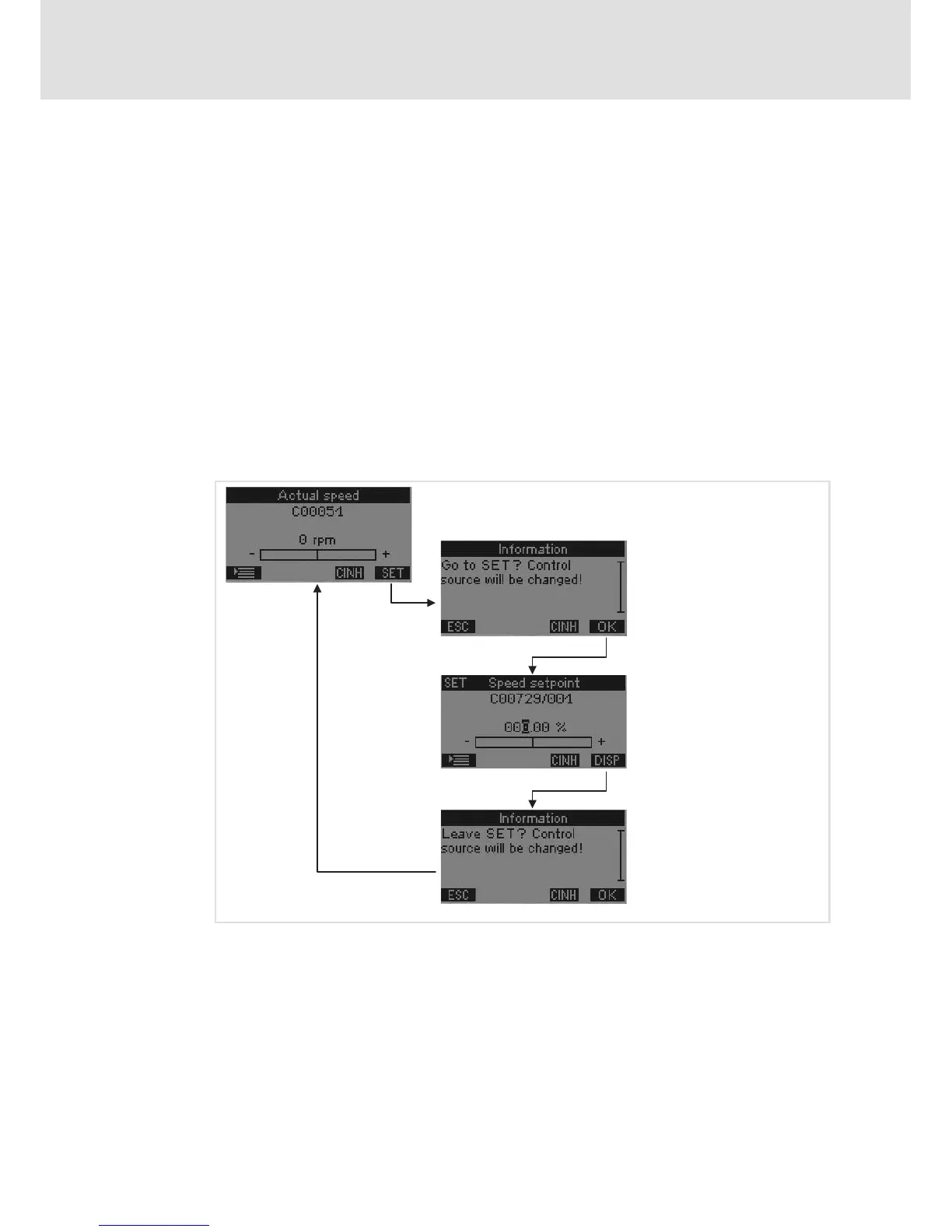

”SET” mode
The right softkey ”SET” serves to change from the display mode to the SET mode. In the SET
mode, the speed setpoint can be changed and the controller can be enabled/inhibited
(RFR/run).The SETmode canbe quitwith theright softkey ”DISP”. The changeof themodes
must always be confirmed with the right softkey ”OK”.
