4.8 Dimensions
4.8.1 Standard motor mounting
E84DG...

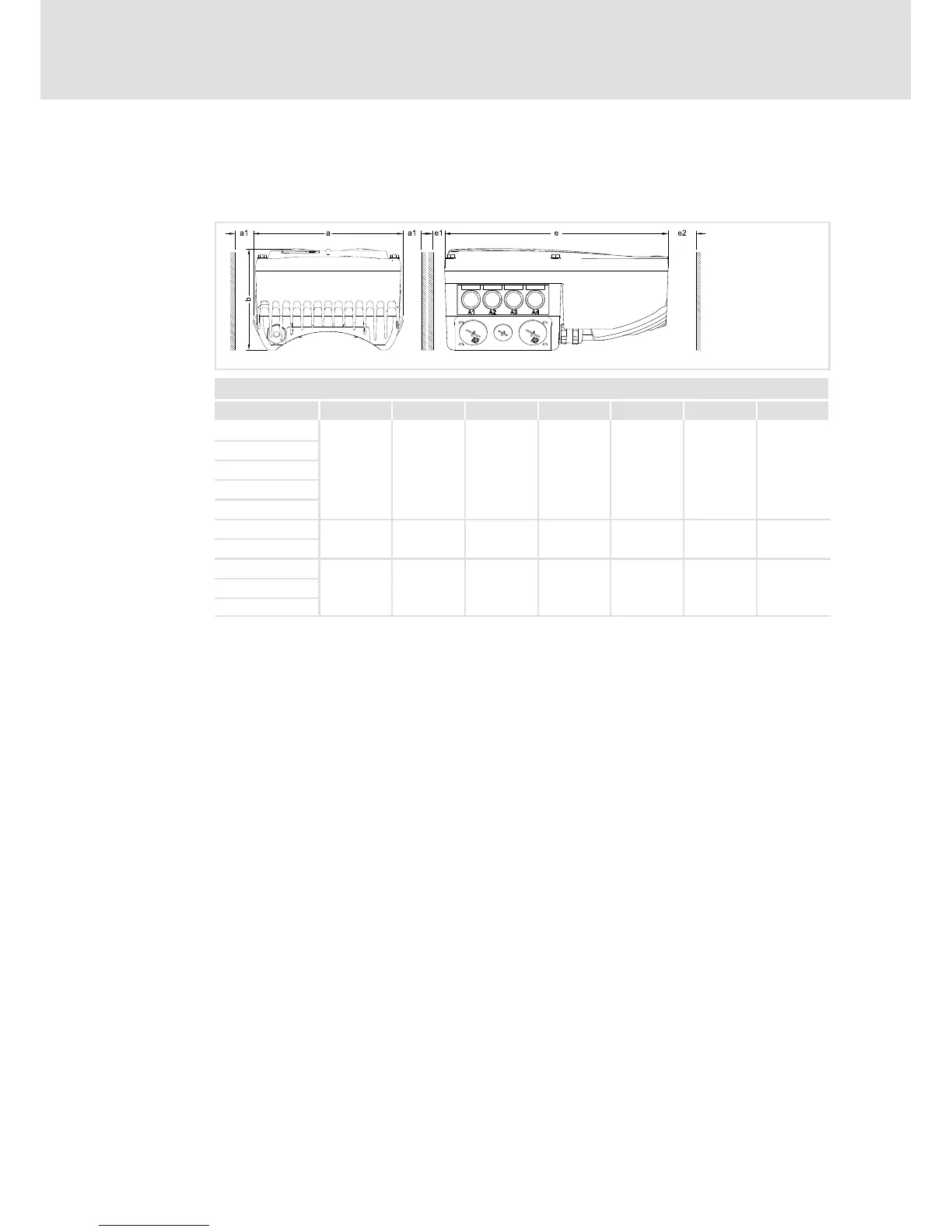

Dimensions - standard motor mounting [mm]
Type a b e a1 e1 e2 m[kg]
2)
E84DGDVB371T
161
109 241 50 100 2.6
E84DGDVB551T
E84DGDVB751T
75
(20
1)
)
E84DGDVB112T
E84DGDVB152T
E84DGDVB222T
176 135 261
75
(20
1)
)
50 100 3.5
E84DGDVB302T
E84DGDVB402T
195 176 325
70
(15
1)
)
50 100 5.3
E84DGDVB552T
E84DGDVB752T
1)
Reduction possible if no free space for plugs or cables/c able glands is required.
2)
For the NO BUS version, without cable glands
