Technical data
Terminal description
Overview
4
42
EDS84DG752 EN 5.0

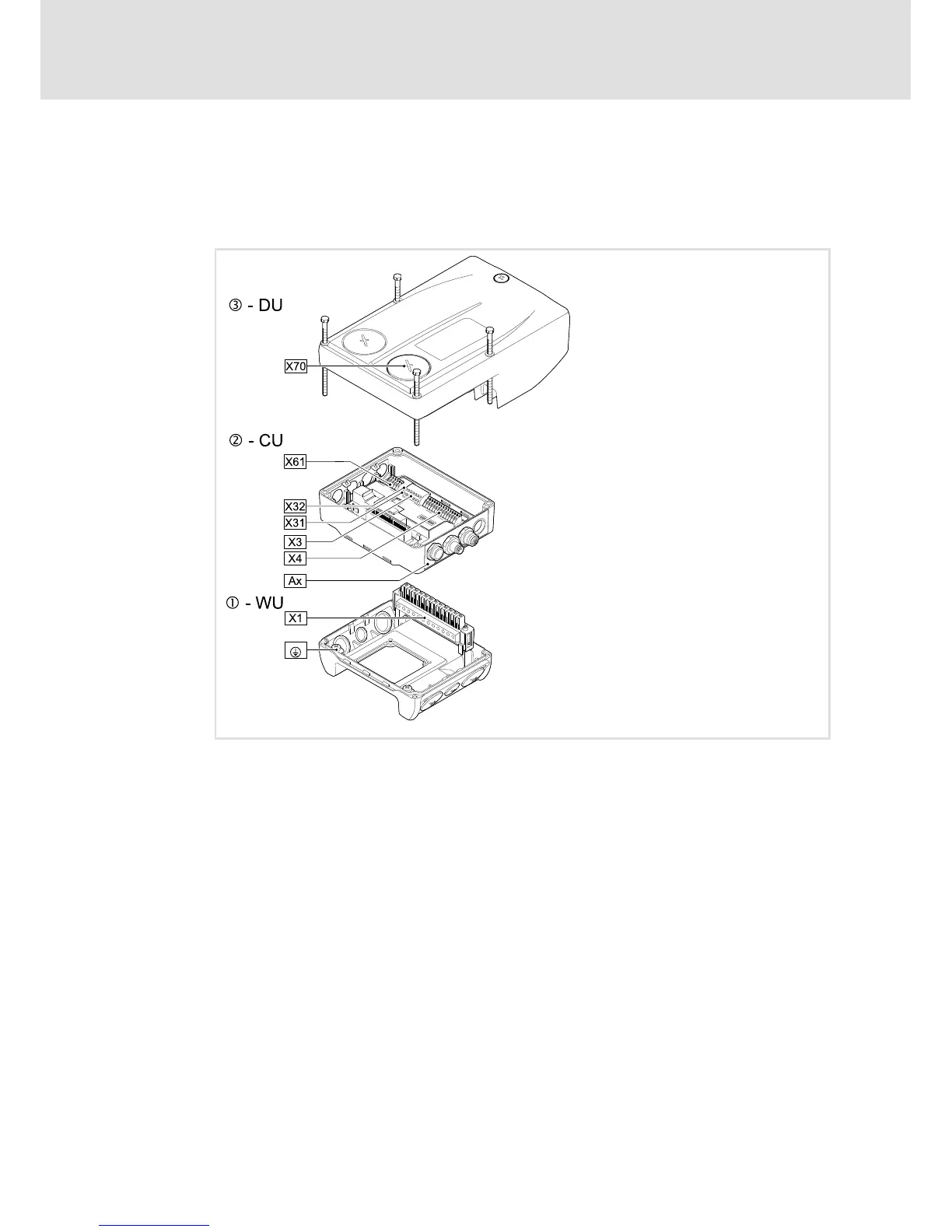

4.5 Terminal description
4.5.1 Overview
0.37 ... 3 kW
E84DGDV001
WU - Wiring Unit
X1/L1, L2, L3 Mains
X1/U,V,W Motor
X1/Rb1, Rb2 Brake resistor
X1/BD1, BD2 Motor holding brake
X1/T1, T2 Motor temperature monitoring
Protective earth
CU - Communication Unit
The connection opportunities depend on the communication module option.
X4/COM, NO Switching contact, potential-free
X4/Ax, GND Analog input
X4/RFR, DIx, DO1 Digital inputs and outputs
X4/24O,GND 24-V supply voltage for external sensors
X3/X31/X32 Fieldbus
X61/... Safety
Ax Position of LED display, connector or cable gland
DU - Drive Unit
X70 Diagnostics
