Technical data
Control terminals
Digital inputs
4

48
EDS84DG752 EN 5.0

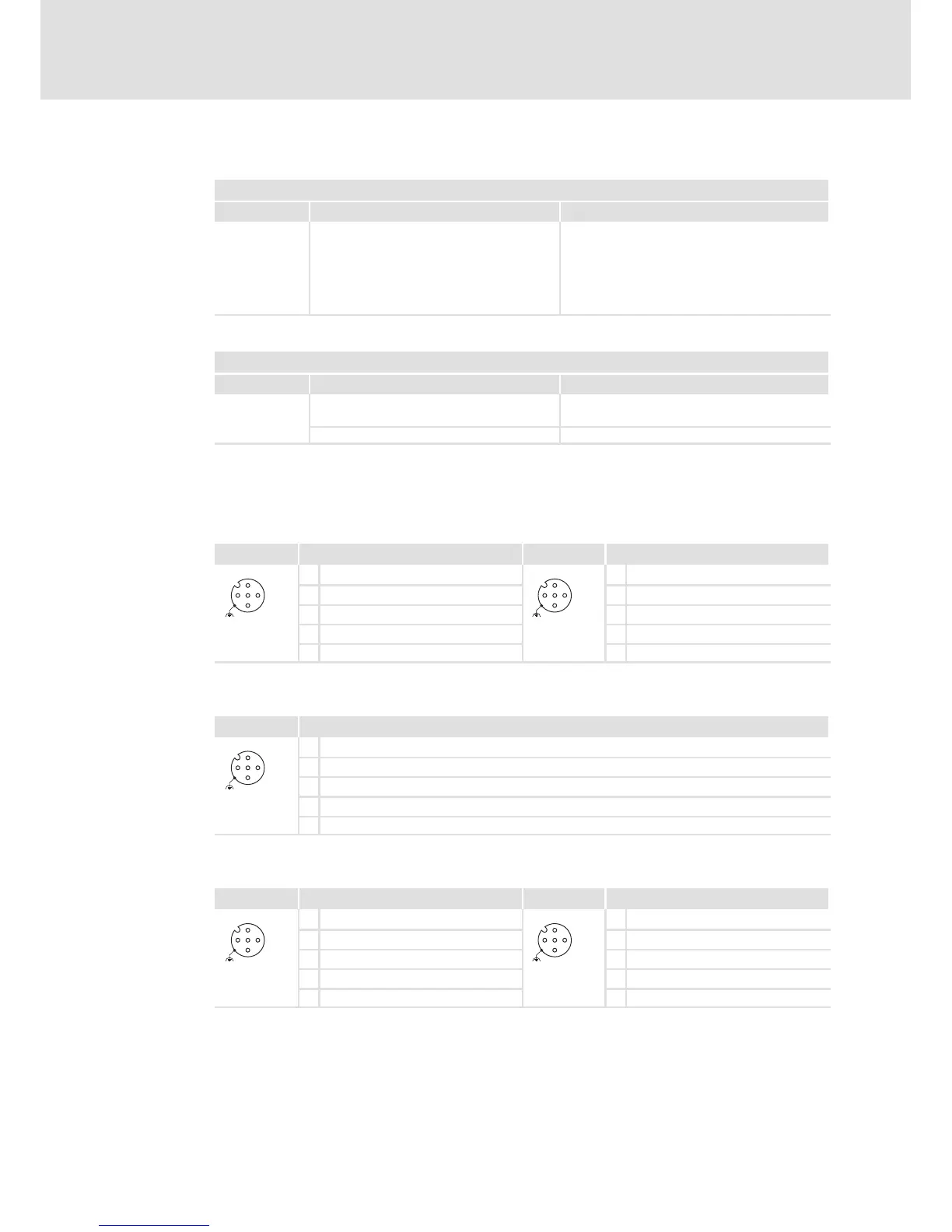

4.7.1 Digital inputs
X4
Pin / name Features Rated value
RFR
DI1
DI2
DI3
DI4
DI5
Controller enable
Digital inputs
according to IEC 61131-2, type 1
or
DI1/DI2: Two-track frequency input for HTL
encoder 0 ... 10 kHz (parameterisable)
DI3 ... DI5 not available for NO BUS
X3
Pin / name Features Rated value
24O
GND
24-V supply of external sensors or
potential-free contacts
according to IEC 61131-2
max. total current 100 mA
In the E84DGFCx9xx version, max. four digital inputs are assigned to the M12 plugs. The
plugs are mounted to the connection positions Ax, depending on the fieldbus.
CANopen
A1 DI - E84DGFCC9xx A4 DI - E84DGFCC9xx
1
2
3
4
5
1 24O
1
2
3
4
5
1 24O
2 DI2 2 DI4
3 GND 3 GND
M12 female
socket A-Coding
4 DI1
M12 female
socket A-Coding
4 DI3
5 n. c. 5 n. c.
PROFIBUS
A4 DI - E84DGFCP9xx, E84DGFCR9xx, E84DGFCT9xx, E84DGFCG9xx
1
2
3
4
5
1 24O
2 DI2
3 GND
M12 female
socket A-Coding
4 DI1
5 n. c.
AS-i
A3 DI - E84DGFCA9xx A4 DI - E84DGFCA9xx
1
2
3
4
5
1 24O
1
2
3
4
5
1 24O
2 DI2 2 DI4
3 GND 3 GND
M12 female
socket A-Coding
4 DI1
M12 female
socket A-Coding
4 DI3
5 n. c. 5 n. c.
