Diagnostics
Diagnostics with PCAN−View
Monitoring of telegram traffic on the CANopen bus
9
124
EDBCSXE040 EN 6.0
9.3 Diagnostics with PCAN−View
This chapter describes how to use the "PCAN−View" program for diagnosing your CANopen
network.
"PCAN−View" is the basic version of the "PCAN−Explorer" program for Windows® of PEAK
System Technik GmbH. The program permits a simultaneous transmission and reception
of CAN messages which can be transmitted manually and periodically. Errors on the bus
system and memory overflows of the triggered CAN hardware are displayed.
9.3.1 Monitoring of telegram traffic on the CANopen bus
1. Connect your Engineering PC directly to the CANopen bus via the EMF2177IB USB
system bus adapter.
2. Start the PCAN−View program.

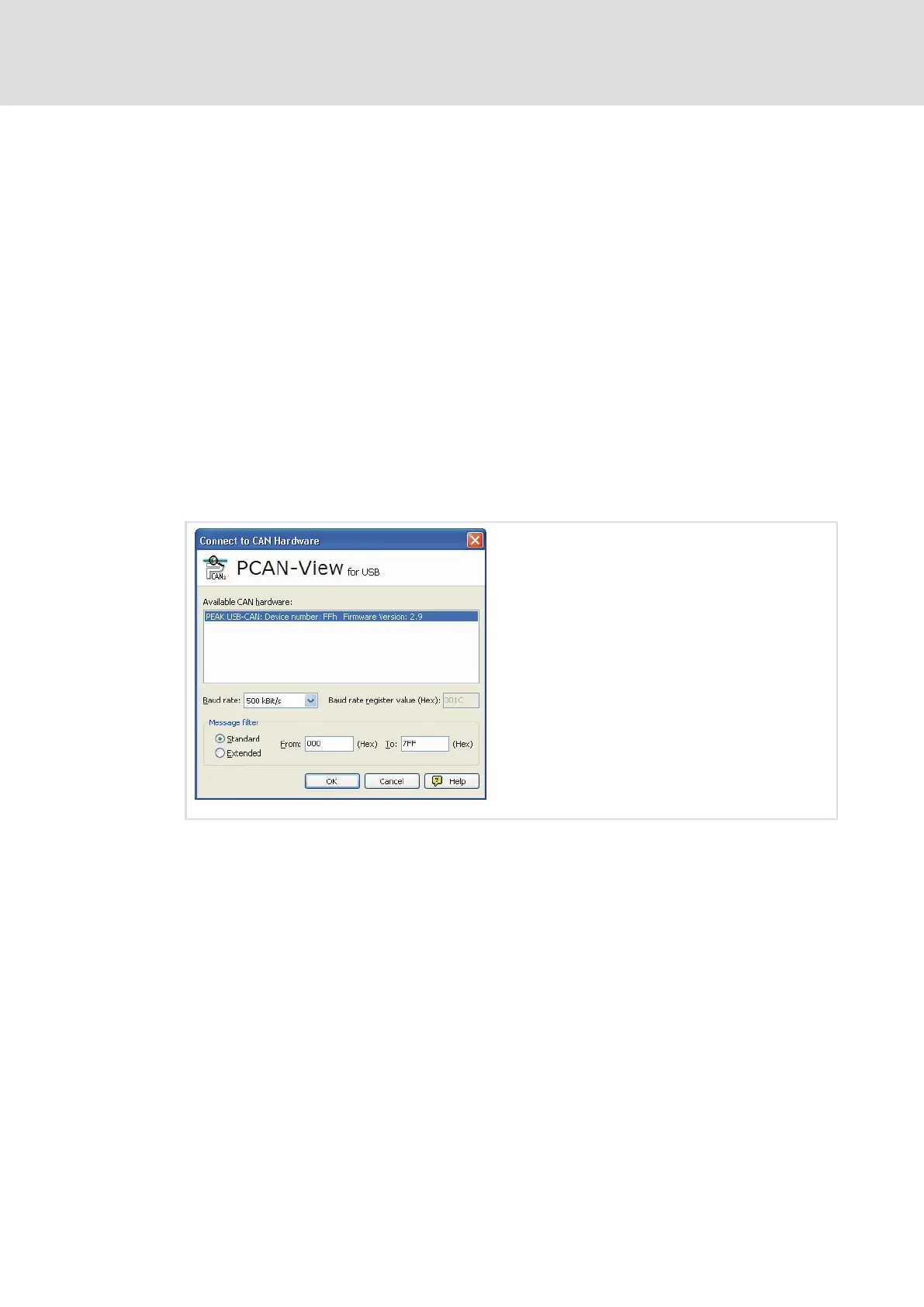

3. Connect PCAN−View with "Connect to CAN Hardware" according to the USB system
bus adapter and the baud rate.
