Configuration
Configuring system bus (CAN)
Setting CAN node address and baud rate
8
95
EDBCSXE040 EN 6.0
8.2 Configuring system bus (CAN)
The codes for configuring the system bus (CAN) can be found in the GDC parameter menu
( 71) under system bus (CAN).
8.2.1 Setting CAN node address and baud rate
The CAN node address and baud rate can be set via the DIP switch (S1) or via C0350/C0351.
ƒ If one of the (address) switches 2 ... 7 of the DIP switch is switched on (ON) and the
low−voltage supply is connected, the setting of the DIP switch is evaluated and
entered into C0350 (CAN node address) and C0351 (baud rate).
ƒ If the (address) switches 2 ... 7 are switched off (OFF), the switch position is not
evaluated. The node address and the baud rate are then taken from C0350 and
C0351.
ƒ The switch 1 of the DIP switch has no function.
8.2.1.1 Settings via DIP switch
ECSEE_002B

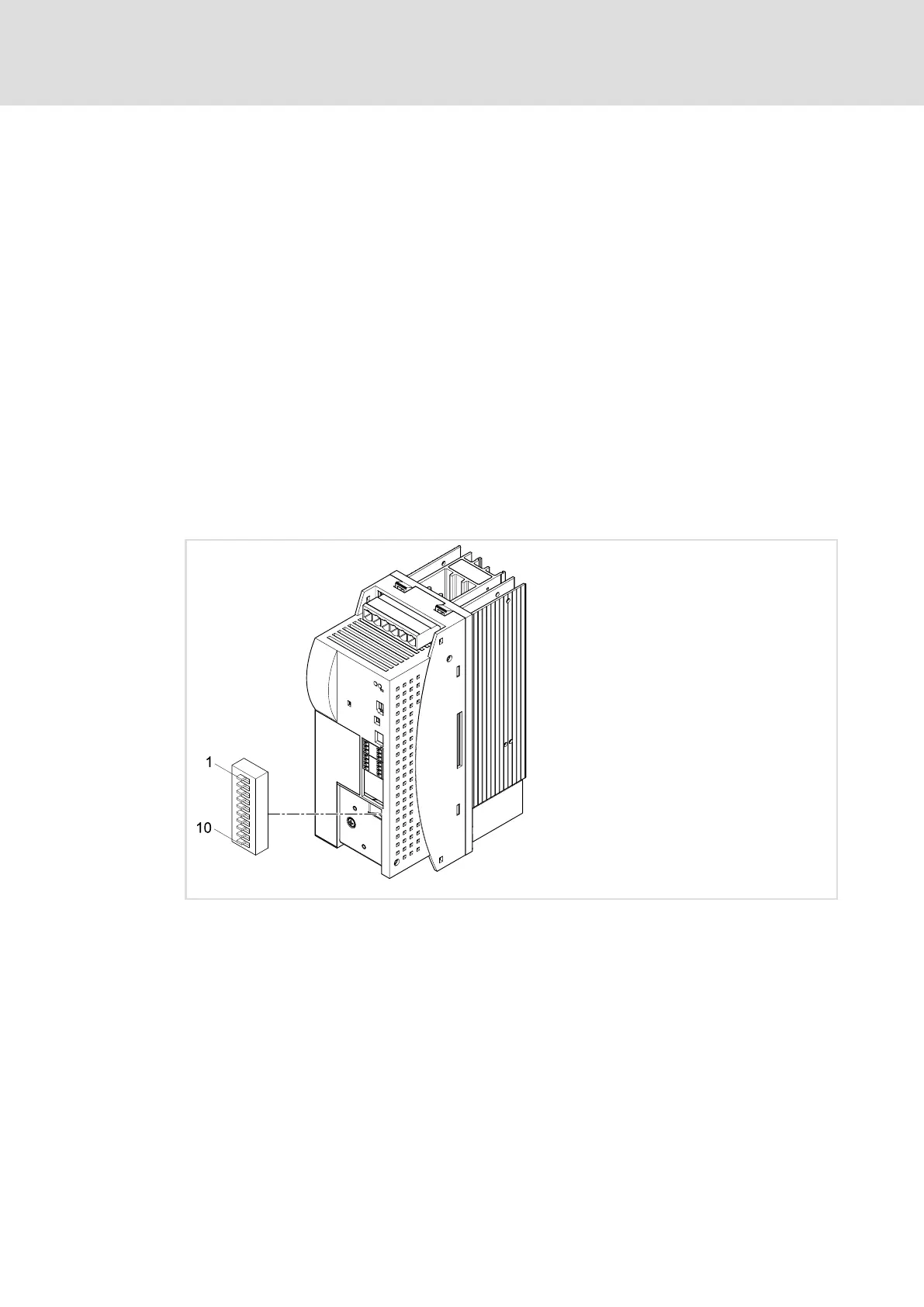

Fig. 8−11 DIP switch for node address and baud rate (all switches: OFF)
