37
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
ꔛ
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
ꔛ
I
mage shown may differ from your TV.
Y, C
B/PB, CR/PR

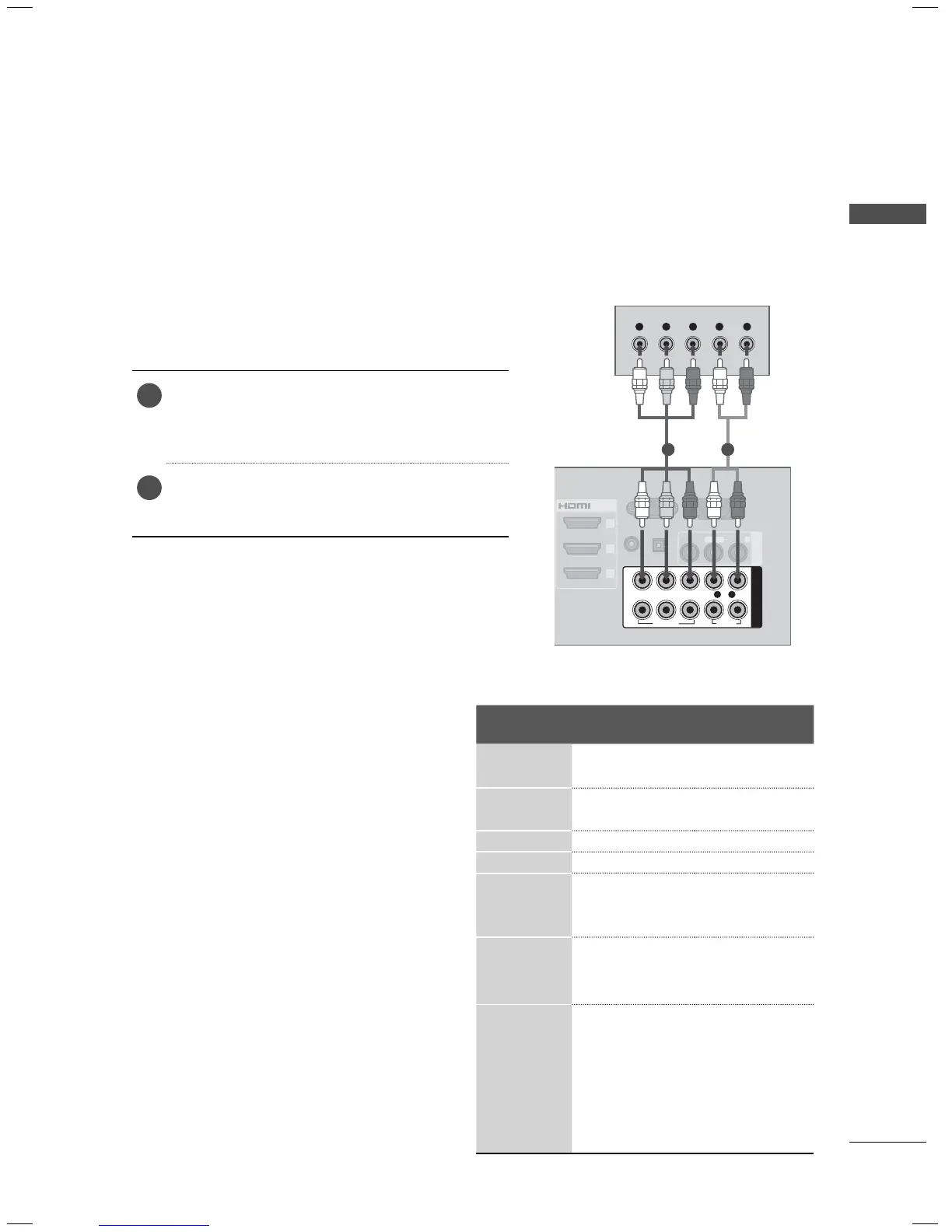

1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
digital set-top box to the COMPONENT IN
VIDEO 1, 2, or 3* jacks on the TV. Match the
jack colors (Y = green, P
B = blue, and PR = red).
2
Connect the audio output of the digital set-top
box to the COMPONENT IN AUDIO 1, 2, or 3*
jacks on the TV.
2. How to use
ꔛ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top
box operation.
)
ꔛ
Select the Component1, Component2, or
Component3* input source on the TV using the
INPUT button on the remote control.
Component Connection
This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.
However, if you do receive digital signals from a digital set-top box or other digital external device, refer
to the figure as shown below.
Resolution
Horizontal
Frequency
(
kHz
)
Vertical
Frequency
(
Hz
)
720x480i
15.73 59.94
15.73 60.00
720x480p
31.47 59.94
31.50 60.00
720x576i 15.625* 50.00*
720x576p 31.25* 50.00*
1280x720p
37.50* 50.00*
44.96 59.94
45.00 60.00
1920x1080i
28.125* 50.00*
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
56.25* 50.00*
67.432 59.94
67.50 60.00
EXTERNAL EQUIPMENT SETUP
RGB IN (PC)
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
AV IN 1
AUDIO IN
AUDIO OUT
VIDEO
AUDIO
COMPONENT IN
YP
B
P
R
L R
2
1
Y L RP
B
P
R
1 2
* Component3: For LED LCD TV
*Except Brazil
