EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
40
DVD SETUP
RGB IN (PC)
S
L
(RGB/DVI)
RS-232C IN
( CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
AV IN 1
AUDIO IN AUDIO OUT
VIDEO
AUDIO
COMPONENT IN
YP B P R
L R
2
1
Y L RP B P R
1
2
YLR PBPR
AUDIO / Y P
B
P
R
IN 4
H/P
USB IN 1 USB IN 2
AV IN2
VIDEO / AUDIO
COMPONENT IN3
1
2

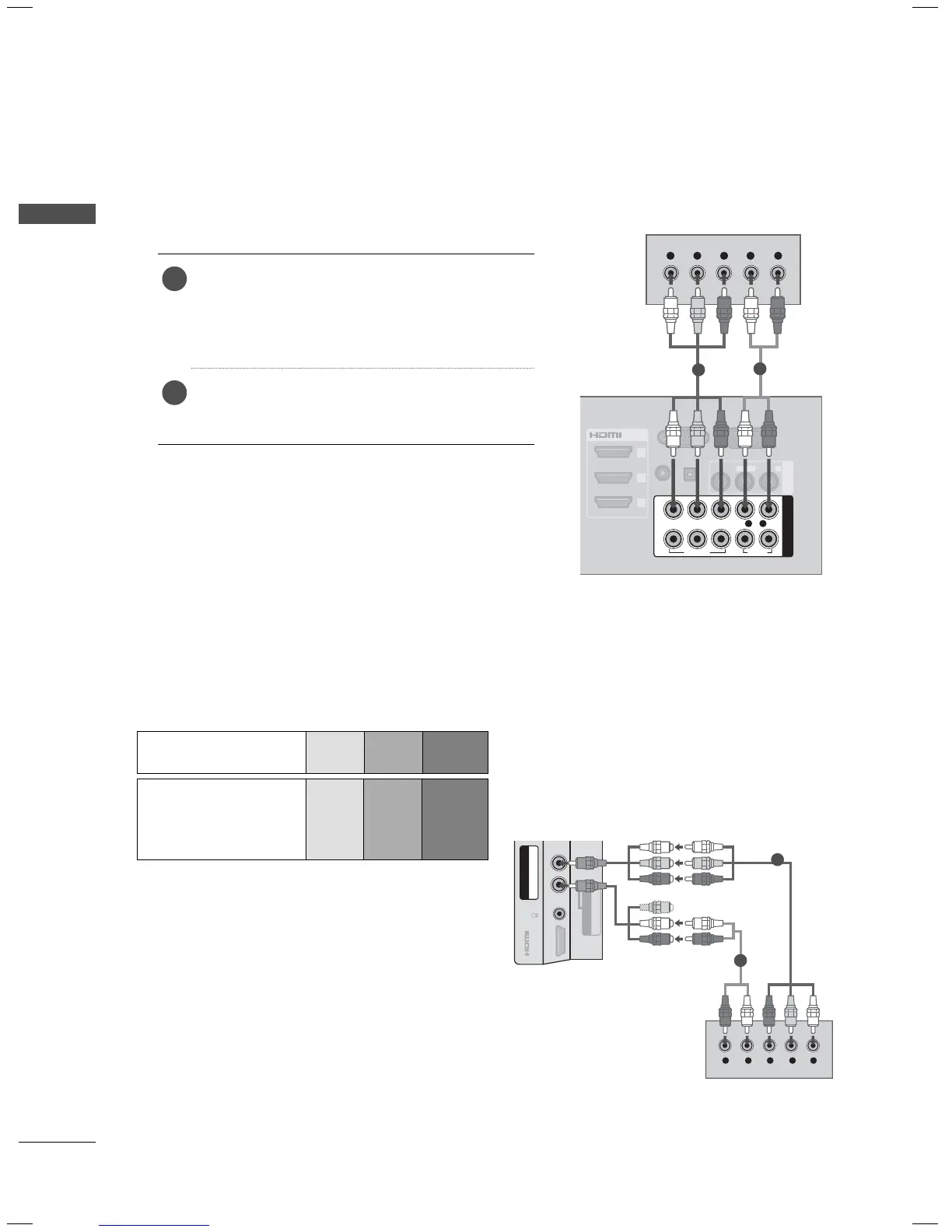

Component Input ports
To get better picture quality, connect a DVD player
to the component input ports as shown below.
Component ports on
the TV
YPB PR
Video output ports
on DVD player
YPB PR
YB-YR-Y
YCbCr
YPbPr
1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
DVD to the COMPONENT IN VIDEO 1, 2, or 3*
jacks on the TV.
Match the jack colors
(
Y = green, P
B = blue, and
P
R = red
)
.
2
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO 1, 2, or 3* jacks on the
TV.
2. How to use
ꔛ
Turn on the DVD player, insert a DVD.
ꔛ
Select the Component1, Component2, or
Component3* input source on the TV using the
INPUT button on the remote control.
ꔛ
Refer to the DVD player’s manual for operating
instructions.
Component Connection
* Component3: For LED LCD TV
For LED LCD TV

LG 42LE8500 Specifications

General

Display diagonal	42 \
Product color	Black
Audio system	Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.1 W
Power consumption (typical)	160 W
Annual energy consumption	138.23 kWh

Weight and Dimensions

Depth (with stand)	235.5 mm
Height (with stand)	704.5 mm
Weight (with stand)	27200 g
Depth (without stand)	34.5 mm
Width (without stand)	1013.3 mm
Height (without stand)	645.8 mm
Weight (without stand)	23000 g
