LG 42LE8500 User Manual

49
EXTERNAL EQUIPMENT SETUP
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's set-
tings.
1. How to connect
1
Connect the VGA output of the PC to the
RGB IN
(
PC
)
jack on the TV.
2
Connect PC audio output to the AUDIO IN
(
RGB/DVI
)
jack on the TV.
2. How to use
ꔛ
Turn on the PC and the TV.
ꔛ
Select the RGB-PC input source on the TV using
the
INPUT button on the remote control.

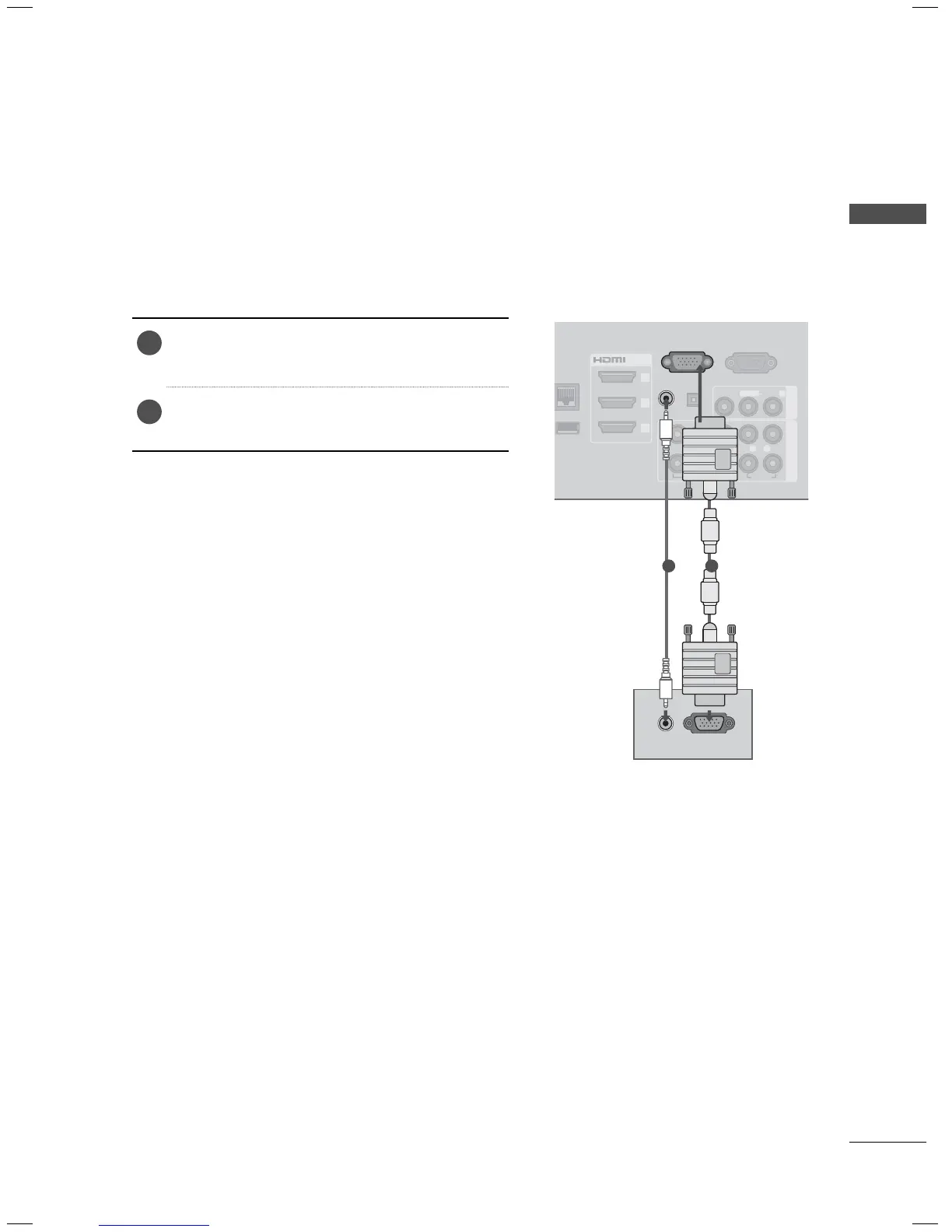

VGA (D-Sub 15 Pin) Connection
LAN
WIRELESS
CONTROL
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO OUT
2
1
RGB IN (PC)
RGB OUTPUT
AUDIO
(RGB/DVI)
AUDIO IN
YP B P R
L R
OPTICAL DIGITAL
RS-232C IN
CONTROL&SERVICE
ꔡ
12

LG 42LE8500 Specifications

General

Display diagonal	42 \
Product color	Black
Audio system	Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.1 W
Power consumption (typical)	160 W
Annual energy consumption	138.23 kWh

Weight and Dimensions

Depth (with stand)	235.5 mm
Height (with stand)	704.5 mm
Weight (with stand)	27200 g
Depth (without stand)	34.5 mm
Width (without stand)	1013.3 mm
Height (without stand)	645.8 mm
Weight (without stand)	23000 g
