LG 42LE8500 User Manual

43
EXTERNAL EQUIPMENT SETUP
VCR SETUP
Antenna Connection
ANTENNA
IN
CABLE
IN
L R
S-VIDEO VIDEO
AUDIO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna

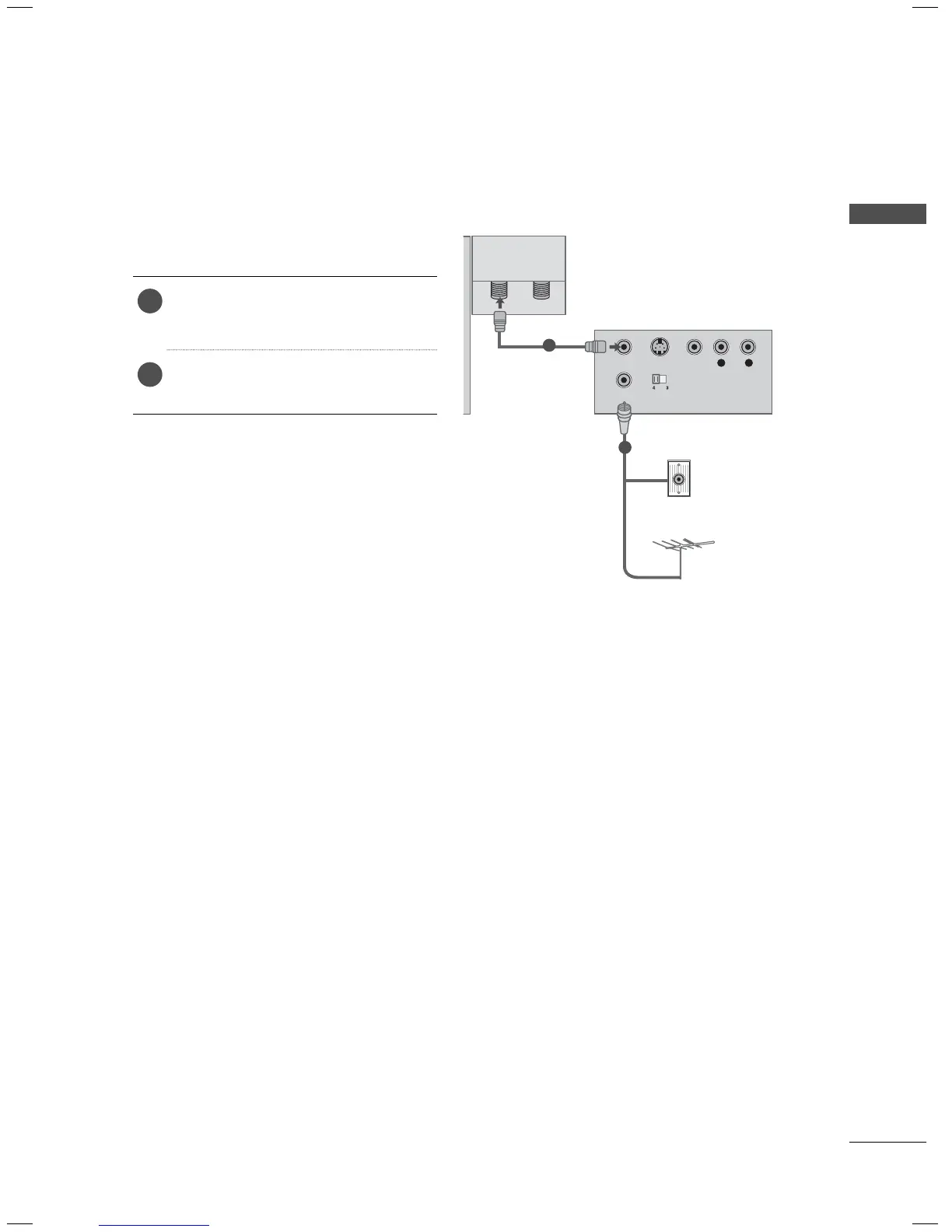

1. How to connect
1
Connect the RF antenna out socket
of the VCR to the ANTENNA/CABLE
IN socket on the TV.
2
Connect the antenna cable to the RF
antenna in socket of the VCR.
2. How to use
ꔛ
Set VCR output switch to 3 or 4 and
then tune TV to the same channel num-
ber.
ꔛ
Insert a video tape into the VCR and
press PLAY on the VCR (Refer to the
VCR owner’s manual).
1
2

LG 42LE8500 Specifications

General

Display diagonal	42 \
Product color	Black
Audio system	Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.1 W
Power consumption (typical)	160 W
Annual energy consumption	138.23 kWh

Weight and Dimensions

Depth (with stand)	235.5 mm
Height (with stand)	704.5 mm
Weight (with stand)	27200 g
Depth (without stand)	34.5 mm
Width (without stand)	1013.3 mm
Height (without stand)	645.8 mm
Weight (without stand)	23000 g
