LG 42LE8500 User Manual

47
EXTERNAL EQUIPMENT SETUP
AUDIO OUT CONNECTION
Send the TV’s audio to external audio equipment via the Audio Output port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL
AUDIO OUT terminal on the back of TV to a Home Theater (or amp).
!
NOTE
► When connecting with external audio equipment, such
as amplifiers or speakers, you can turn the TV speakers
off in the menu. (
►p.180)
CAUTION
► Do not look into the optical output port. Looking at
the laser beam may damage your vision.
► Audio with ACP (Audio Copy Protection) function may
block digital audio output.

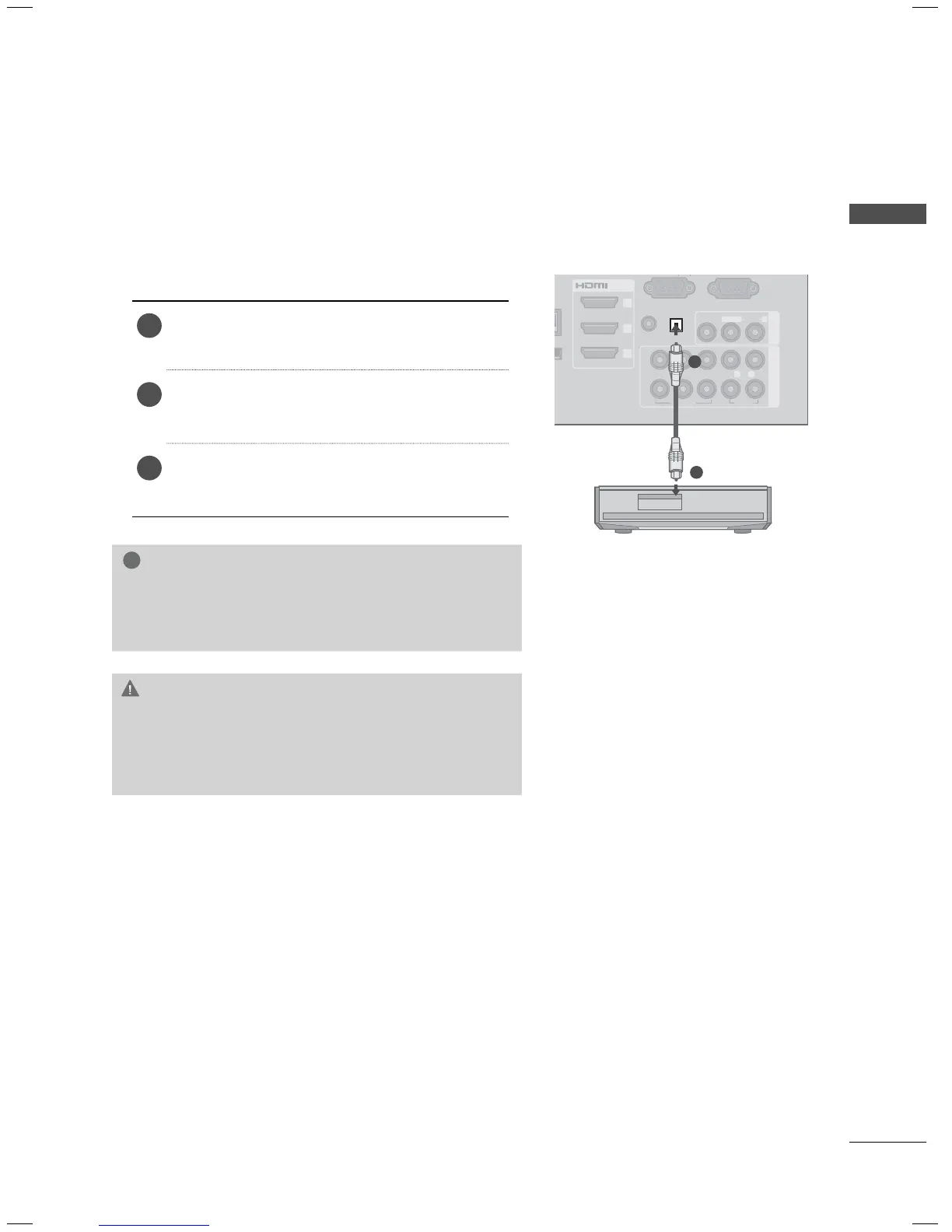

1. How to connect
1
Connect one end of the optical cable to the
TV port of OPTICAL DIGITAL AUDIO OUT.
2
Connect the other end of the optical cable to
the digital audio input on the audio equip-
ment.
3
Set the “TV Speaker option - Off” in the
AUDIO menu. (
►p.180). See the external audio
equipment instruction manual for operation.
G(C)
LESS
TROL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO IN
2
1
AUDIO OUT
YP B P R
L R
OPTICAL DIGITAL
CONTROL&SERVICE
1
2

LG 42LE8500 Specifications

General

Display diagonal	42 \
Product color	Black
Audio system	Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.1 W
Power consumption (typical)	160 W
Annual energy consumption	138.23 kWh

Weight and Dimensions

Depth (with stand)	235.5 mm
Height (with stand)	704.5 mm
Weight (with stand)	27200 g
Depth (without stand)	34.5 mm
Width (without stand)	1013.3 mm
Height (without stand)	645.8 mm
Weight (without stand)	23000 g
