45
EXTERNAL EQUIPMENT SETUP
OTHER A/V SOURCE SETUP

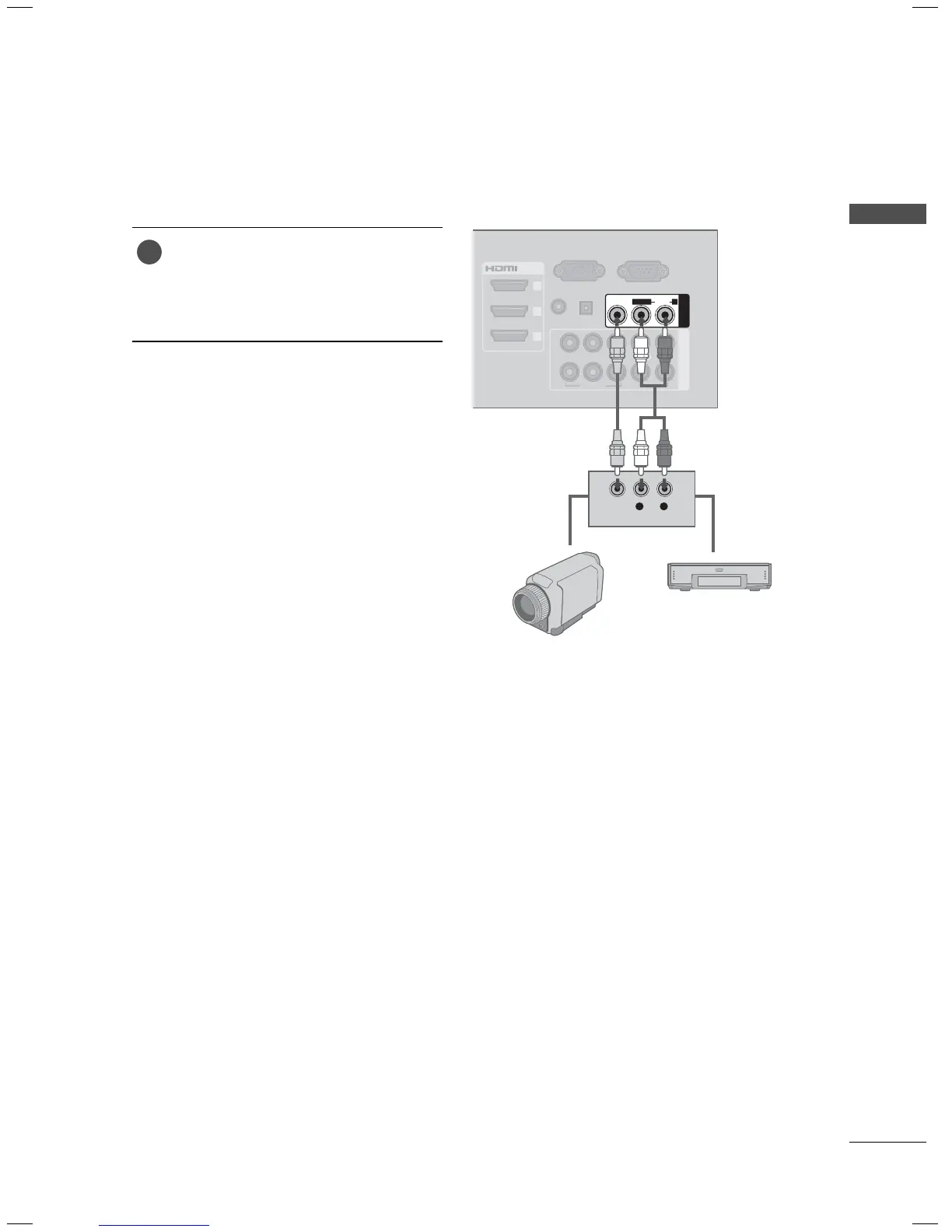

1. How to connect
1
Connect the AUDIO/VIDEO jacks
between TV and external equipment.
Match the jack colors
.
(
Video = yellow, Audio Left = white, and
Audio Right = red
)
2. How to use
ꔛ
Select the AV1 or AV2 input source on
the TV using the
INPUT button on the
remote control.
ꔛ
Operate the corresponding external
equipment.
RGB IN (PC)
SS
OL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO
AUDIO
COMPONENT IN
AUDIO IN AUDIO OUT
2
1
VIDEO AUDIO
L(MONO)
R
AV IN 1
YP B P R
L R
OPTICAL DIGITAL
RS-232C IN
( CONTROL&SERVICE)
L R
VIDEO
AUDIO
Camcorder
Video Game Set

LG 42LE8500 Specifications

General

Display diagonal	42 \
Product color	Black
Audio system	Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.1 W
Power consumption (typical)	160 W
Annual energy consumption	138.23 kWh

Weight and Dimensions

Depth (with stand)	235.5 mm
Height (with stand)	704.5 mm
Weight (with stand)	27200 g
Depth (without stand)	34.5 mm
Width (without stand)	1013.3 mm
Height (without stand)	645.8 mm
Weight (without stand)	23000 g
