Lombardini 11 LD Series User Manual

21
COMPILER TECO/ATL
REG. CODE
1-5302-296
MODEL N°
50510
DATE OF ISSUE
01.89
REVISION 02
ENDORSED
DATE
17.04.2003
8
9
10
VIII

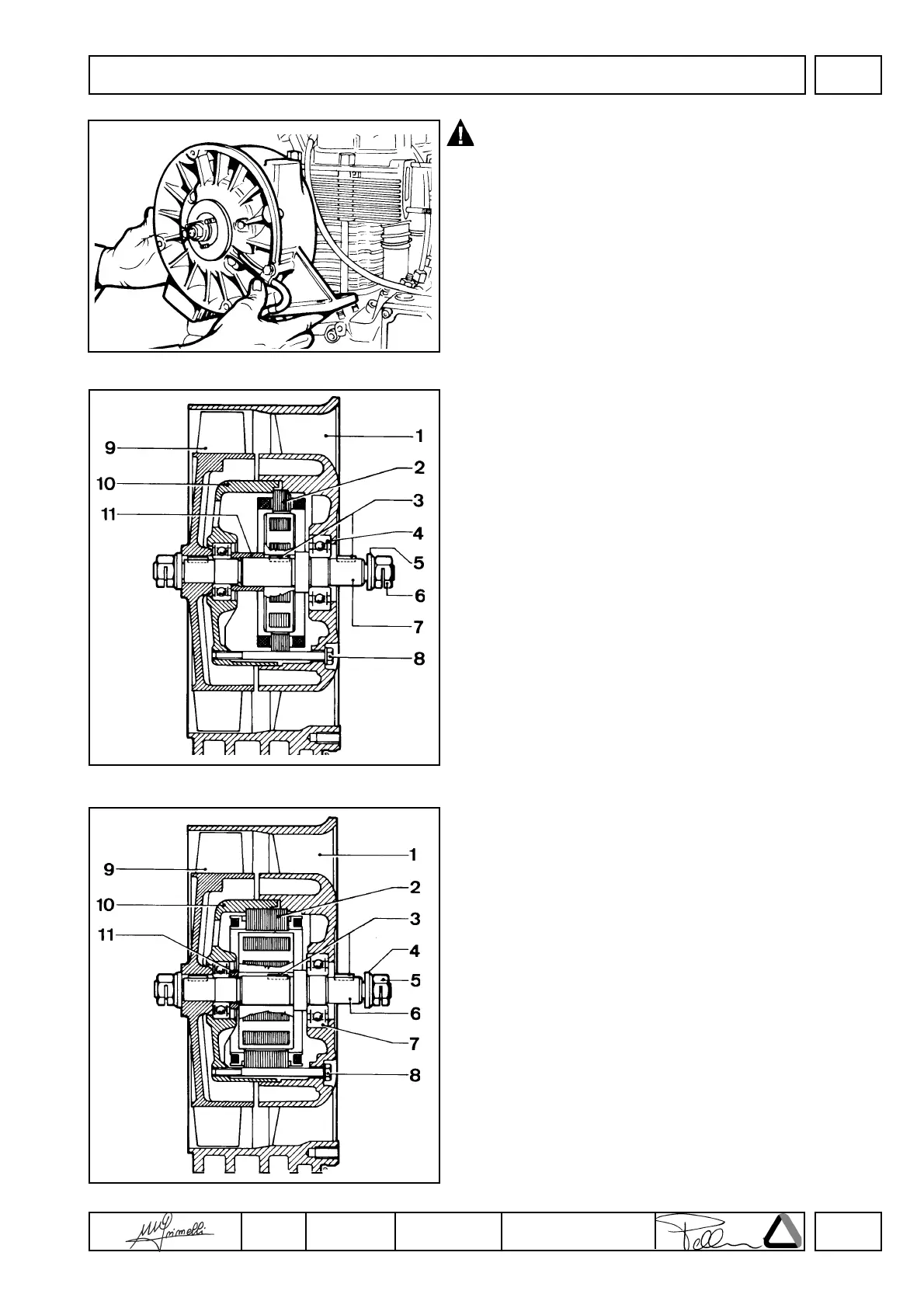

Before demounting the cooling fan, disconnect the positive
battery cable to prevent accidental short-circuits which could
consequently energize the starter motor.
Blower assembly
Data plate and voltage regulator are fixed outside the blower
housing. A 14 A or 21 A alternator is housed inside the stator. See
Page 56-57 and 60 for the alternator technical data. See Page 13 for
the cooling air volume.
Blower assembly components with 14 A alternator
1 Housing
2 14 A alternator
3 Key
4 Ball bearing
5 Washer
6 Nut
7 Shaft
8 Bolt
9 Fan
10 14 A alternator bell
11 Spacer
Blower assembly components with 21 A alternator
1 Housing
2 21 A alternator
3 Key
4 Washer
5 Nut
6 Shaft
7 Bearing
8 Bolt
9 Fan
10 21 A alternator beli
11 Spacer
DISASSEMBLY/REASSEMBLY
