CAMSHAFT

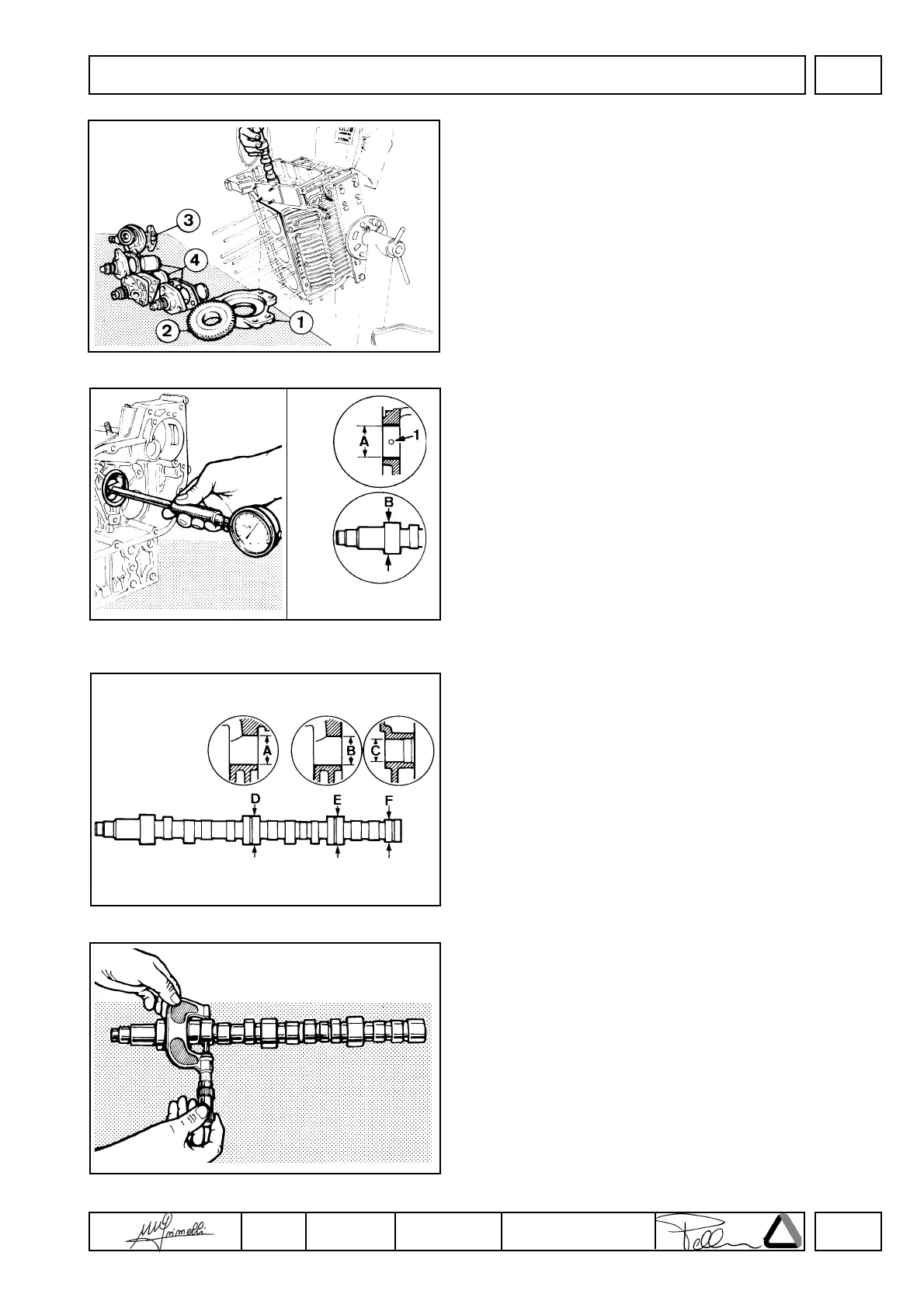

Camshaft removal
To pull out the camshaft simply remove bell 1, gear 2, fuel feeding
pump 3, injection pumps 4 and tilt the engine; in this position the
cam followers is not in contact with the camshaft thus making its
removal possible.
How to measure camshaft bearing and journal inside diameter
Dimensions (mm):
A = 44.000÷44.025
B = 43.940÷43.960
(A-B) = 0.040÷0.085 limit value = 0.170
Measure A with an inside micrometer gauge and B with an outside
micrometer gauge. When repiacing the bearing make the lubrication
hole 1 match with the corresponding crankcase bore.
Dimensions of camshaft journals and housings (mm)
A = 42.000÷42.025
B = 41.000÷41.025
C = 33.200÷33.220
D = 41.940÷41.960
E = 40.940÷40.960
F = 33.140÷33.160
Clearance (mm)
(A-D) = 0.040÷0.085 limìt value = 0.170
(B-E) = 0.040÷0.085 limit value = 0.170
(C-F) = 0.040÷0.080 limit value = 0.160
Use an outside micrometer gauge to measure camshaft lobe
height.
DISASSEMBLY/REASSEMBLY
