31
COMPILER TECO/ATL
REG. CODE
1-5302-296
MODEL N°
50510
DATE OF ISSUE
01.89
REVISION 02
ENDORSED
DATE
17.04.2003
55
56
57 58
VIII

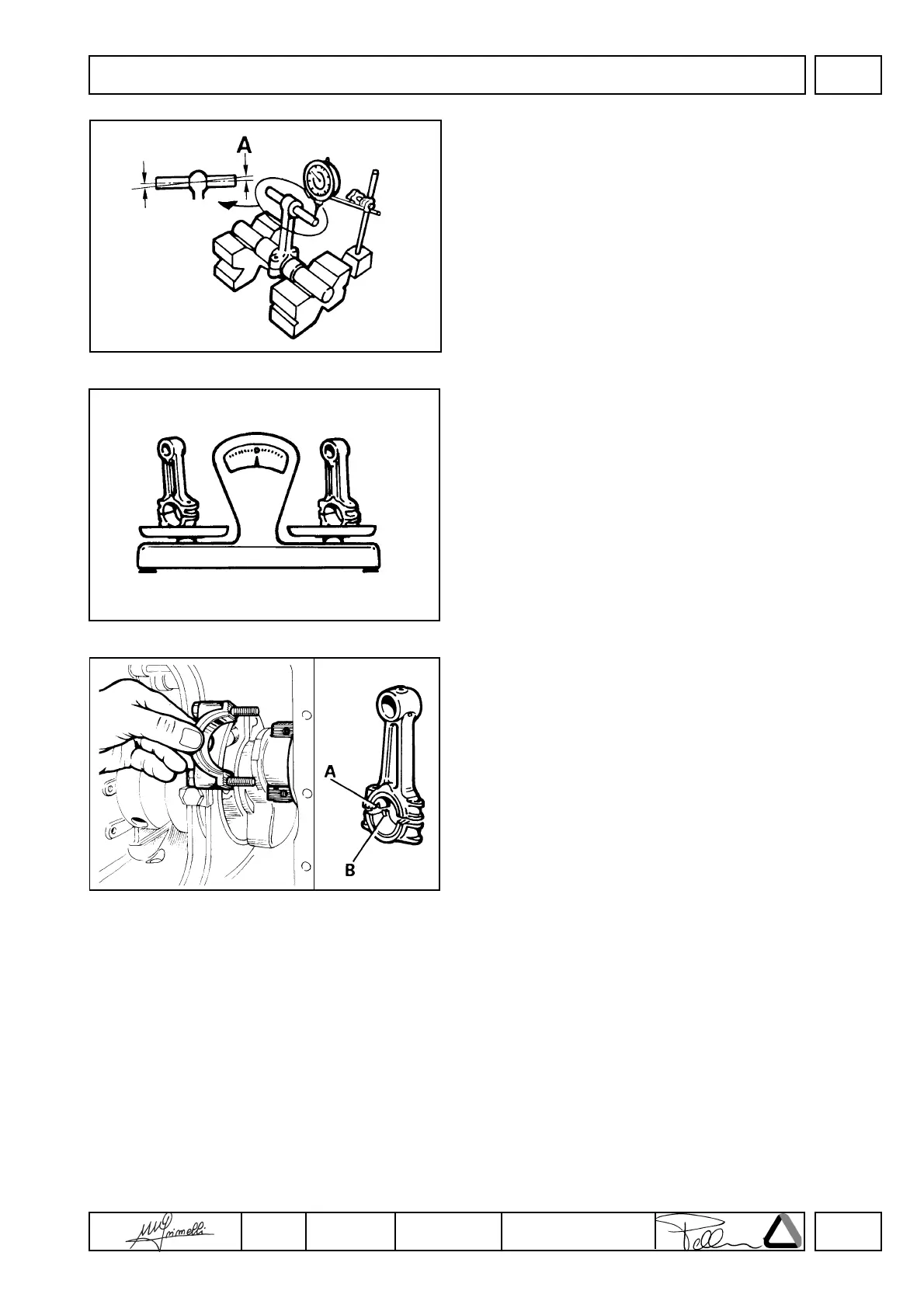

Connecting rod alignment
Check alignment of small end and big end bearing bores using fitted
mandrels; axial mis-alignment A = 0.02 mm; maximum limit 0.05
mm. Moderale warpage may be corrected by gradually working with
a press.
Connecting rod weight
Weigh connecting rods when replacing them in order to avoid
unbalance.
The dìfference in weight should not exceed 10 g.
Connecting rod big end bearing
Both centering notches A and B must be on the same side when
refitting.
Tighten bolts al 4 Kgm.
See page 35 for dimensions.
DISASSEMBLY/REASSEMBLY
