XI

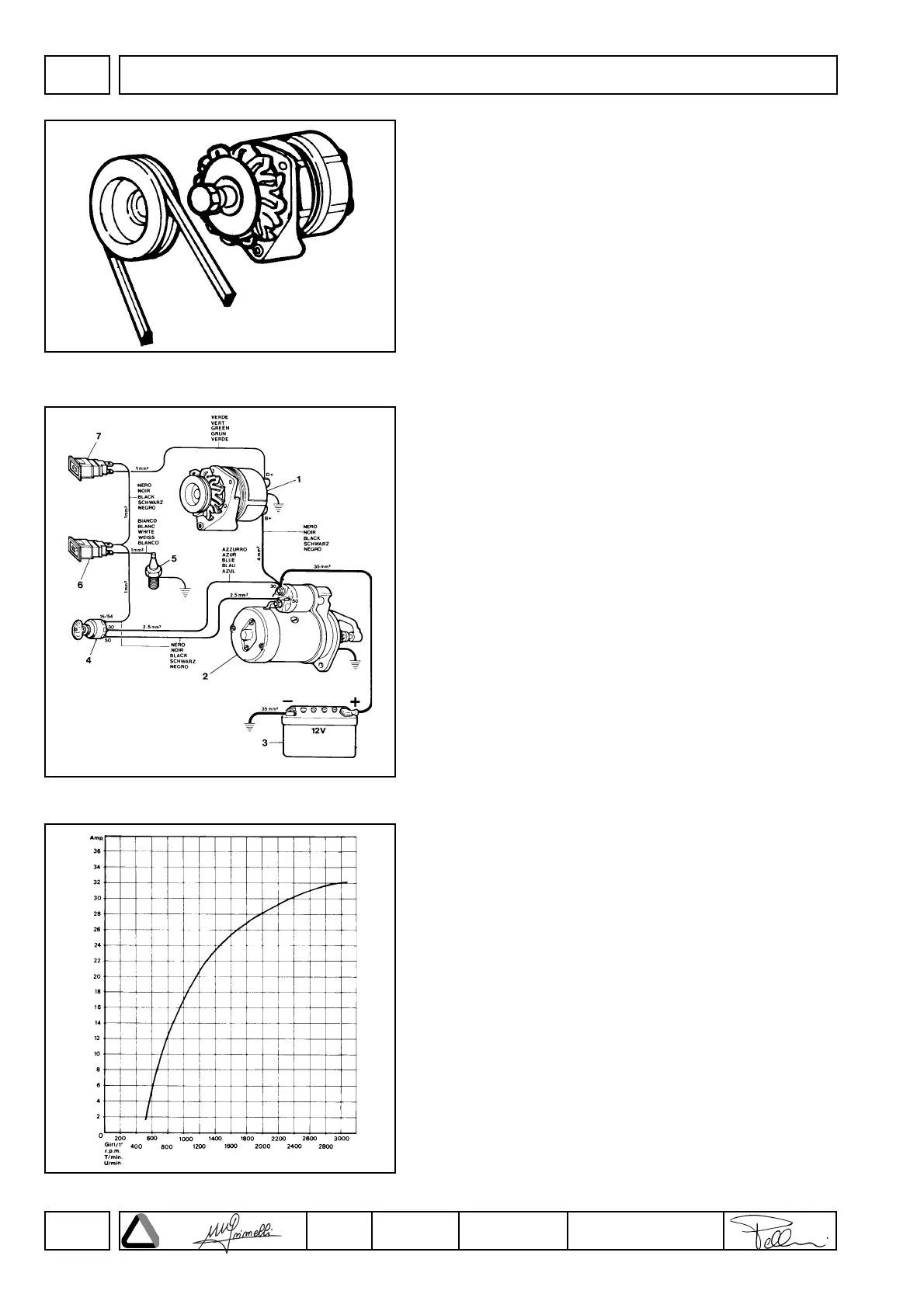

Alternator type Bosch Gl 14 V, 33 A
The alternator is ot the claw-pole rotor type with built-in voltage
reguiator. The rotating motion is conveyed by the engine through a 'V'
belt and sheave.
Features: 12V rated voltage. Max. current 33A at 7000 alternator
r.p.m.. RH direction of rotation.
Alternator type Bosch Gil 14 V, 33 A layout
Components:
1 Alternator
2 Starting motor
3 Battery
4 Key switch
5 Pressure switch
6 Oil pressure warning light
7 Battery charging light
14 V, 33 A Bosch G1 alternator battery charger curve
The curve was obtained at room temperature of +25°C. Battery
terminal voltage is 12.5 V.
The r.p.m. shown on the table refers to the engine.
ELECTRIC SYSTEM
