During repair operations, when using compressed air, wear
eye protection.

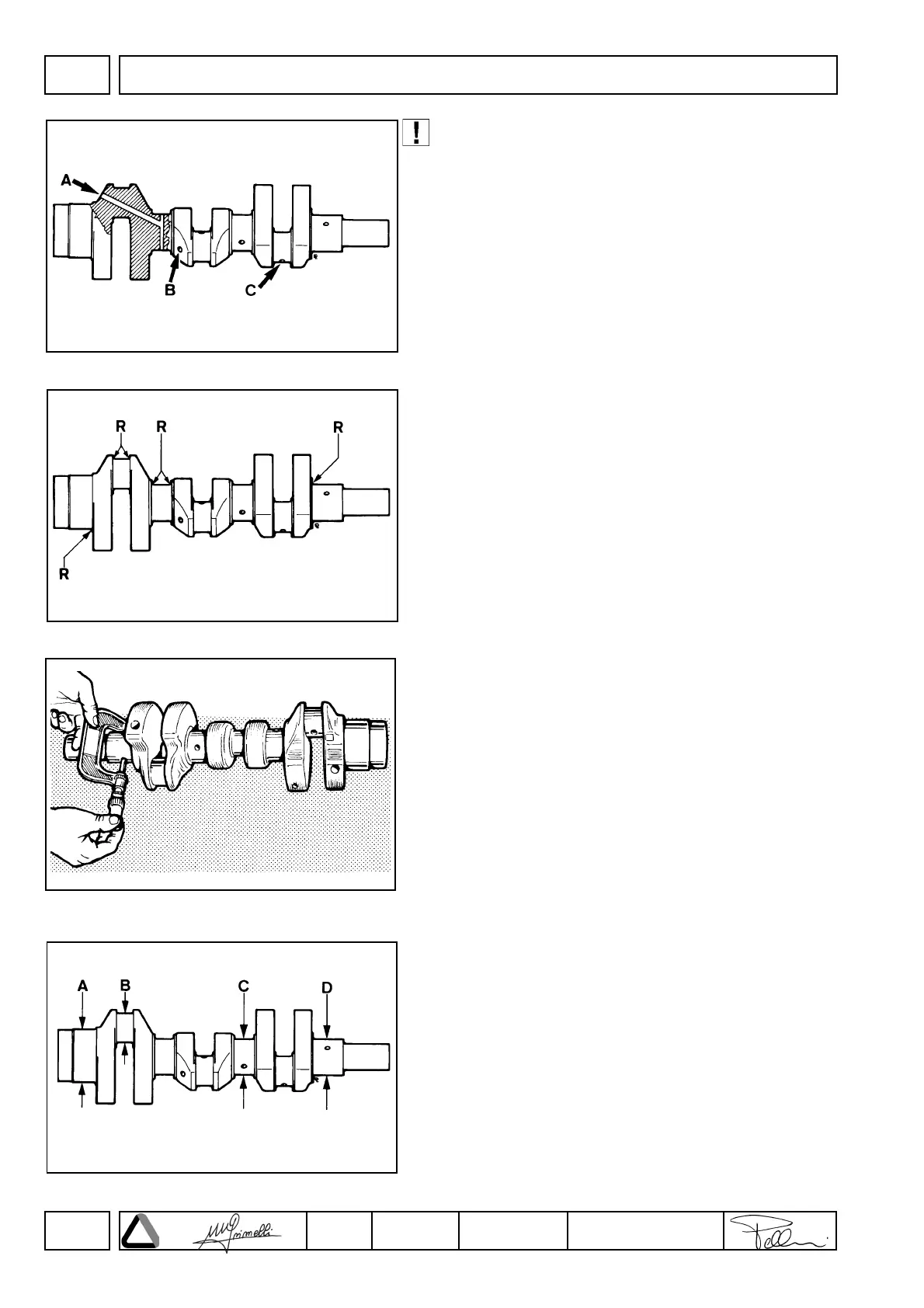

Crankshaft lubrication ducts
Remove plugs, clean ducts A, B and C with a pointed tool and blow
in compressed air.
Screw plugs back in place and check for sealing.
Crankshaft journal radius
The radius R connecting journal to shoulders is 2.8÷3.2 mm.
Note: When grinding main journals or crank pins restore the R value
to original specification.
CheckIng main journals and crank pins
Use an outside micrometer gauge.
Main journal and crank pin diameter (mm)
A = 80.781÷80.800
B = 45.500÷45.316
C = 55.350÷55.370
D = 54.931÷54.950
DISASSEMBLY/REASSEMBLY
