62
COMPILER TECO/ATL
REG. CODE
1-5302-296
MODEL N°
50510
DATE OF ISSUE
01.89
REVISION 02
ENDORSED
DATE
17.04.2003
164
165
166
XII
SETTINGS

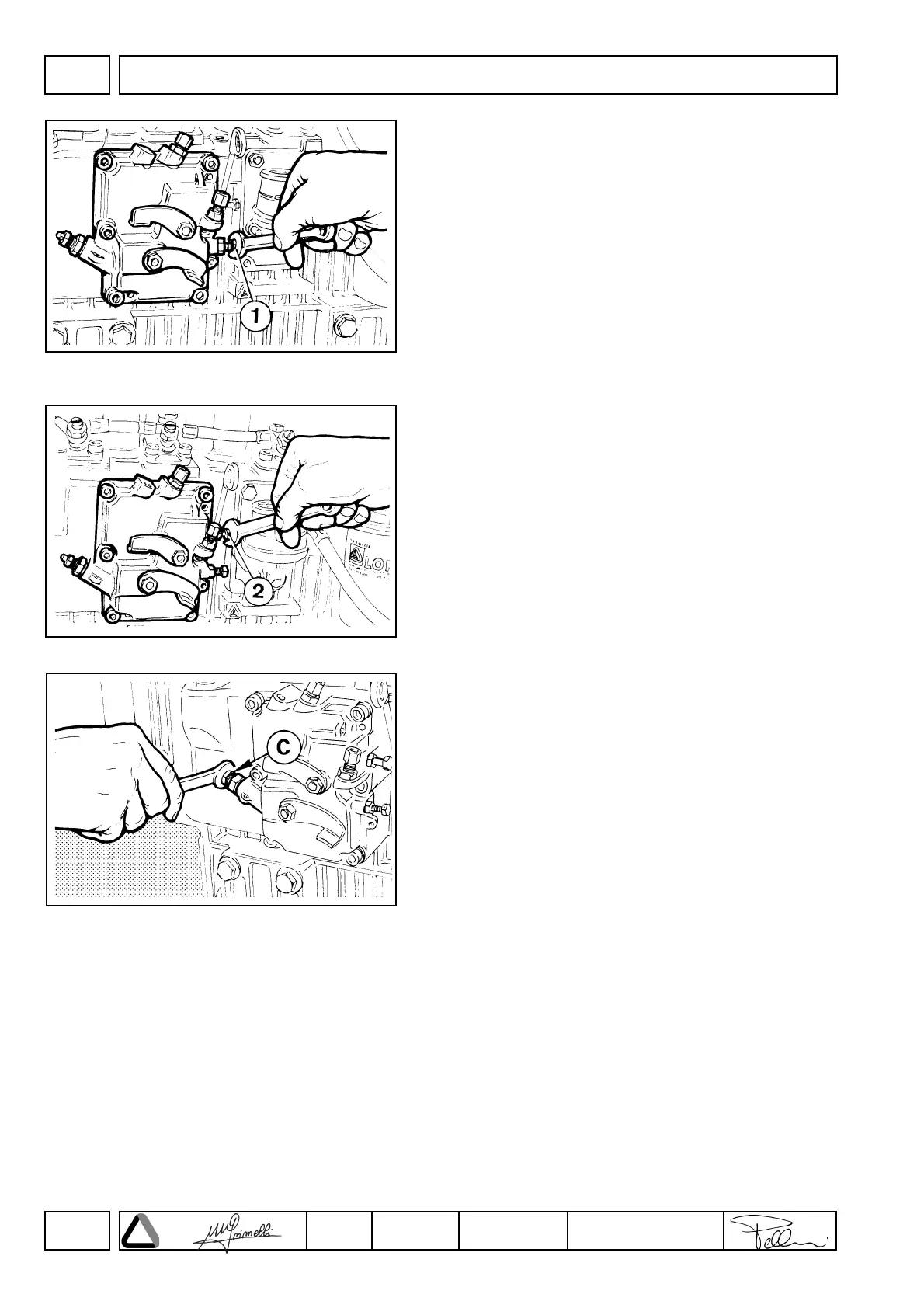

1) ldling speed setting in no-load conditions (standard)
After filling with oil and fuel, start the engine and let it warm up for 10
minutes. Adjust idling speed at 800÷900 r.p. m. by turning setscrew
1; then tighten lock nut.
2) Full speed setting in no-load conditions (standard)
After setting idle speed turn screw 2 and set full speed in no-load
conditions at 3200 r.p.m.; then tighten lock nut.
Note: When the engine reaches the pre-set power full speed
stabilizes at 3000 r.p.m.
Injection pump delivery setting
This setting should be performed at the torque dynamometer. lf not,
setting is only approximate.
The following steps are required:
Loosen delivery limiting device C by 5 turns.
Bring engine to full speed in no-load conditions i.e. 3200 r.p.m..
Tighten limiting device until the engine shows a drop in r.p.m..
Unscrew limiting device C by 1½ turn. Tighten lock nut.
Note: lf the engine, under full load, generates too much smoke
tighten C; if no smoke is observed at the exhaust and the engine
cannot reach its full power unscrew C.
SETTINGS
