57
COMPILER TECO/ATL
REG. CODE
1-5302-296
MODEL N°
50510
DATE OF ISSUE
01.89
REVISION 02
ENDORSED
DATE
17.04.2003
150
149
148
XI

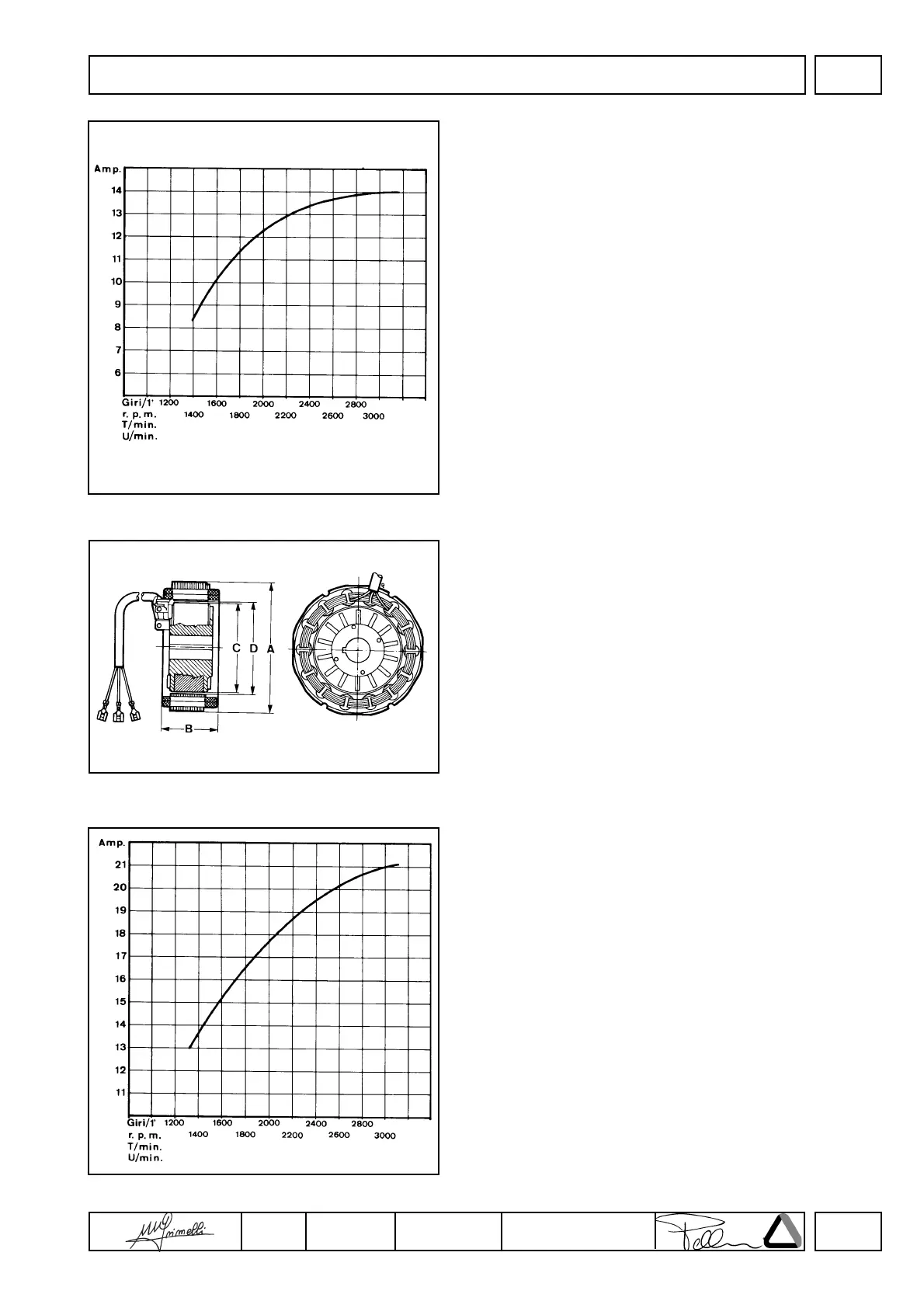

Alternator battery charger curve (12.5 V, 14A)
The curve was obtained at room temperature of + 25°C with 12.5V
battery voltage.
Note: The r.p.m. shown in the table refers to the engine.
12 V, 21 A Alternator
Features a fixed armature winding housed in the bell inside the
blower stator.
The rotating permanent magnet inductor is located in the fan
spindle.
See page 21.
Diameter size (mm):
A = 111.701÷111.788
B = 49.500÷52.000
C = 76.226÷76.300
D = 77.400÷77.474
Note: Clearance between armature winding and inductor (air gap)
should be 0.47÷0.63 mm.
Alternator battery charger curve (12 V, 21 A)
The curve was obtained at room temperature of + 25°C with 12.5V
battery voltage.
Note: The r.p.m. shown in the table refers to the engine.
ELECTRIC SYSTEM
