X

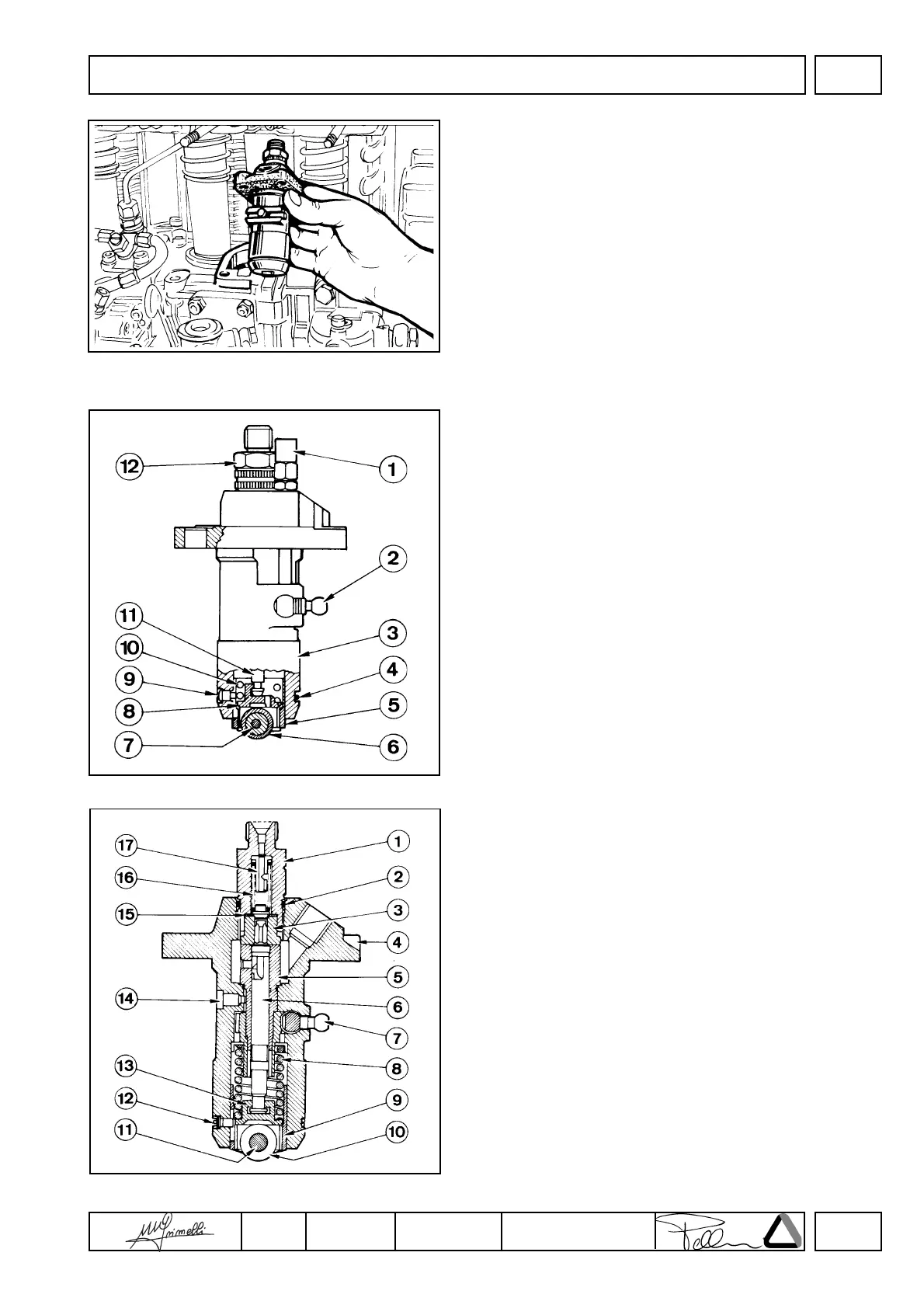

INJECTION PUMP
The Bosch injection system consists of three pumps each feeding
one cylinder.
The pumps mounted on the crankcase, corresponding to their
proper cylinder, are directly operated by the camshaft.
Injection pump type LOMBARDINI - OMAP
For 11LD625-3 and 11LD626-3
Components:
1 Rack rod lock
2 Rack rod
3 Pump body
4 Tappet stop ring
5 Tappet body
6 External roller
7 Internal roller
8 Retainer
9 Stop pin
10 Spring
11 Plunger
12 Delivery union
Injection pump type Bosch
For 11 LD535-3 and 11 LD625-3
1 Delivery union 2 Rubber ring
3 Delivery valve 4 Pump body
5 Piston 6 Plunger
7 Rack rod 8 Spring
9 Tappet body 10 Roller
11 Journal 12 Pin
13 Spring retainer 14 Eccentric
15 Copper gasket 16 Spring
17 Filler
FUEL SYSTEM
