Lombardini 11 LD Series User Manual

40
COMPILER TECO/ATL
REG. CODE
1-5302-296
MODEL N°
50510
DATE OF ISSUE
01.89
REVISION 02
ENDORSED
DATE
17.04.2003
92
89
90
91
VIII

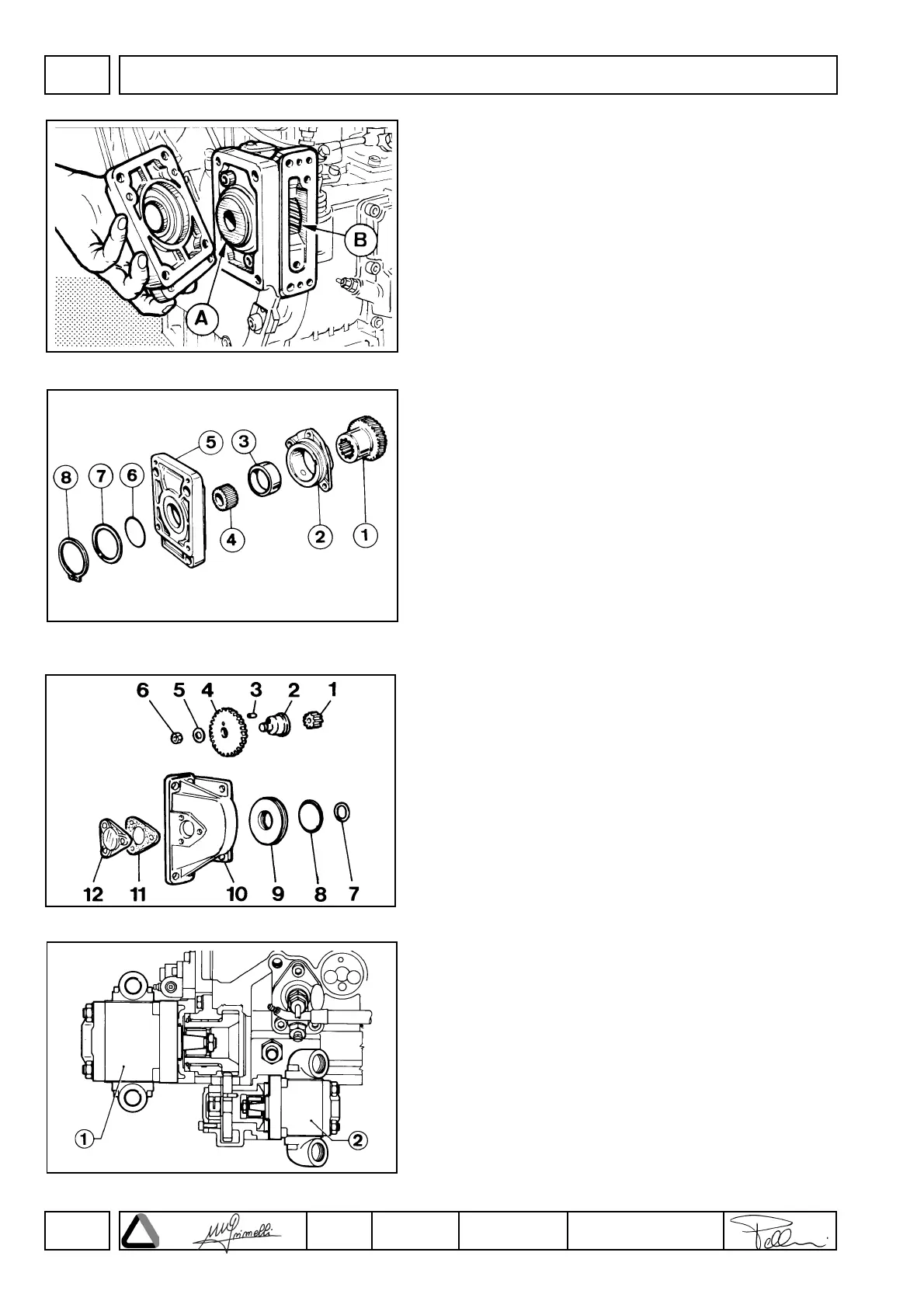

Hydraulic pump p.t.o.
A hydraulic pump of group 1 or 2 can be installed on the gear side A,
3rd p.t.o.
A group 1 hydraulic pump can be installed at the 4th p.t.o. B.
Hydraulic pump 3rd p.t.o., group 2
Components:
1 Gear
2 Gear support
3 Bearing
4 Drive
5 Flange
6 Washer
7 Seal ring
8 Circlip
A max torque of 3.96 Kgm can be obtained from this p.t.o.
Hydraulic pump 4th p.t.o., group 1
Components:
1 Drive 7 Seal ring
2 Control shaft 8 Seal ring
3 Pin 9 Centering ring
4 Gear 10 Bracket
5 Washer 11 Gasket
6 Nut 12 Cover
A max. torque of 2.43 Kgm can be obtained from this p.t.o.
Use of 3rd and 4th p.t.o.
1 Hydraulic pump, group 2, mounted at 3rd p.t.o.
2 Hydraulic pump, group 1, mounted at 4th p.t.o.
Total power obtainable from 3rd and 4th plo. is 17.7 HP.
Ratio for both p.t.o. compared to the engine r.p.m. is 1:1.
DISASSEMBLY/REASSEMBLY
