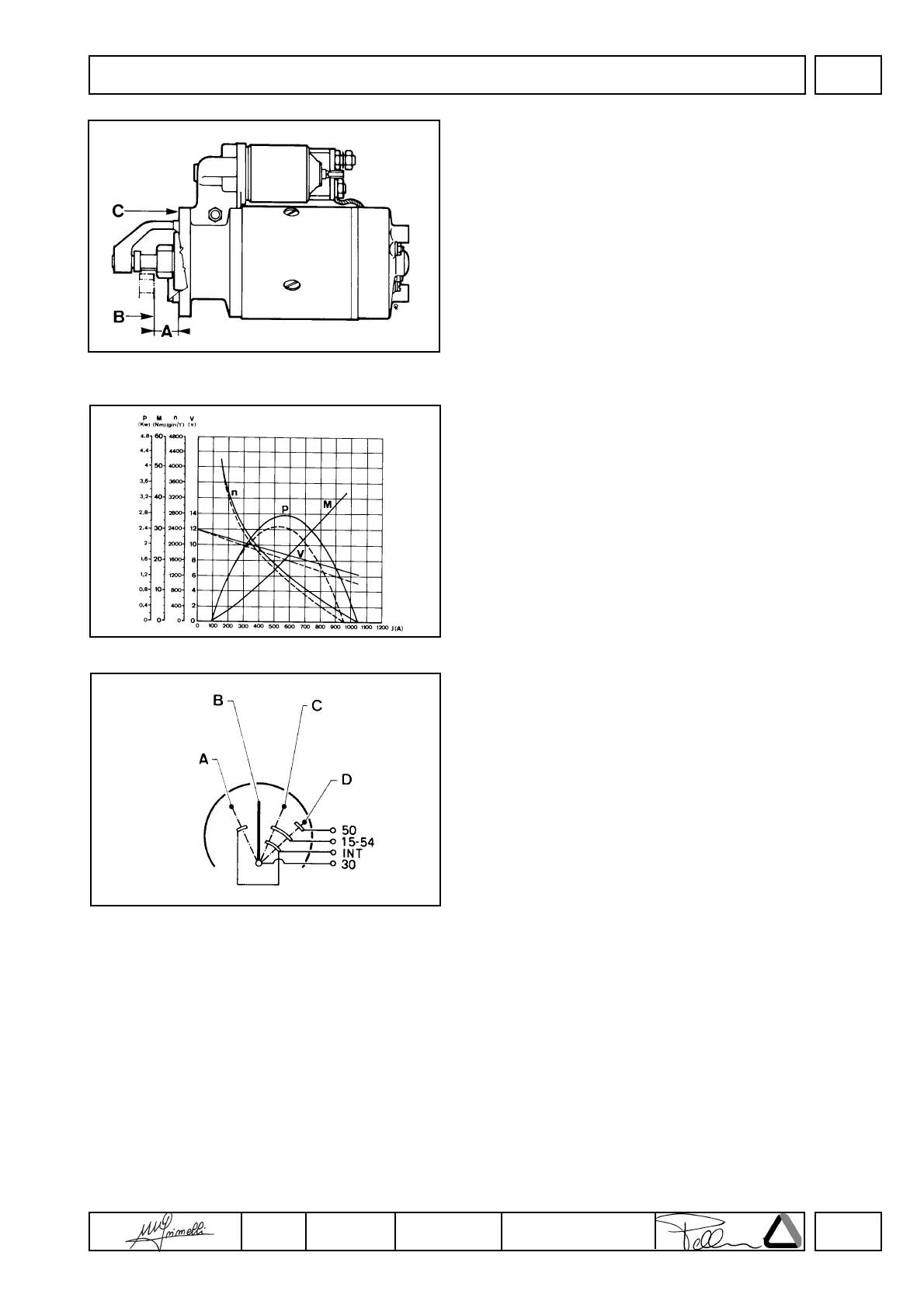

STARTING MOTOR
Bosch tipo JF (R) 12 V, class 2.5
RH direction of rotation
A = 23÷24 mm
B = Ring gear plane
C = Flange plane
Warning: The flywheel should not project from ring gear plane B.
Note: Apply to Bosch Service Centers for any type of repair.
Characteristic curves for starting motor type Bosch JF (R) 12 V
Curves were obtained at room temperature of + 20°C with 88 Ah bat-
teries.
V = Motor terminal voltage in Volt
P = Power in kW
C = Torque in N/m
N = Motor speed in r.p.m.
J (A) = Absorbed current in Ampere
Starting motor layout
A = Parking lights
B = Stop
C = Run
D = Start
