Channel Calibration
MXD70 Electrodeless Conductivity
Setup and Operating Guide
- 23 -

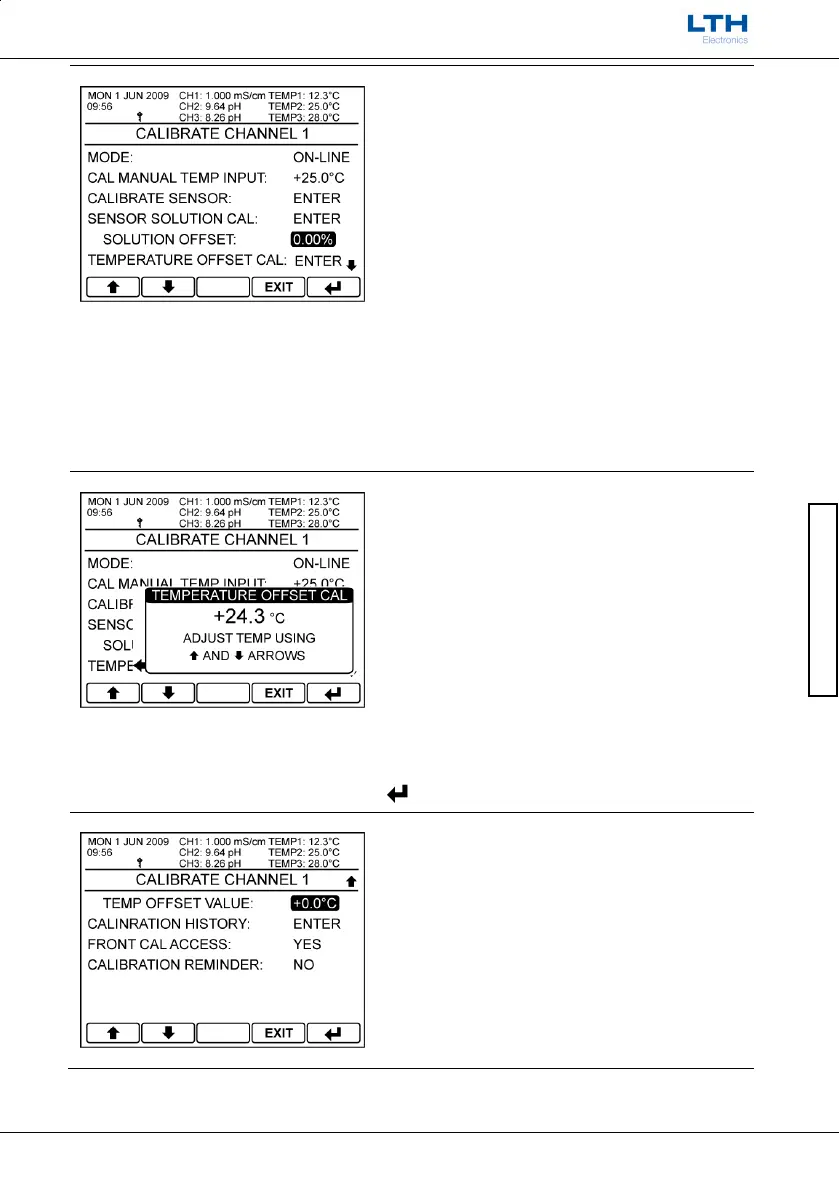

Channel Calibration
Sensor Slope or Offset Value
Depending on the channel’s units, the sensor slope
or offset value currently being used. The value will
change depending on the result of the sensor
solution calibration.
Cannot be edited
A slope value of 100% indicates that no adjustment
has been made to the sensor calibration.
A slope value of greater than 100% indicates that the
sensor reading has had to be increased to match the
known input.
A slope value of less than 100% indicates that the
sensor reading has had to be decreased to match the
known input.
Temperature Offset Calibration
The temperature offset calibration enables the user
to adjust the temperature reading to match a known
input.
The current temperature reading can be seen in the
pop-up window and is adjusted by pressing the up
and down arrows. When the reading is correct press
the enter button to store the calibration. The
calculated offset is shown in the next menu entry.
/ – Adjust the Reading Up or Down
EXIT
– Cancel
– Save Calibration
Temperature Offset Value
The temperature offset value currently being used.
The value will change depending on the result of the
temperature offset calibration.
Cannot be edited
