Channel Calibration
- 24 -
MXD70 Auxiliary mA Input
Setup and Operating Guide
Channel Calibration

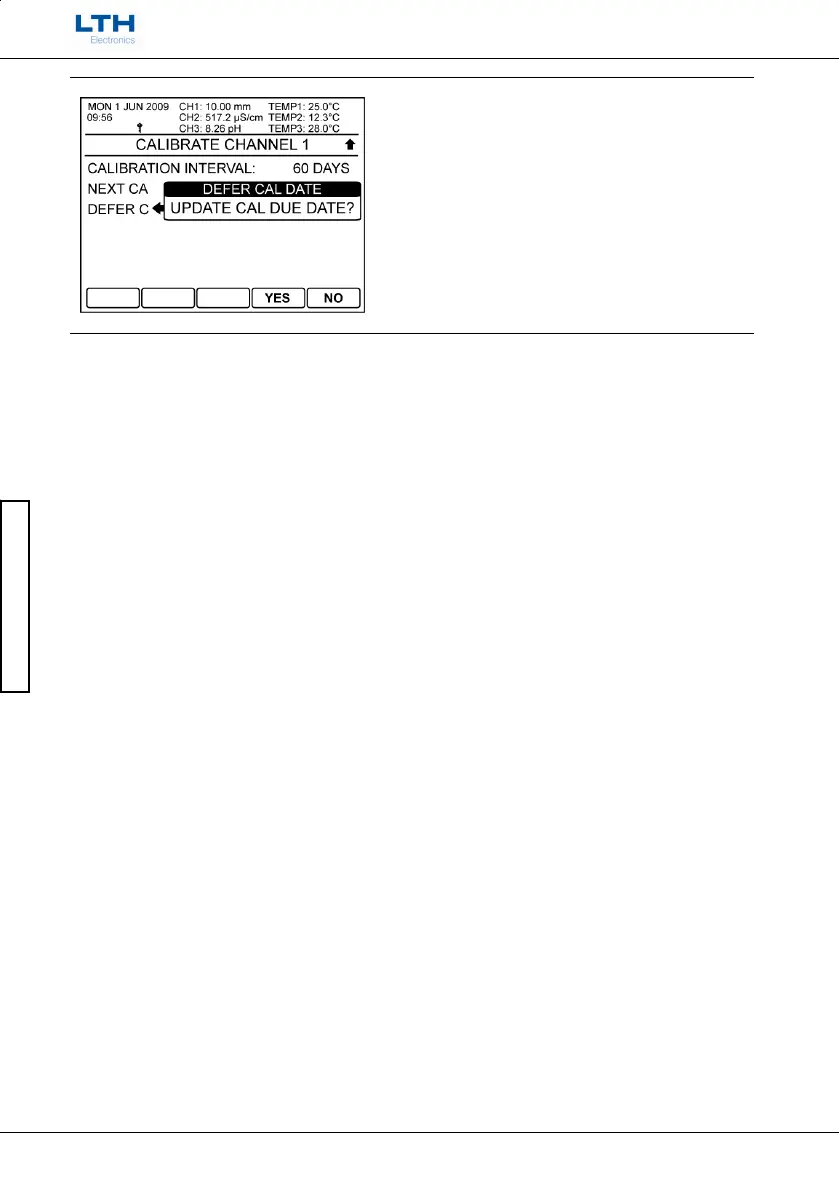

Defer Calibration Date
Turns off the alarm and increases the calibration
interval by an extra 7 days.
Only appears once the calibration interval has
expired.
YES
– Increase Interval
NO
– Cance
l
410
412
