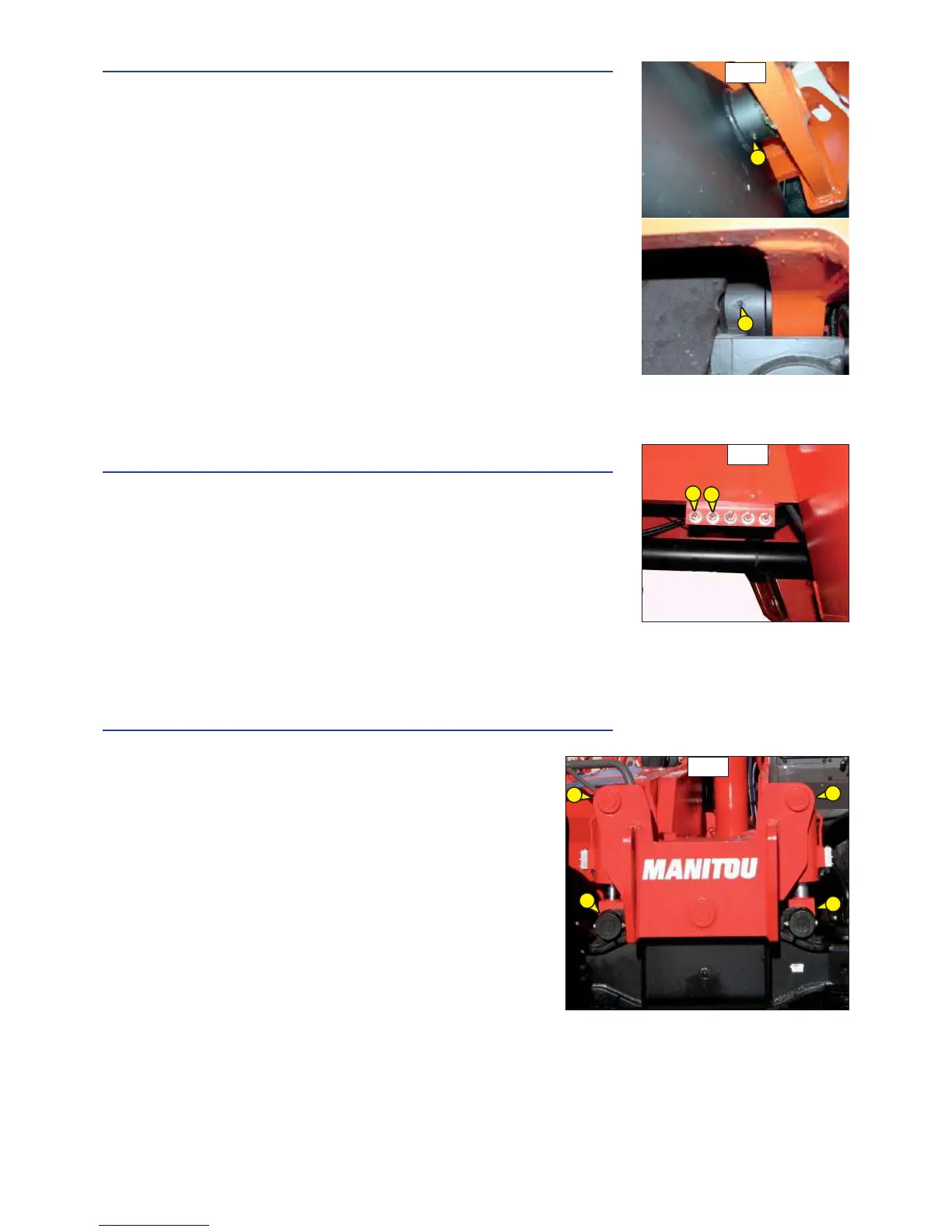

B14 - FRONT AXLE OSCILLATION
GREASE
- Clean and lubricate the points 1 (2 lubricators) (fig. B14) with grease (see: 3 - MAINTENANCE:
LUBRICANTS AND FUEL) and remove the surplus of grease.
B15 - REAR AXLE OSCILLATION
GREASE
- Clean and lubricate the points 1 (2 lubricators) (fig. B15) with grease (see: 3 - MAINTENANCE:
LUBRICANTS AND FUEL) and remove the surplus of grease.
B16 - TILTING CORRECTOR
GREASE
- Clean and lubricate the following points with grease (see: 3 - MAINTENANCE:
LUBRICANTS AND FUEL) and remove the surplus of grease.
1 - Lubricator of the tilting corrector cylinder foot axle (1 lubricator) (fig. B16).
2 - Lubricator of the tilting corrector cylinder head axle (1 lubricator) (fig. B16).
B16
1
2
1
1
2
1
1
B14
B15
1
