2-32

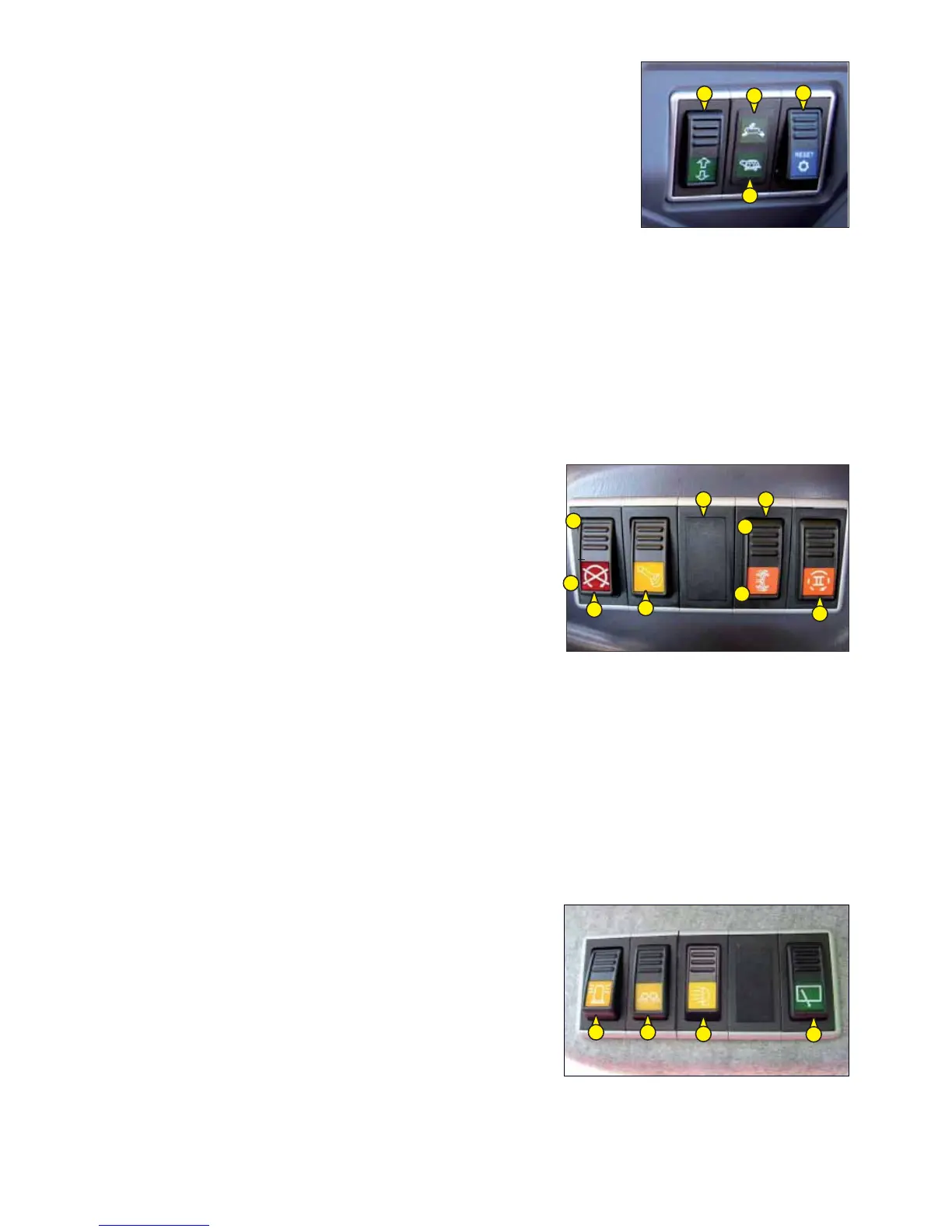

E - RUNNING SELECTOR (SLOW-FAST) .
The machine has two speeds :
- Slow (work site speed)
- Fast (for road travel)
To change the speed follow the instructions given below:
- stop vehicle movement completely
- keep the I.C. engine running at minimum speed
- set the reverse gear in idle (see point)
- push the brake pedal down all the way and press the fast-slow E button till the
respective light E1 or E2 switches on.
If the forward or reverse speed is not engaged, follow the instructions given below :
- set the reversal lever in the required position (Forwards - Backwards)
- discharge pressure from the brake pedal
- press the “RESET TRANSMISSION” button D to engage in the required direction.
- If the vehicle does not move, accelerate the I.C. engine slowly and gradually till
the truck starts moving.
These instructions must be followed for proper working of the transmission.
F - RESET TRANSMISION.
In normal operating conditions, the button is illuminated.
For more detailed information on use, see point “E”.
O - OPTIONAL DISCONNECT SWITCH (accessories hydraulic block)
The two-position switch is used for activating or deactivating the optional.
With the switch pressed in pos. “O1” (red indicator light On) the Optional/
accessories hydraulic block function is activated.
With the switch pressed in pos. “O2” (red indicator light Off) the Optional/
accessories hydraulic block function is deactivated.
P - STOPPING HYDRAULIC MOVEMENTS
While travelling on roads, it is advisable (compulsory in Italy and Germany) to stop
all hydraulic movements.
The indicator lights up when the movements are being used.
Q - LEVELLING CONTROL PUSHBUTTON
The pushbutton has two positions; it controls the truck level correction movements
to the right and left.
- pressing the button in position “Q1” will level the truck on the left
- pressing the button in position “Q2” will level the truck on the right
Verify the correct levelling using the sprit level placed in the cab .
N. B.: The levelling operation is not possible when the telescopic boom is inclined
beyond approx. 30° from the ground.
R - 2°/3° HYDRAULIC EXIT SWITCH (OPTIONAL)
The switch has two or three positions depending on the machine setup.
It is used for switching the hydraulic control for making two or three hydraulic
movements using the accessory.
S - ROTARY BEACON SWITCH
Two-position switch for turning the rotary beacon light on/off.
T - FRONT AND REAR WORK LIGHTS SWITCH (OPTIONAL)
Three-position switch for turning the work lights On/off.
U - SWITCH FOR WORK LIGHT AT THE TOP OF THE BOOM (OPTIONAL)
Z - SWITCH FOR ROOFTOP WINDOW WIPER (OPTIONAL)
T
Z
S
U
P
R
01
Q
02
O
X
Q1
Q2
E
E1
F
E2
