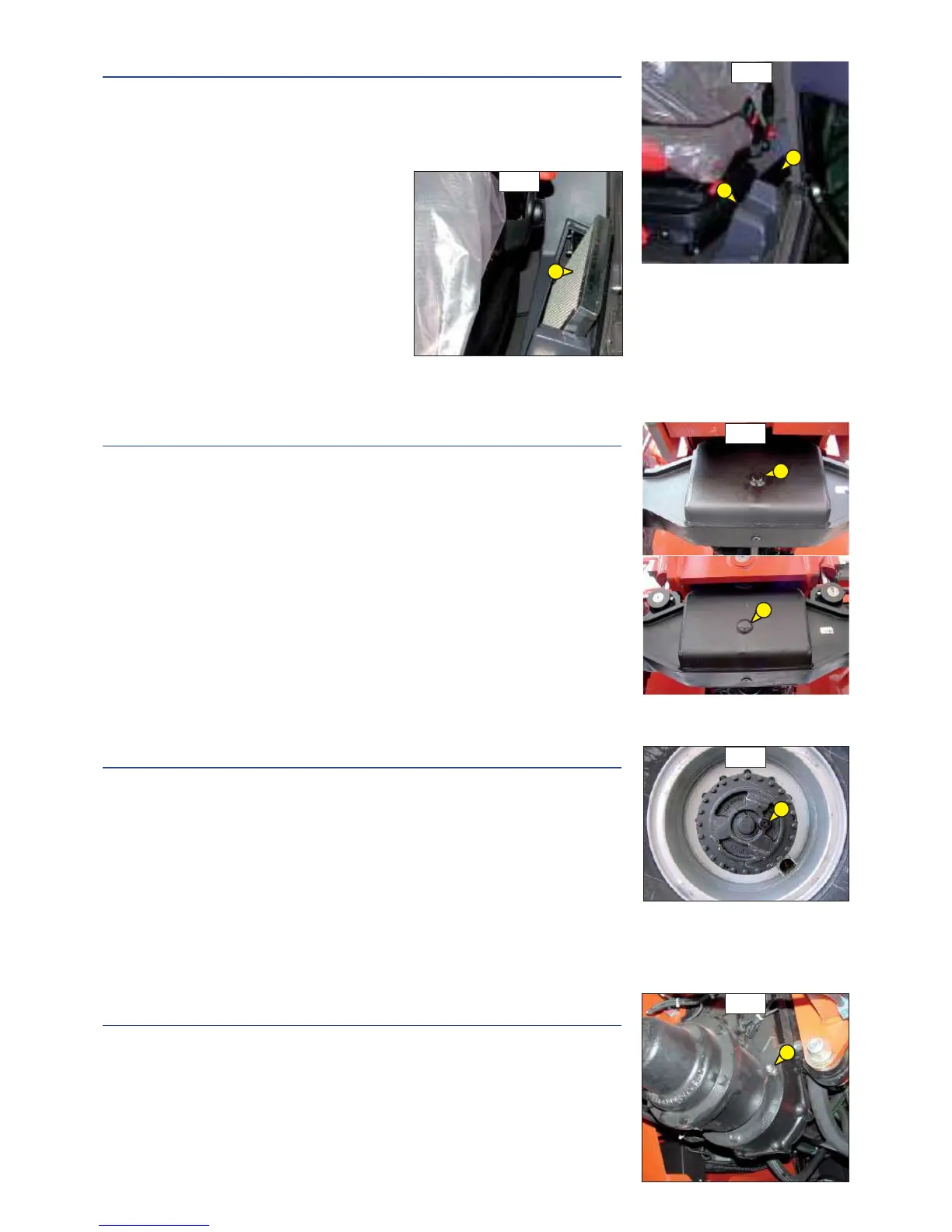

C2 - CAB VENTILATION FILTER (OPTION AIR CONDITIONING)
CHANGE
- Unscrew thumbscrew 1 (fig. C2/1) and remove protective guard back 2 (fig. C2/1).
- Lift out cabin ventilation filter 3 (fig. C2/2) and replace it with a new one
(see: 3 - MAINTENANCE: FILTERS AND BELTS).
- Refit the protective casing.
C3 - FRONT AND REAR DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (fig. C3). The oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the filler port
2 (fig. C3).
- Replace and tighten the level plug 1 (fig. C3) (tightening torque 34 to 49 N.m).
- Repeat this operation for the rear axle differential.
C4 - FRONT AND REAR WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each front wheel reducer.
- Place level plug 1 (fig. C4) in the horizontal position.
- Remove the level plug, the oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Replace and tighten the level plug 1 (fig. C4) (tightening torque 34 to 49 N.m).
- Repeat this operation on each rear wheel reducer.
C5 - GEAR BOX OIL LEVEL
CHECK
Position the lift truck on a horizontal surface, with the combustion engine
switched off.
- Remove level plug 1 (Fig. C5), the oil must reach the level of the opening.
- Top up with oil, if necessary (See the “LUBRICANTS” Table).
- Refit and retighten level plug 1 (Fig. C5).
