2-26

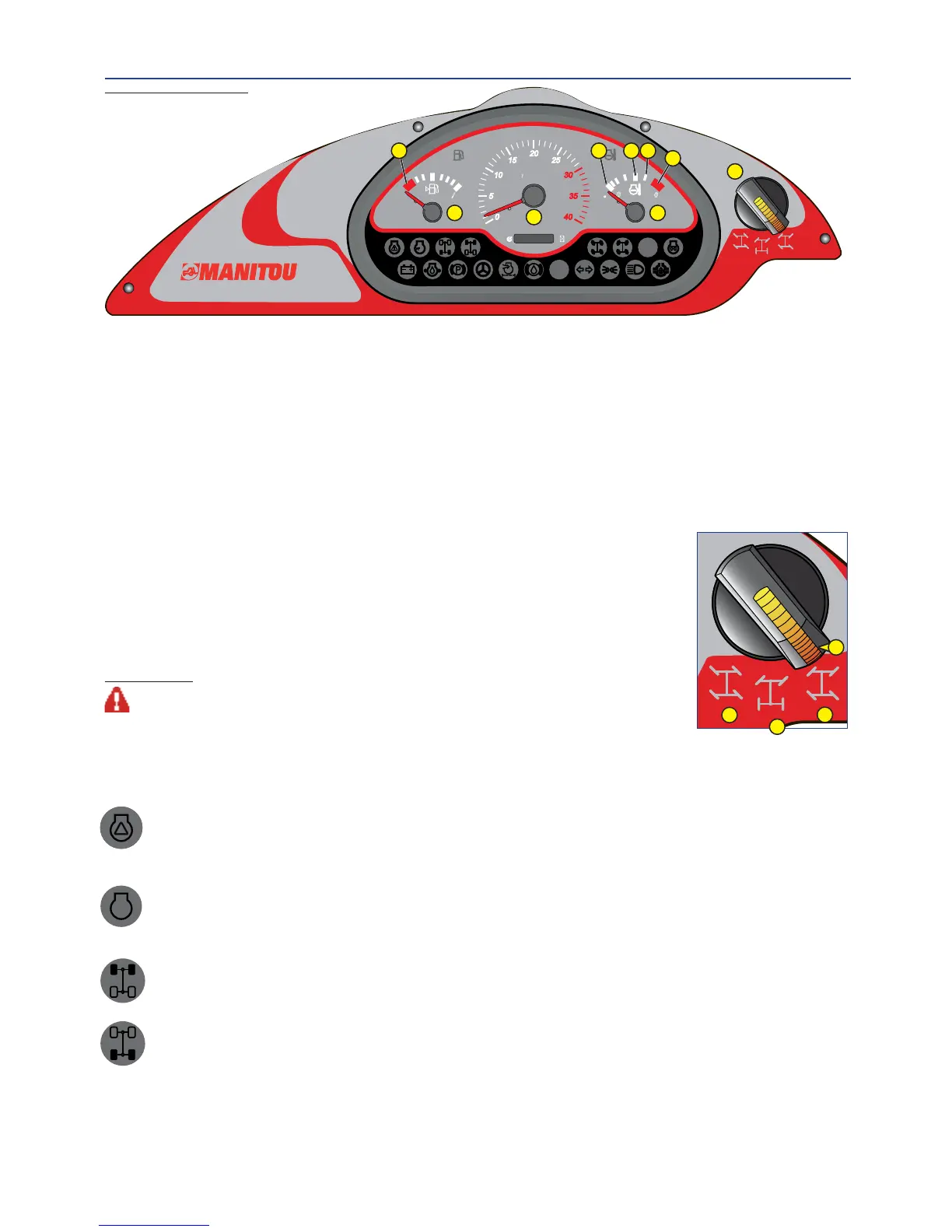

3 - CONTROL AND SIGNAL LIGHTS PANEL
CONTROL INSTRUMENTS
A - I.C. ENGINE WATER TEMPERATURE
Temperature zone:
A1 - White zone (0° - 50°) Use the lift truck with moderation, wait for temperature to increase before normal operation.
A2 - White zone (50° - 100°) Use lift truck normally
A3 - White/red zone (100° - 105°) Use lift truck with moderation, monitor the temperature.
A4 - Red zone (105° - 120°) Stop the lift truck, look for the cause of overheating.
B - HOUR METER AND REV COUNTER
C - FUEL LEVEL
Red zone C1 indicates that you are using the reserve supply and that time of use is limited.
D - STEERING TYPES SELECTOR
To select from the three different steering options turn knob D as follows:
D1: front and rear steering wheels.
D2: front steering wheels.
D3: wheel in oblique position (crab steering).
Before selecting a type of steering, check the ALIGNMENT OF THE REAR AND FRONT WHEELS .
SIGNAL LIGHTS
A permanently lit or flashing warning lamp, with the engine running, is the sign of an operating fault. The lighting of some
lamps may be accompanied by an audible signal. Do not ignore this warning, consult your dealer without delay.
If one of the warning lamps comes on while the lift truck is in motion, stop the lift truck under the safest possible conditions.
When activating the electrical system of the lift truck, all the red and orange lamps and the panel’s buzzer must light to indicate their
good working order. If one of the red lamps or the buzzer does not function, carry out the necessary repairs.
RED I.C. ENGINE WARNING INDICATOR LIGHT
If the lamp comes on or flashes while the lift truck is in operation, a diagnostic fault has been detected. The lift truck will operate
in reduced mode. Consult your dealer without delay.
YELLOW I.C. ENGINE PREHEATING INDICATOR LIGHT
Preheating is necessary. When the lift truck is switched on, the lamp comes on for 2 seconds and off as soon as preheating is
ended. Start the lift truck’s I.C. engine.
REAR WHEELS ALIGNMENT YELLOW INDICATOR LIGHT
Not used
FRONT WHEELS ALIGNMENT GREEN INDICATOR LIGHT
Not used
