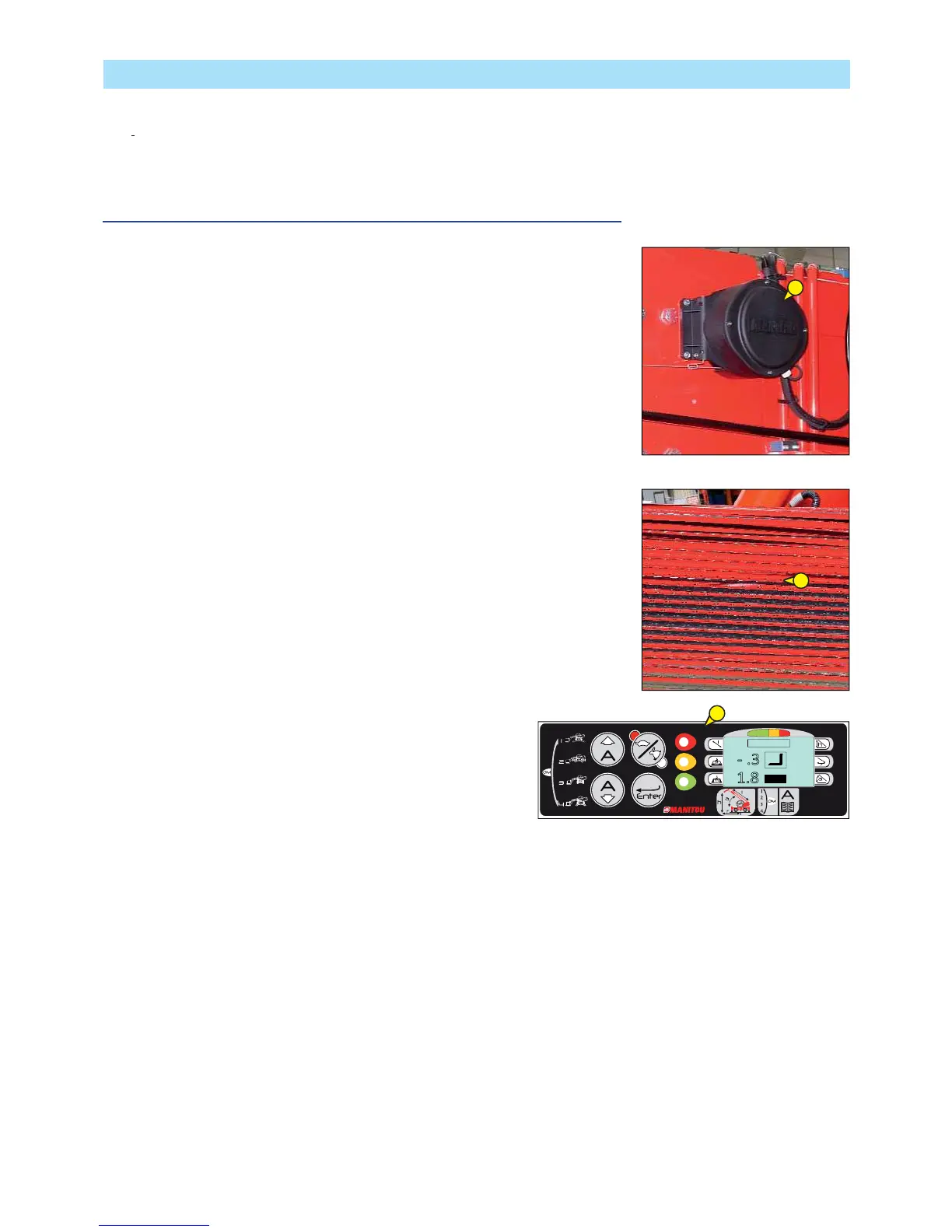

1 - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE (SAFETY SYSTEM LMI)
Components location on the machine.
The sensors are positioned on the boom and cylinders in order to detect data when working, while the main unit and
the control panel are located inside the cabin.
1 - Length/Angle sensor: on the left side of the boom.
2 - Nr. 4 Pressure Transducers: on Main and Compensation cylinders.
3 - Control Panel: in the cabin.
2
1
3
