2-31

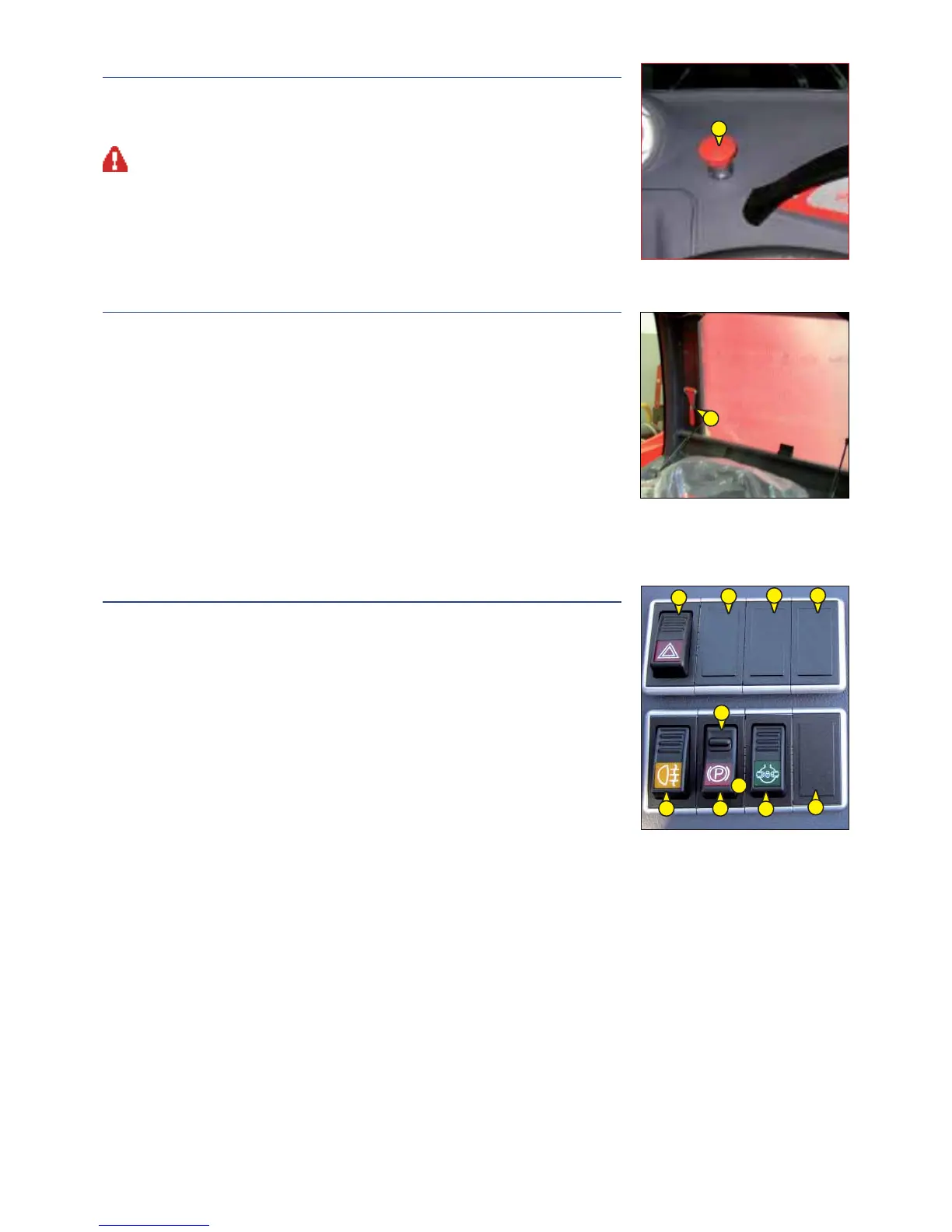

5 - EMERGENCY STOP BUTTON
- In the event of danger, it lets you stop the I.C. Engine and thereby cut out all hydraulic
movements.
- Pull the button to disable it before restarting the lift truck.
Be ready for hydraulic movements suddenly stopping when you press this button.
6 - EMERGENCY EXIT
IEMERGENCY HAMMERUse the emergency hammer to break one of the windows in the event
that it is impossible to exit the cab by the door or by opening the rear window.
7 - SWITCHES
NOTE: The location of the switches may vary depending on the options.
A - PARKING BRAKE SWITCH
Two-position luminous switch with safety block.
The parking brake acts on the front axle.
- To release the brake, press the pushbutton in position A1”.
- To lock the brake, press the pushbutton in position A2.
To release the brake from A2 to A1, while pressing the switch, act on safety lock .
B - REAR FOG LIGHT SWITCH
Two-position luminous switch.
C - EMERGENCY WARNING LIGHTS SWITCH
D - CENTRAL DIFFERENTIAL BLOCK PUSHBUTTON
Differential block pushbutton is used when the machine does not have optimum road
grip.
On selecting the button the central differential of the truck is blocked and torque is
transmitted to both the front and rear axles.
To block the central differential, carry out the following operations :
- stop carriage movement completely
- keep the I.C. engine running at minimum speed
- push the brake pedal all the way and press the differential block pushbutton “D”
- keeping the differential block pushbutton “D” pressed, gradually accelerate the I.C. engine to
obtain the required movement.
When the green light is ON it indicates selection of slow speed.
X - OPTION
5
B A
X
X
X
A1
A2
X
D
C
