Manitowoc Grove RT9130E-2 Service And Maintenance Manual

Grove Published 11-22-2016, Control # 345-12 4-31
RT9130E-2 SERVICE MANUAL BOOM
4

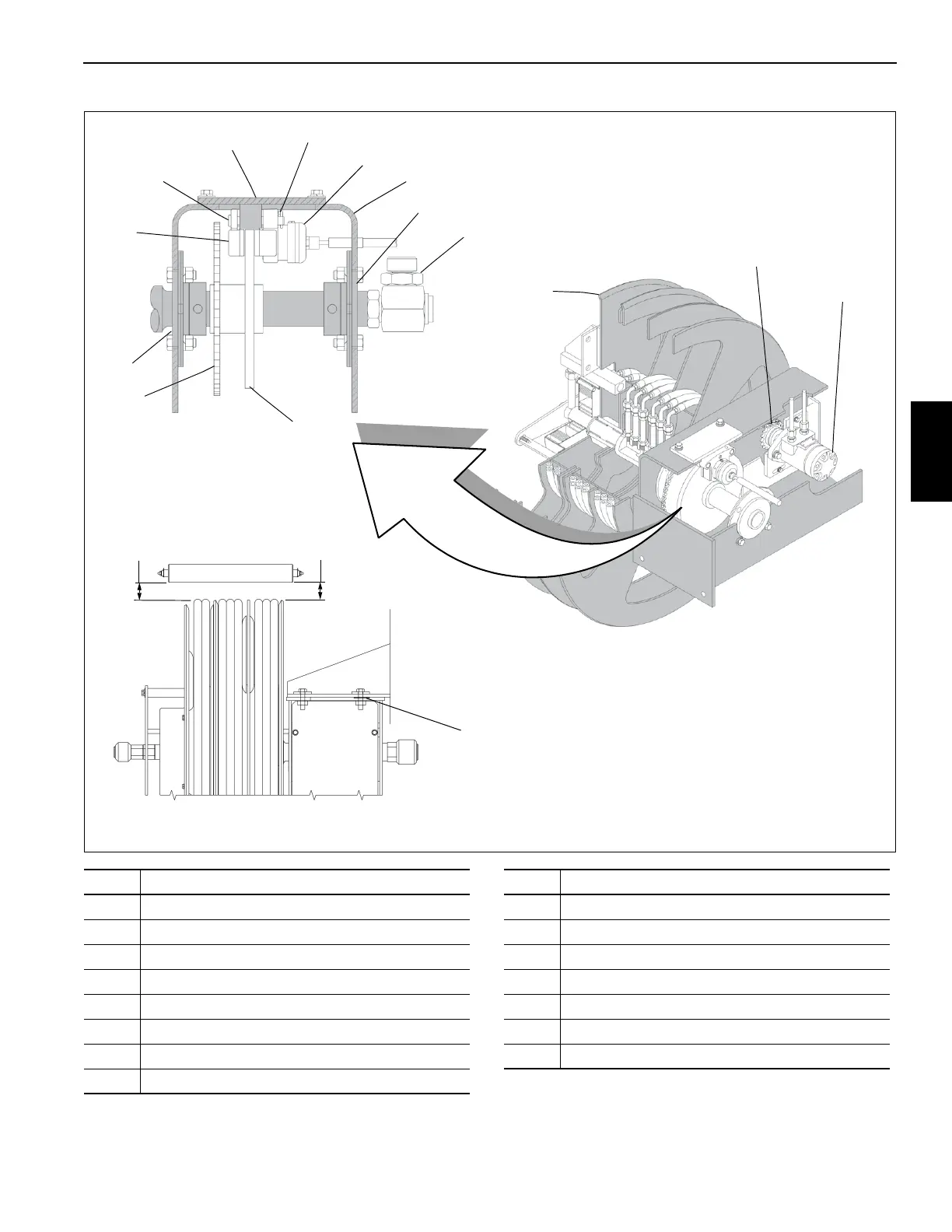

FIGURE 4-7
5
4
3
2
1
6
7
8
9
10
13
11 14
12
Hose Reel Alignment
15
0.09 in
(2.2 mm)
0.09 in
(2.2 mm)
6693
Item Description
1 Sprocket
2 Bearing
3Brake
4 Clevis Pin
5 Brake mount
6 Cotter Pin
7 Boot
8 Housing
Item Description
9Bearing
10 Swivel Joint
11 Hose Reel
12 Disk
13 Chain
14 Orbit Motor
15 Shims
