CHARGING & STARTING SYSTEM
Page 2B-24 90-883728 JULY 2001
Troubleshooting the Starter Circuit (Centrifugal Bendix)
Before beginning the troubleshooting flow chart, verify the following conditions:
1. Battery is fully charged.
2. Control lever is in “NEUTRAL” position.
3. Check terminals for corrosion and loose connections.
4. Check cables and wiring for frayed and worn insulation.
5. Check 20 amp fuse.

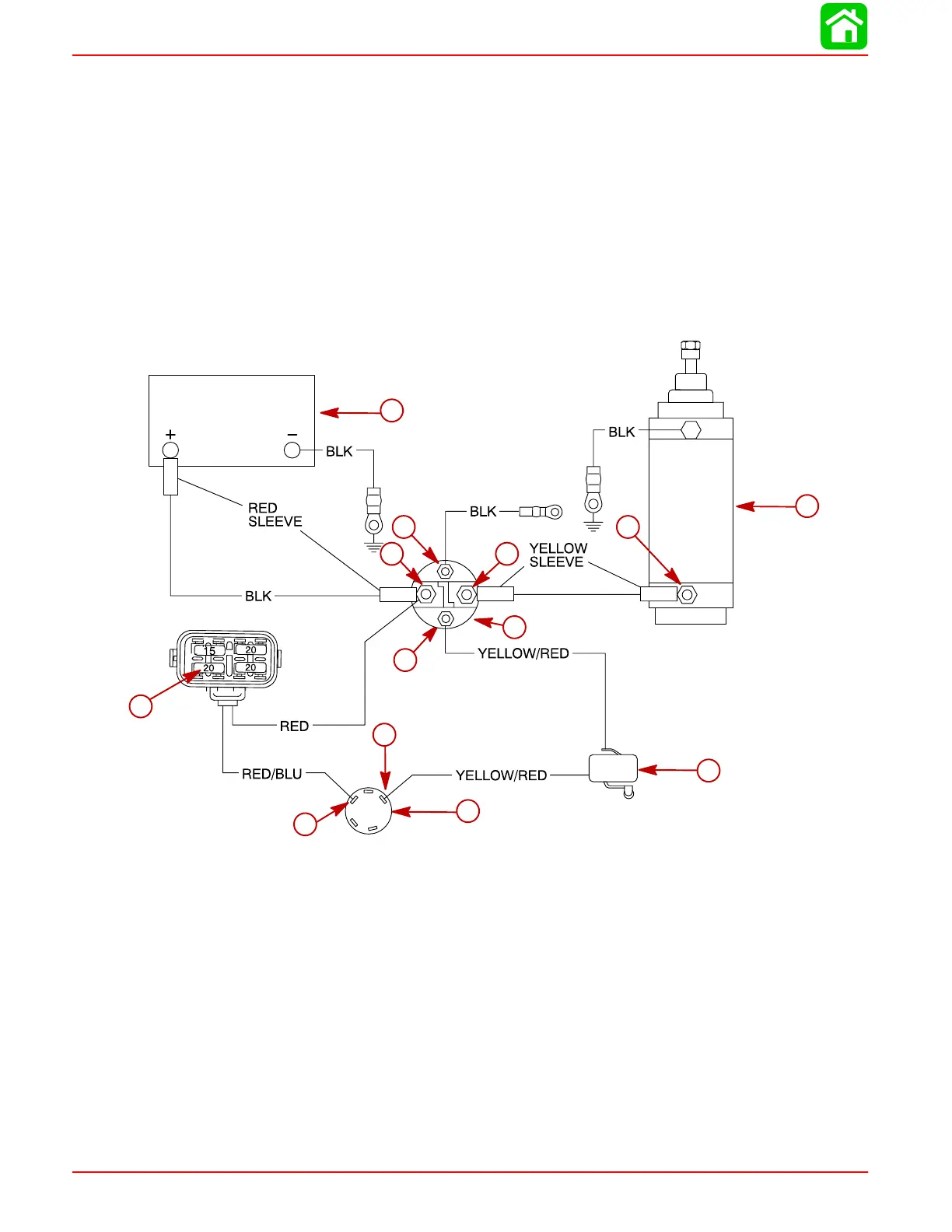

NOTE: Location of test points (called out in flow chart) are numbered below.
b
f
58064
6
2
1
7
3
c
5
4
d
a
e
a-Starter Solenoid
b-Starter
c-Neutral Start Switch
d-Ignition Switch
e-20 Ampere Fuse
f-Battery
To Next Page
