Mercury 200 EFI User Manual

WIRING DIAGRAMS
90-883728 JULY 2001 Page 2D-23

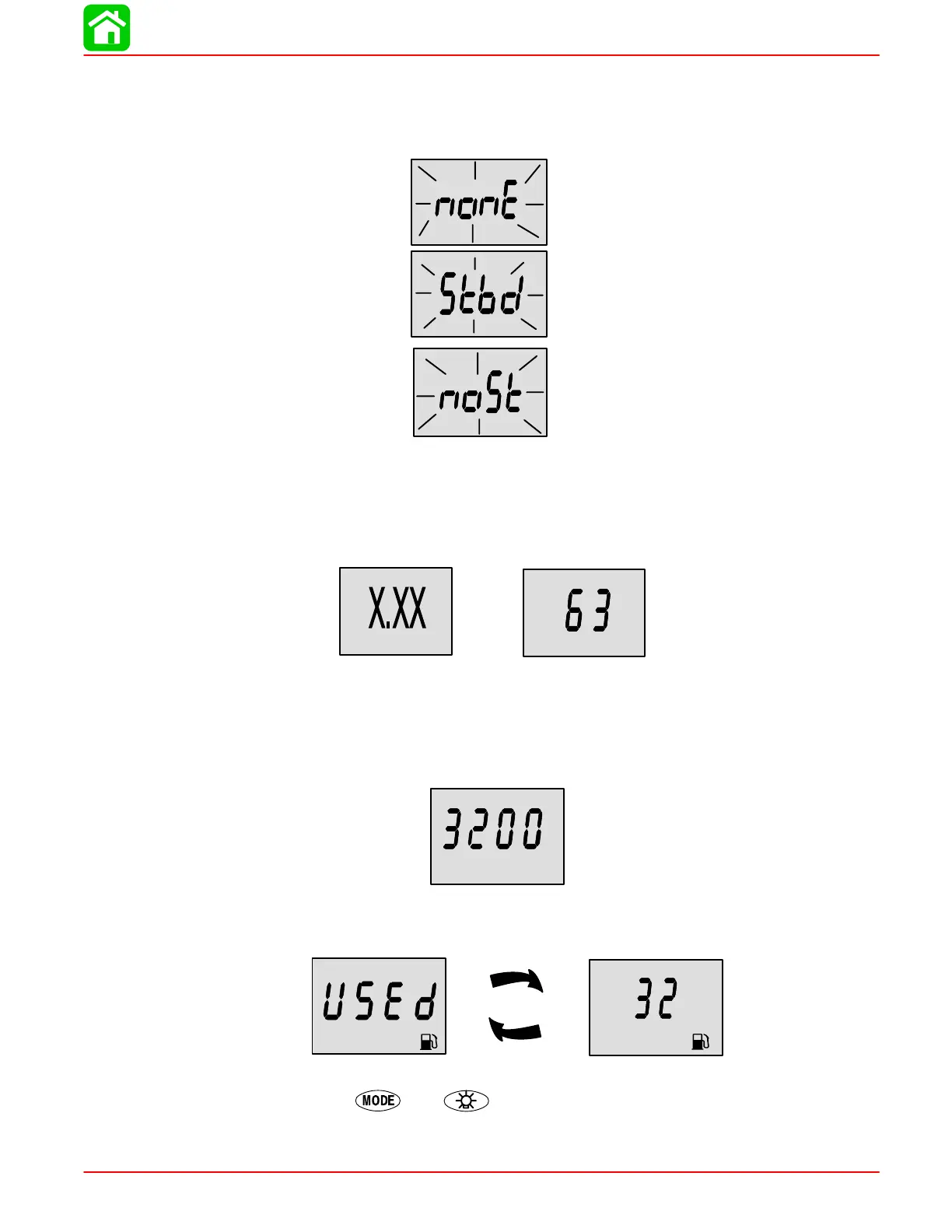

NOTE: If you see the flashing message, (A) “nonE” after the Auto–detection occurs, the
gauge can not find an engine. Please check wiring for correct connection. If you receive one
of the following other flashing messages: (B) “Stbd”or, (C) “noSt” refer to the “Set–Up Errors
Section”.
A)
B)
C)
Standard Information Display Screens
START UP SCREEN
At power up, a momentary (1 second) screen displays the current System Monitor software
version, followed by a 4 second display showing hours of engine use.
Hrs
NOTE: NOT ALL SCREENS MAY APPLY TO YOUR ENGINE TYPE.
NOTE: Screens can be turned on/off in Cal1. Refer to the Cal1 calibration section for details.
RPM SCREEN
Tachometer – Displays engine speed in Revolutions Per Minute (RPM).
RPM
FUEL USED SCREEN
The System Monitor displays approximate fuel used since the last reset.
Gal
Gal
Fuel Used Reset will return display back to 0. You can preform a Fuel Used Reset any-
time by pressing
and buttons together momentarily.
